Quick Details
-
Weight:
-
800 kg
-
Production Capacity:
-
100%
-
Power:
-
2.0KW, 2.0KW
-
Dimension(L*W*H):
-
4000*1100*1750mm
-
Model:
-
SHWA2-100x2500
-
Working Pressure:
-
0.5-0.8Mpa
-
Welding Height:
-
110mm
-
Welding Size:
-
3500mm
Quick Details
-
Marketing Type:
-
Hot Product
-
Brand Name:
-
SAINT-FECO
-
Voltage:
-
380V,50HZ,3PH(Or as customers' request), 220V/50HZ
-
Weight:
-
800 kg
-
Production Capacity:
-
100%
-
Power:
-
2.0KW, 2.0KW
-
Dimension(L*W*H):
-
4000*1100*1750mm
-
Model:
-
SHWA2-100x2500
-
Working Pressure:
-
0.5-0.8Mpa
-
Welding Height:
-
110mm
-
Welding Size:
-
3500mm

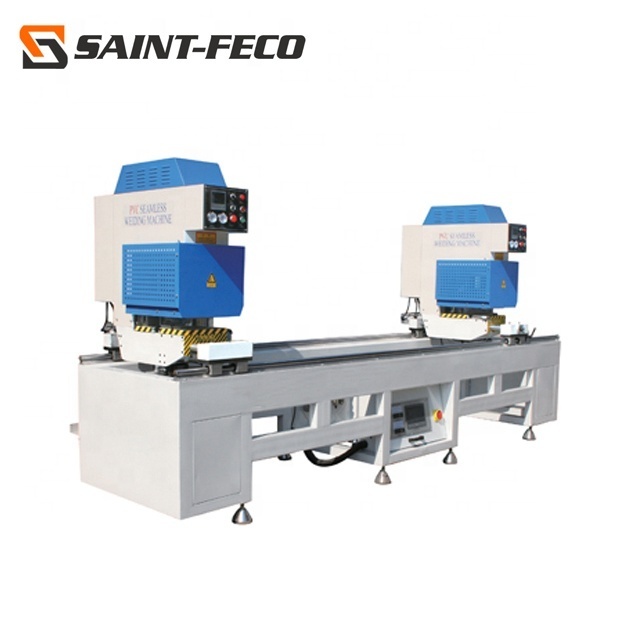

Products Description
Features:
1.This machine is used for welding color and white PVC profiles.
2.It has cleaning cutter, can clean the upper and down surface after welding automatically, welding seam is only 0.2mm
3.The machine adopts PLC to control, to guarantee smoothly running and stability
4.Second-time pressing function, to guarantee welding strength
5.Professional fixtures for profiles, to guarantee good welding and corner cleaning quality
6.Backward and forward pressing plate to adjust independently, to improve welding flatness.
7.The double head can be working linkage, independently.
Product Paramenters
|
Model
|
SHWA2-100x2500
|
|
Voltage
|
220V/50HZ
|
|
Power
|
2.0KW
|
|
Working Pressure
|
0.5-0.8Mpa
|
|
Air Consumption
|
200L/min
|
|
Welding Height
|
20-130mm
|
|
Welding Width
|
110mm
|
|
Welding Size
|
3500mm
|
|
Dimension
|
4000×1100×1750mm
|
