Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
- Product Details
- {{item.text}}
Quick Details
-
maximum output current:
-
0.5A
-
Tester set sampling rate:
-
10~20KHz
-
Transition resistance measuring scope:
-
0~40Ω
-
Power supply:
-
220V±10% power:200W
-
Weight:
-
20kg
-
Maximum save time of single waveform:
-
6.4s
-
Measuring precision:
-
10%
-
Size:
-
410mmx320mmx260mm
-
Maximum sampling rate:
-
400KHz
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Top
-
maximum output current:
-
0.5A
-
Tester set sampling rate:
-
10~20KHz
-
Transition resistance measuring scope:
-
0~40Ω
-
Power supply:
-
220V±10% power:200W
-
Weight:
-
20kg
-
Maximum save time of single waveform:
-
6.4s
-
Measuring precision:
-
10%
-
Size:
-
410mmx320mmx260mm
-
Maximum sampling rate:
-
400KHz

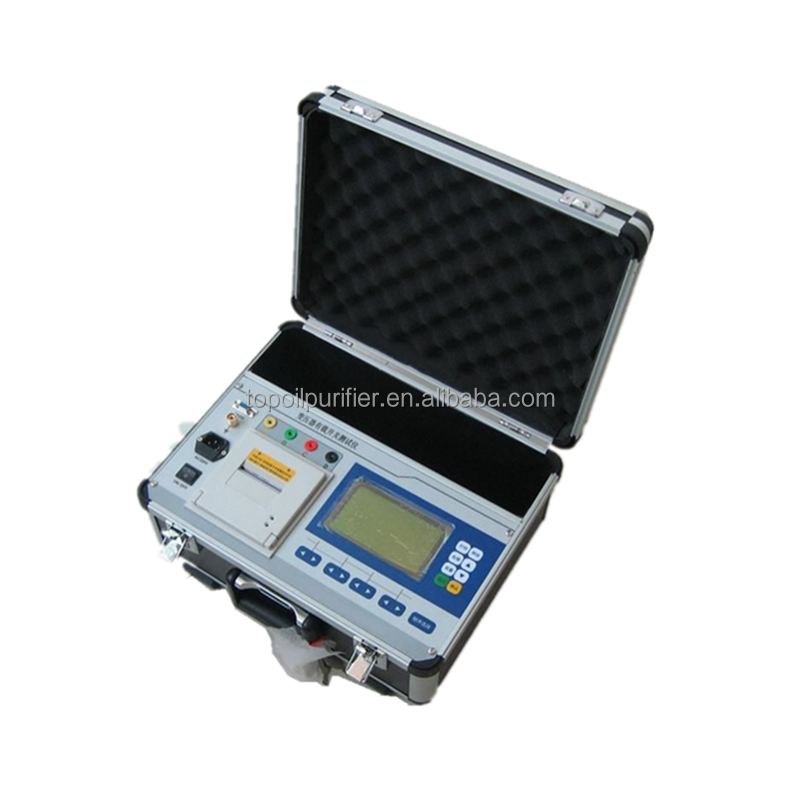

Transformer On-Load Voltage Regulation Switch Tester OLTC-2000
The tester can record switch operation waveform in overall process. The longest time is 6.4s.It can test various parameters such as transition waveform, transition time, transition resistance and three phase synchronization one time and analyze results automatically. It has power-off protection, over-voltage protection, perpetual clock and high-speed printing.
|
maximum output current
|
0.5A.
|
|
Processing part
|
80C320 high speed 8 digit microprocessor High speed A/D converter
|
|
Tester set sampling rate
|
10~20KHz
|
|
Maximum save time of single waveform
|
6.4s
|
|
Transition resistance measuring scope
|
0~40Ω
|
|
Measuring precision
|
≦10%
|
|
Power supply
|
220V±10% power:200W
|
|
Size
|
410mmx320mmx260mm
|
|
Weight
|
20kg
|
|
Maximum sampling rate
|
400KHz
|
1.
1.Fully Automatic Karl Fischer Water Content Tester
TP-2100
2.
Digital Karl Fischer Water Content Tester TP-6A
3.
Kinematic Viscosity Tester VST-2000
4.
Kinematic Viscosity Tester TPV-8
5.
Kinematic Viscosity Tester VST-3000
6.
Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.
Fully Automatic Surface/Interface Tension Tester IT-800
8.
Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.
Fully Automatic Open Cup Flash Point Tester TPO-3000
10.
Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.
Digital Open Cup Flash Point Tester TPO-100
12.
Digital Closed Cup Flash Point Tester TPC-100
13.
Cloud Point & Pour Point Tester PT-2000
|
MOQ
|
1 Set
|
|
Trade Terms
|
EXW, FOB, CIF, CFR
|
|
Payment Terms
|
T/T, L/C
|
|
Port of Loading
|
Any Port of China
|
|
Packing Method
|
Internaional Standard Wooden Case
|
|
Transportation Method
|
By Sea, By Land, By Air, By Express
|
|
Supply Capability
|
100 Sets/Month
|
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
