Quick Details
-
Spindle Taper:
-
MT3 MT4 or R8
-
Range of Spindle Speed(r.p.m):
-
530 - 2800 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
WMTCNC
-
Model Number:
-
ZAY7045V/1
-
Table Travel (mm):
-
175x500mm
-
Year:
-
brand new/2019
-
Spindle Motor Power(kW):
-
1.5
-
Voltage:
-
220V/240V/380V
-
Dimension(L*W*H):
-
770X880X1160mm
-
Weight (KG):
-
370
-
Marketing Type:
-
Hot Product 2023
-
CNC or Not:
-
Normal
-
Function:
-
Spindle auto feeding
-
Keywords:
-
Drilling and Milling Machine
-
After Warranty Service:
-
Online support
-
Spindle taper:
-
MT3 MT4 or R8
-
Precision:
-
High Precision High Accuracy for Sale
-
Color:
-
Customized Option
-
After-sales Service Provided:
-
Video technical support
-
Package:
-
Plywood Case
Quick Details
-
Table Travel (X) (mm):
-
500
-
Table Travel (Y) (mm):
-
175
-
Table Travel (Z) (mm):
-
130 mm
-
Spindle Taper:
-
MT3 MT4 or R8
-
Range of Spindle Speed(r.p.m):
-
530 - 2800 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
WMTCNC
-
Model Number:
-
ZAY7045V/1
-
Table Travel (mm):
-
175x500mm
-
Year:
-
brand new/2019
-
Spindle Motor Power(kW):
-
1.5
-
Voltage:
-
220V/240V/380V
-
Dimension(L*W*H):
-
770X880X1160mm
-
Weight (KG):
-
370
-
Marketing Type:
-
Hot Product 2023
-
CNC or Not:
-
Normal
-
Function:
-
Spindle auto feeding
-
Keywords:
-
Drilling and Milling Machine
-
After Warranty Service:
-
Online support
-
Spindle taper:
-
MT3 MT4 or R8
-
Precision:
-
High Precision High Accuracy for Sale
-
Color:
-
Customized Option
-
After-sales Service Provided:
-
Video technical support
-
Package:
-
Plywood Case
Products Description
Main Features:
1. Variable speed.
2. Milling, drilling, tapping, boring and reaming.
3. Head swivels ±45° vertically.
4. Micro feed precision.
5. Adjustable gibs on table precision.
6. Strong rigidity, powerful cutting and precise positioning.
|
Specification
|
ZAY7032V/1 ZAY7040V/1 ZAY7045V/1
|
|
Max. drilling capacity
|
32mm/40mm/45mm
|
|
Max. tapping capacity
|
20mm
|
|
Max. face mill capacity
|
63mm/80mm/80mm
|
|
Max. end mill capacity
|
20mm/32mm/32mm
|
|
Max. distance from spindle nose to table
|
450mm
|
|
Min. distance from spindle axis to column
|
260mm
|
|
Spindle travel
|
130mm
|
|
Spindle taper
|
MT3 MT4 or R8
|
|
Range of spindle speed(2 steps)
|
100-530, 530-2800rpm
|
|
Auto-feeding steps of spindle
|
3
|
|
Auto-feeding value of spindle
|
0.06-0.30mm/r
|
|
Swivel angle of headstock
|
±45°
|
|
Table size
|
800×240mm
|
|
Forward and backward travel of table
|
175mm
|
|
Left and right travel of table
|
500mm
|
|
Motor power(D.C)
|
1.5kw(2HP)
|
|
N.W/G.W
|
325/375kgs
|
|
Packing size(LxWxH)
|
770×880×1160mm
|
|
Loading amount/20" container
|
36pcs
|

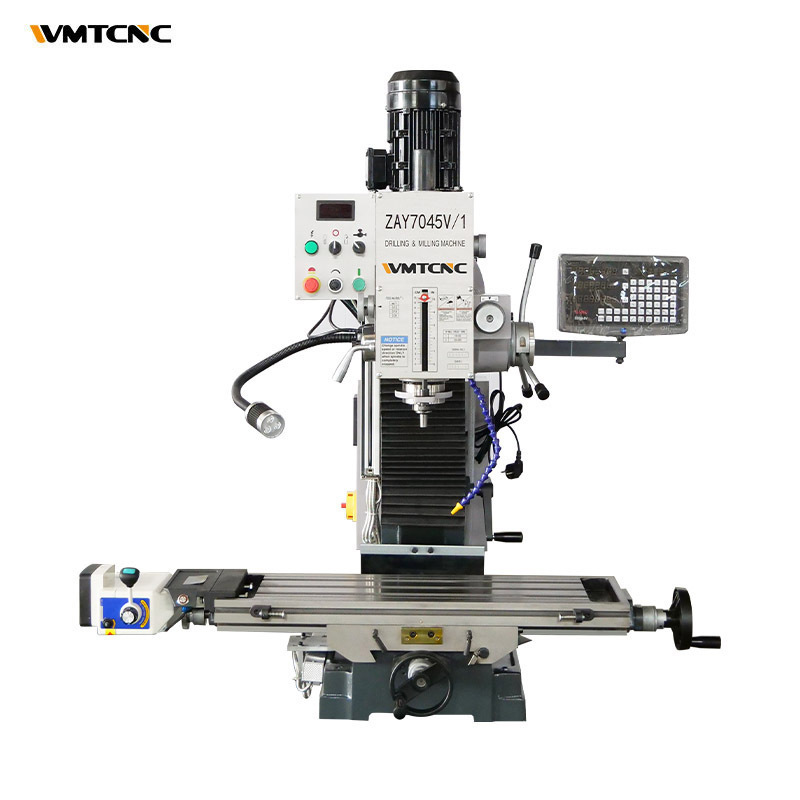

Detailed Images
