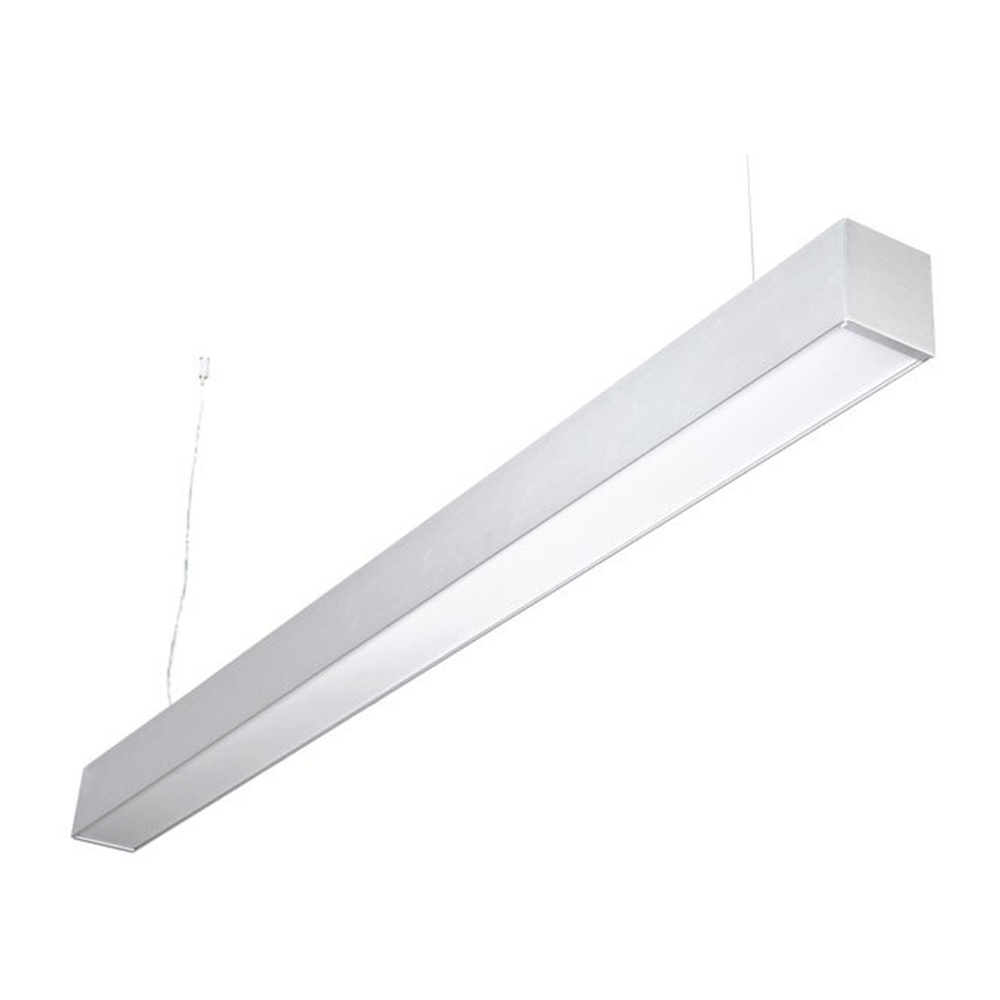

1.2m 40w LED linear light pendant office led linear batten light fixtures for indoor
1.2m 40w LED linear light pendant office led linear batten light fixtures for indoor
1.2m 40w LED linear light pendant office led linear batten light fixtures for indoor
1.2m 40w LED linear light pendant office led linear batten light fixtures for indoor
1.2m 40w LED linear light pendant office led linear batten light fixtures for indoor
1.2m 40w LED linear light pendant office led linear batten light fixtures for indoor
1.2m 40w LED linear light pendant office led linear batten light fixtures for indoor
1.2m 40w LED linear light pendant office led linear batten light fixtures for indoor

1.2m 40w LED linear light pendant office led linear batten light fixtures for indoor

FOB Reference Price: Get Latest Price
≥1 Pieces
US $31.9
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
Office
Color Temperature(CCT):
3000K, 4000K,, 6000K
Color Rendering Index(Ra):
83
Product Weight（kg）:
3
Type:
Straight linear shape
Model Number:
ON-7575D-1.2M
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Beam Angle(°):
120
Light Source:
LED
CRI (Ra>):
83
IP Rating:
IP20, IP20 for indoor only
Dimension:
0.6M, 1.2M, 1.5M, 1.8M, 2.4M
Product name:
Suspended LED linear profile light
Material:
Aluminum profile and opal PC
Input voltage:
AC110V, AC220V
Wattage:
40W
Control options:
on/off, 0~10V dimmable, Dali dimmable, Triac dimmable
Light color options:
3000K, 4000K, 6000K
Housing color options:
Black, White, Silver
Product launch time:
Year 2018

Quick Details

Lamp Luminous Efficiency(lm/w):
100lm/w
Warranty(Year):
5-Year
Lamp Body Material:
Aluminum profile housing
Application:
Office
Color Temperature(CCT):
3000K, 4000K,, 6000K
Color Rendering Index(Ra):
83
Product Weight（kg）:
3
Type:
Straight linear shape
Model Number:
ON-7575D-1.2M
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Beam Angle(°):
120
Light Source:
LED
CRI (Ra>):
83
IP Rating:
IP20, IP20 for indoor only
Dimension:
0.6M, 1.2M, 1.5M, 1.8M, 2.4M
Product name:
Suspended LED linear profile light
Material:
Aluminum profile and opal PC
Input voltage:
AC110V, AC220V
Wattage:
40W
Control options:
on/off, 0~10V dimmable, Dali dimmable, Triac dimmable
Light color options:
3000K, 4000K, 6000K
Housing color options:
Black, White, Silver
Product launch time:
Year 2018
Product Description
Series 75x75mm LED linear light, has 5 available lengths to choose, they are 0.6m, 1.2m, 1.5m, 1.8m, 2.4m.
And the lamps is connectable, it is allowed to connect long straight light such as 3m, 6m, 12m, 20m, 30m, etc.

Hanging accessory

With the moveable brackets mounted on the housing back, it is able to adjust the ceiling hole postion expediently. We supply 1.5meter long hanging rope, mounting height is adjustable between 10~150cm from ceiling.

Extrusion opal PC cover

Opal PC cover is exactly recessed in housing profile, 86% transmittance, with aluminum endcap there is no light leakage, the whole surface is lighting uniformly.
There is no visiable screws on end-cap, we have designed it with screws on the top, nice looking.
Detailed Images






The lamp profile size is 75mm x 75mm.
Product Advantage: the back metal coveri is able to take down, very easy to maintain and wiring and connecting.
Branded power driver is built-in, stable and flicker-free. When taking photos or video, there is no screen flickering.
LED PCB board as light source, has very good heat dissipation, to make sure long lifespan above 50000 hours.
Product Paramenters
Item Number
Dimension
Power
Shell Color
Light color
Other spec
ON-7575D-0.6M
L600xW75xH75mm
20W
White
Black
Silver
3000K
4000K
6000K
100lm/w,
CRI>83,
PF>0.95,
LED PCB board,
FLICKER-FREE
ON-7575D-1.2M
L1200xW75xH75mm
40W
ON-7575D-1.5M
L1500xW75xH75mm
50W
ON-7575D-1.8M
L1800xW75xH75mm
60W
ON-7575D-2.4M
L2400xW75xH75mm
80W
Installation Instructions
There are 3 mounting options.
Wall mounting : it is allowed to install on wall, as a linear wall light.
Ceiling surface mounting : directly mount on ceiling, suitable for low ceiling height.
Suspended mounting : the most popular mounting, hang by steel rope. suitable for most projects.
( Trimless recessed mounting is also allowed, please contact our sales for more details if needed).
Product Application
Apply to shopping mall, commercial office, school, meeting room, retail store, car display center, bank, hospital, residence, lobby, hotel, garage, warehouse, other indoor places, etc.
Packing&Shipping
