Quick Details
-
Brand Name:
-
MWLED
-
Model Number:
-
LS5050-rgb2811
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
DC12V
-
Lamp Luminous Flux(lm):
-
22-24lm/led
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-15 - 65
-
Product Weight（kg）:
-
0.1
-
Color:
-
Color Changing
-
LED Type:
-
5050 RGB
-
Warranty:
-
3years
-
PCB Color:
-
White PCB
-
Product Name:
-
SMD5050 Flexible LED Strip
-
Voltage:
-
Dc12v/24v
-
LED QTY:
-
30/60pcs per meter
Quick Details
-
Color Temperature(CCT):
-
3500K (Warm White)
-
Control Mode:
-
Touch Control, APP Control, Remote Control, Switch Control, Voice control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MWLED
-
Model Number:
-
LS5050-rgb2811
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
DC12V
-
Lamp Luminous Flux(lm):
-
22-24lm/led
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-15 - 65
-
Product Weight（kg）:
-
0.1
-
Color:
-
Color Changing
-
LED Type:
-
5050 RGB
-
Warranty:
-
3years
-
PCB Color:
-
White PCB
-
Product Name:
-
SMD5050 Flexible LED Strip
-
Voltage:
-
Dc12v/24v
-
LED QTY:
-
30/60pcs per meter

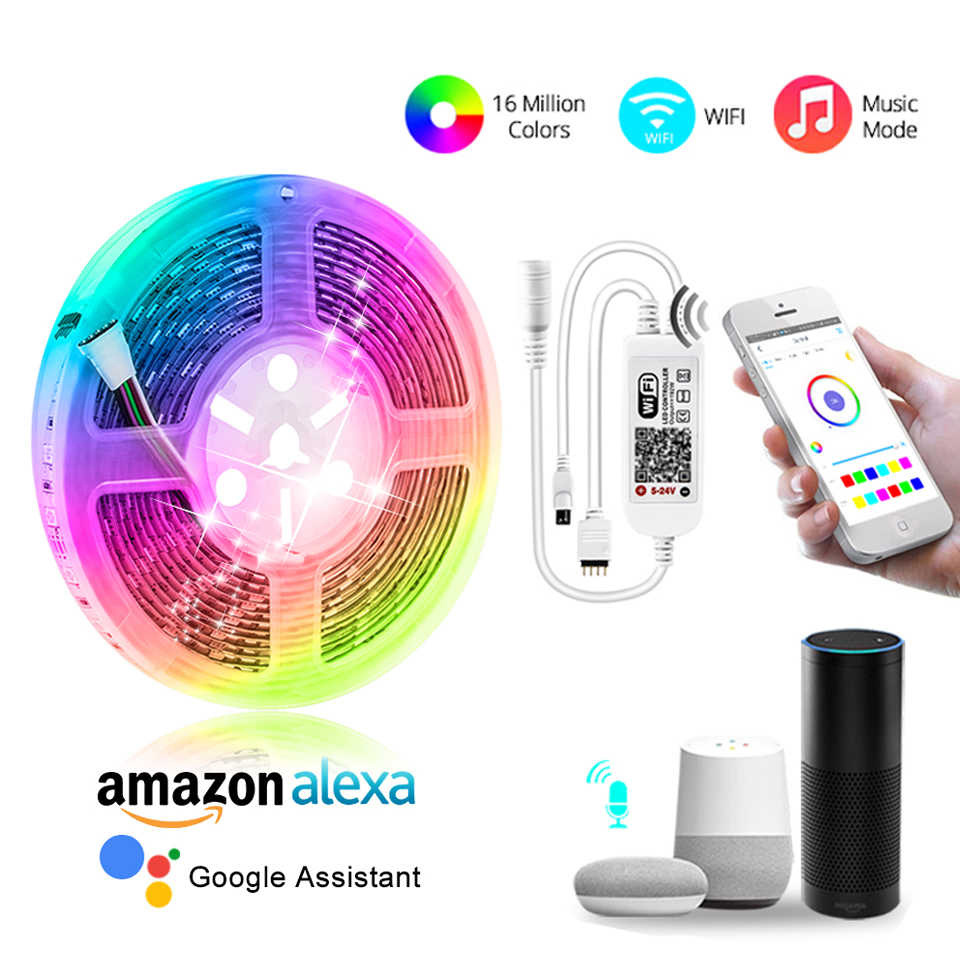

Ip65 Waterproof 5M 300Leds 5050 Smd Rgb Flexible Led Strip Light
Key Features:
1. LED Type: 5050 SMD /3528
2. Color: RGB
3. LED quantity: 150LED or 300LED per 5M
4. Protection class:Non Waterproof or Waterproof both can be offered
5. Operating voltage: DC 12V
6. Working Current:: 3A for 150LED and 5A for 300LED
7. Output power:36W for 150LED and 72W for 300LED
8. Viewing Angle: 120 °
9. Operating temperature: -20 to 50 °
10. Size: L500cm (5M) × W1.00cm x T0.25cm
11. Source life: > 50,000 hours
WiFi Wireless LED Smart Controller
1.Working Voltage: DC9-12V
2.Output channel: Can be used 3 channel
3.Output current: RGB: 4A*3
4.Connect method:Common anode
5.Dimension: L17.6*W2.2*H0.9mm, Remote Control Distance: 20m at Outdoor
6.Connect way:V+,R,G,B for LED Light, V+,V- for Power supply, ANT for WIFI Signal Reception.
Product Functions:
1. 16 Million Colors
2. Smartphone Control
3. Sync Control by Group
4. Custom mode
5. Timer Mode
6. Kickstart your party
7. Light Dancing with Music
8. Save Favourite Colors
9. Remote control by Intenet
DATASHEET OF rgb led strip light
| Optical Parameter | |
| Color | RGB |
| Power | 14.4W/M(4.32W/ft) |
| LED Quantity | 60LEDs/M |
| Voltage | DC12V |
| Current | 1.2A/M |
| Lumen | 2800lm/M(854lm/ft) |
| CCT | RGB |
| CRI | >80 >90 |
| Waterproof | IP33 non- waterproof |
| View Angle | 120° |
| Measurement | 196.85"Lx0.47"W*0.06"H |
| Cuttable | 50mm/1.66ft(3LEDs) |
| Adhesive | 3M 300LSE |
| Temperature | -4°F (-20℃)~ 113°F(45℃) |
| Lifetime | 30,000h |
| Warranty | 3years |
IP65 Waterproof:
What is the difference between IP65, IP67 & IP68?
The differences between commonly sold IP65, IP67, & IP68 strips are slight, but very important. Using the above chart as a guide, we can see that all strips are protected at the highest level from solids and dust. The variations come with the protection against liquids.
IP65 = Water resistant. “Protected against water jets from any angle” *Do NOT submerge IP65 LED lights, these are not waterproof.
IP67 = Water resistant plus. “Protected against the events of temporary submersion (10 minutes)”*Do NOT submerge IP67 LED lights for extended periods, these are not waterproof.
IP68 = Waterproof “Protected against the events of permanent submersion up to 3 meters”
Packing info: one roll in a anti-static bag
Conton size: 52*27*25cm
Qty: 80 bags for ip20
Gross weight: 7.5kgs
