Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
3350*1720*2150 mm
-
Machine Weight:
-
3000 kg
-
Bucket capacity:
-
0.4-0.5 cbm
-
Marketing Type:
-
New Product 2023
-
Product name:
-

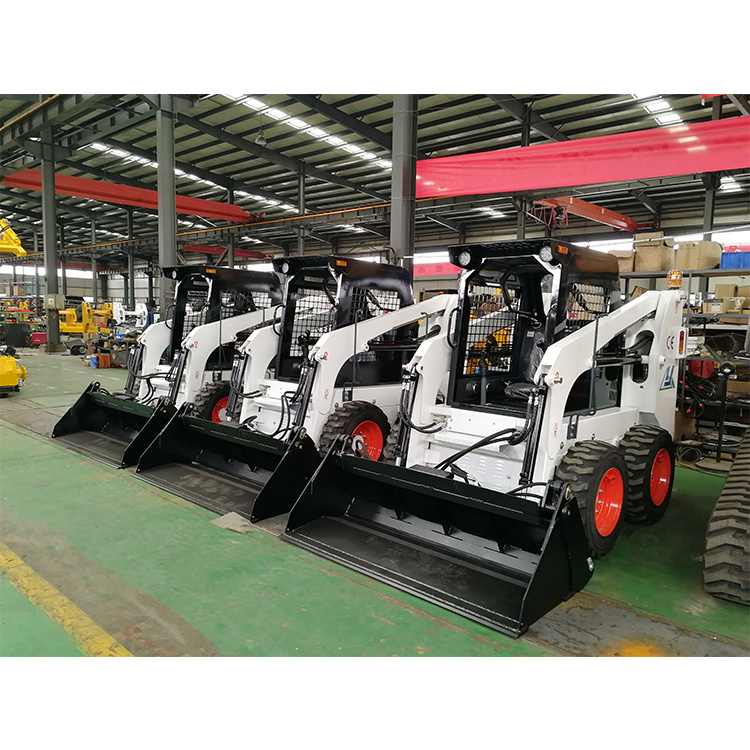

Mini Skid Steer Loader
-
Model:
-
JC45
-
Tipping load:
-
1400kg
-
Rated operating capacity:
-
700kg
-
Max. travel speed:
-
12 km/h
-
Hydraulic pump flow:
-
75 L/min
-
Fuel tank capacity:
-
70L
-
Tires:
-
10-16.5NHS
-
Drive type:
-
Hydraulic Drive
-
Color:
-
Customer's Requiement
Quick Details
-
Engine Brand:
-
Xinchai C490BPG
-
Power:
-
51hp/2500rpm
-
Brand Name:
-
Tonlita
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
3350*1720*2150 mm
-
Machine Weight:
-
3000 kg
-
Bucket capacity:
-
0.4-0.5 cbm
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mini Skid Steer Loader
-
Model:
-
JC45
-
Tipping load:
-
1400kg
-
Rated operating capacity:
-
700kg
-
Max. travel speed:
-
12 km/h
-
Hydraulic pump flow:
-
75 L/min
-
Fuel tank capacity:
-
70L
-
Tires:
-
10-16.5NHS
-
Drive type:
-
Hydraulic Drive
-
Color:
-
Customer's Requiement
Product Description
* Bucket automatic leveling ability
* Double handles control loading and traveling, easy & reliable operating
* Double handles control loading and traveling, easy & reliable operating
Optional Configuration
High flow hydraulic system
Solid tires
Air conditioner
Low temperature cold start
Heater
Specification
|
Specifications
|
|
|
Rated operating capacity(kg)
|
700
|
|
Tipping load(kg)
|
1400
|
|
Bucket capacity(m3)
|
0.4-0.5
|
|
Operating weight(kg)
|
3000
|
|
Max. travel speed(km/h)
|
12
|
|
Hydraulic pump flow(L/min)
|
75
|
|
Fuel tank capacity(L)
|
70
|
|
Tires
|
10-16.5NHS
|
|
Overall dimensions(mm)
|
3350×1720×2150
|
|
Dimensions
|
|
|
Height at maximum extension(mm)
|
3980
|
|
Height to bucket hinge pin(mm)
|
3080
|
|
Width with bucket(mm)
|
1730
|
|
Track width(mm)
|
1450
|
|
Wheelbase(mm)
|
991
|
|
Ground clearance(mm)
|
180
|
|
Dump angle
|
30°
|
|
Dumping height(mm)
|
2380
|
|
Rollback at ground
|
26°
|
|
Angle of departure
|
20°
|
|
Engine
|
|
|
Maker/Model
|
Xinchai 490
|
|
Net power
|
51hp/2500rpm
|
|
Type
|
4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
|
|
Displacement(L)
|
2.7
|
|
Standard
|
|
|
Standard bucket
|
Hand control system(Mechanical type)
|
|
Enclosed operator cab
|
Auxiliary hydraulic couplers
|
|
Optional
|
|
|
Air conditioner
|
Preheat starting assist system for extreme cold weather
|
|
Cab fitted with a heater as standard
|
|
