Quick Details
-
Model Number:
-
APS-AER
-
Model:
-
APS-AER
-
Name:
-

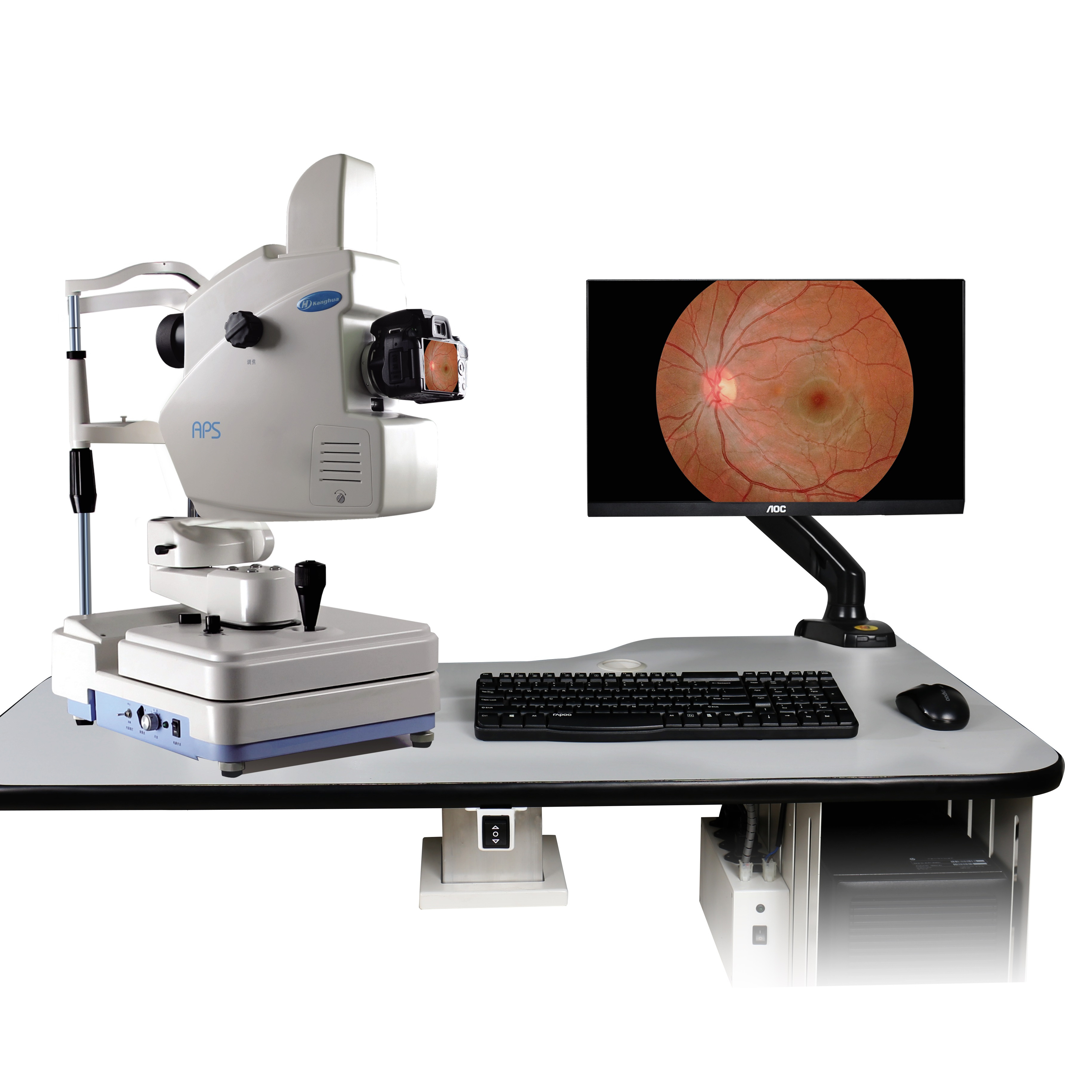

FUNDUS CAMERA
-
Band:
-
KANGHUA
-
MOQ:
-
1
-
Size:
-
705*600*300
-
GW:
-
60KG
-
Delivery date:
-
5 WORKING DAY
-
Field of View:
-
Up to 53°
-
Non-mydriatic:
-
Yes
-
Alignment:
-
Two dots
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
KANGHUA
-
Model Number:
-
APS-AER
-
Model:
-
APS-AER
-
Name:
-
FUNDUS CAMERA
-
Band:
-
KANGHUA
-
MOQ:
-
1
-
Size:
-
705*600*300
-
GW:
-
60KG
-
Delivery date:
-
5 WORKING DAY
-
Field of View:
-
Up to 53°
-
Non-mydriatic:
-
Yes
-
Alignment:
-
Two dots
Product Description
|
Product Features
|
|
|
|
|
Model
|
APS-AER (Model A)
|
APS-AER (Model B)
|
|
|
Camera Brand And Model
|
D5300
|
D5300
|
|
|
Camera Resolution
|
24.1 Mega Pixel
|
24.1 Mega Pixel
|
|
|
Function
|
Color fundus
|
Color fundus
|
|
|
Lens Type
|
Aspherical
|
Aspherical
|
|
|
Field Of View
|
Up to 53°
|
Up to 53°
|
|
|
Non-Mydriatic
|
Yes
|
Yes
|
|
|
Minimum Pupil Size
|
3.3mm
|
3.3mm
|
|
|
FFA
|
|
|
|
|
Light Source
|
Infrared LED
|
Infrared LED
|
|
|
Diopter Compensation
|
≥ ±15D
|
≥ ±15D
|
|
|
Fixation Lamp
|
External fixation lamp + five internal fixation lamp
Nine internal fixation lamp (optional) |
External fixation lamp + five internal fixation lamp
Nine internal fixation lamp (optional) |
|
|
Alignment
|
Two dots
|
Two dots
|
|
|
Focus Mode
|
Auto focus & Manual focus
|
Auto focus & Manual focus
|
|
|
Exposure Mode
|
Auto flash & Manual flash
|
Auto flash & Manual flash
|
|
|
Dicom3.0
|
Optional
|
Optional
|
|
|
Eye Position Identification
|
Auto
|
Auto
|
|
|
Optic Angle
|
Horizontal ± 30, Vertical ± 12.5
|
|
|
|
Working Distance
|
42mm ± 2mm
|
42mm ± 2mm
|
|
|
Mosaic
|
Auto
|
|
|
|
Red-Free
|
YES
|
|
|
Company Introduction
Chongqing Kanghuaruiming Science Technology Co., Ltd.
Established on September 21, 2006. The company's business scope includes: production and sales of medical equipment class II: 6822-4 ophthalmic optical instrument 6821-7 other bioelectric diagnostic equipment; class III: 6823-2 ophthalmic ultrasound special diagnostic equipment, etc.
certificates
Exhibition
Factory Information
Product packaging
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
5. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
