Illuminated pushbutton switch

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Changjiang electric

Model Number:: LA38-**/206A

Material:: flame-retardant plastic

Product name:: LA38 series 22mm economical plastic push button switch

Certification:: CE

Quick Details

Protection Level:: IP65

Max. Current:: 5A

Max. Voltage:: 300V

Place of Origin:: Jiangsu, China

Brand Name:: Changjiang electric

Model Number:: LA38-**/206A

Material:: flame-retardant plastic

Product name:: LA38 series 22mm economical plastic push button switch

Certification:: CE

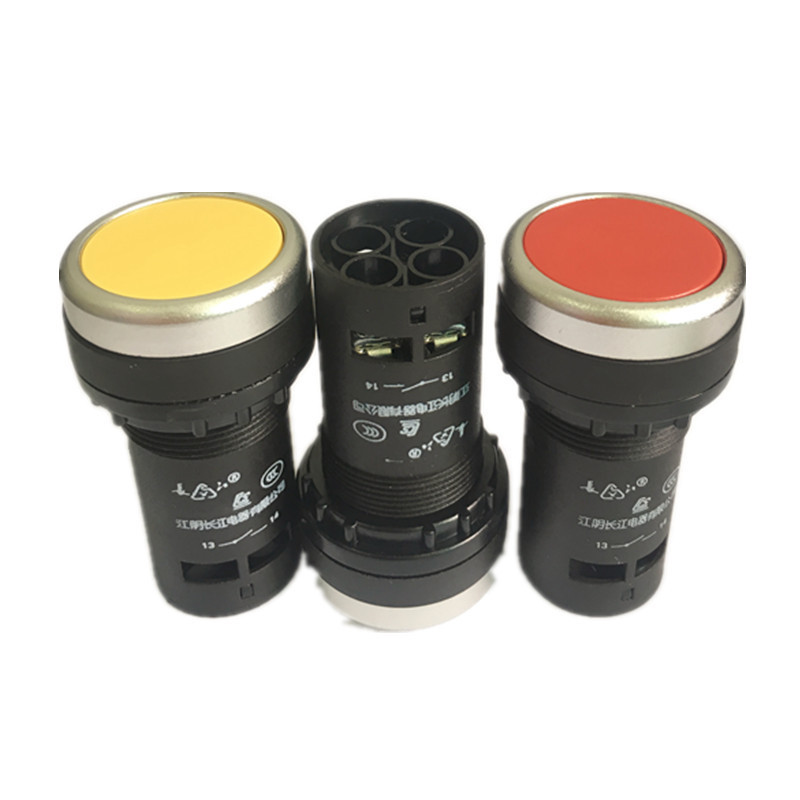

LA38 series 22mm economical plastic push button switch

China Shanghai institute of electrical science carried out a strict full set type tests for our push button switch products.Products are identified by the experts in the industry.Finally we got the LA38 product model in October 17, 1996 . When you are purchasing, please identify the LA38 series button switch produced by Jiangyin Changjiang electric appliance co.,ltd

Outline Size of mounding hole

Specifications

Type specification		LA38-**/206A
Name		Push button switch,Knob
Products Standard		GB14048.5-2008
Operation Condition	Altitude height		Environment temperature	Storage temperature	Relative humidity			Pollution class			Install type
	≤2000m		-25℃~+55℃	-40℃~+70℃	≤90%			3			Ⅲ
Main technical index	common parameter		Rated insulated Voltage			300V
			Rated impulse withstand voltage			4000V
			Contact resistance			≥50MΩ
			Front protect class			Push button switch IP65			Knob IP54
			Withstand Voltage			1.89KV/5S
	button parameter		Stipulated hot current Ith			5A
			Contact resistance			≤50mΩ
			Rated working Voltage /Current			AC-15			DC-13
						220V/3A			24V/3A
			Electrical life			Push button switch	500000 times		Knob	100000 times
			Mechanical life			Push button switch	1000000 times		Knob	200000 times
	lamps parameter		Rated working Voltage /Current			None
			Life of signal lamps			None

Certificate

About us

Our company was founded in 1992, it is a strong capital and continuous innovation manufacturer,This enables us to provide the most advanced and competitively priced products and services available today.OEM can also available, Customers' designs are warmly welcome.

Company history

1972-1992 Jiangyin transistor factory

1992-1993 Jiangyin Changjiang electronic industrial company

1993-1996 Jiangyin Changjiang electronic industrial corporation

1997-2002 Jiangyin Changjiang electric appliance Co., Ltd.

Jiangyin Changjiang electronic industry Co., Ltd.

2003- Jiangyin Changjiang electric appliance Co., Ltd.

Department and production line

FAQ

Q:Why choose us?

A:1. We are the professional manufacturer with competitive price ,and lower freight rate and the faster speed delivery.

2.Strict quality control.,and every product is inspected 100% by our QC team before delivery.
