Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jianghao
-
Model Number:
-
JHK-625GF
-
Speed:
-
1500/1800rpm
-
Weight:
-
5200kgs
-
Product Name:
-
with Cummins generator 500kw
-
Diesel engine:
-
Cummins KT38-GA
-
Alternator:
-
Stamford,Marathon,Hengsheng
-
Controller:
-
Deep Sea,ComAp,Smartgen
-
Generator Type:
-
Open,Silent,Super silent,trailer
-
Fuel Tank:
-
10 hours working time
-
Warranty Time:
-
1 Year or 1000 horus whichever comes first
-
Optional:
-
ATS,oil heater,engine heater,Seperator
-
Certificate:
-
CE/ISO9001
-
Starting method:
-
Automatic Start
Quick Details
-
Rated Voltage:
-
220V, 230V, 240V, 380v, 400V, 480V, 400/230V
-
Rated Current:
-
900A
-
Frequency:
-
50/60HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jianghao
-
Model Number:
-
JHK-625GF
-
Speed:
-
1500/1800rpm
-
Weight:
-
5200kgs
-
Product Name:
-
with Cummins generator 500kw
-
Diesel engine:
-
Cummins KT38-GA
-
Alternator:
-
Stamford,Marathon,Hengsheng
-
Controller:
-
Deep Sea,ComAp,Smartgen
-
Generator Type:
-
Open,Silent,Super silent,trailer
-
Fuel Tank:
-
10 hours working time
-
Warranty Time:
-
1 Year or 1000 horus whichever comes first
-
Optional:
-
ATS,oil heater,engine heater,Seperator
-
Certificate:
-
CE/ISO9001
-
Starting method:
-
Automatic Start
Products Description
|

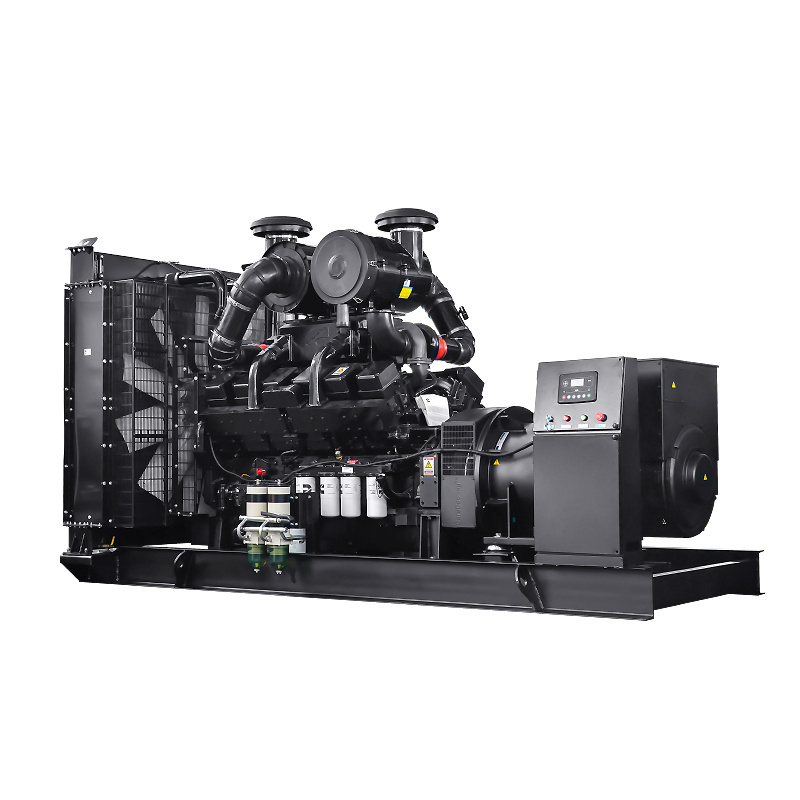

Diesel Generator Details
|
Item
|
|
|
Model
|
JHK-625GF
|
|
|
Power
|
500KW/625KVA
|
|
|
Frequency
|
50/60HZ
|
|
|
Voltage
|
380/220V(Voltage can be customized)
|
|
|
Optional Type
|
Open/Soundproof/Trailer
|
|
|
Size of Open Type
|
4300*1700*2350mm
|
|
|
Weight of Open Type
|
6800kg
|
|
|
Power Engine
|
Max. torque
|
|
|
Brand&Model
|
Cummins KT38-GA
|
|
|
Cyliners
|
12 V Type
|
|
|
Bore*Stroke
|
159*159mm
|
|
|
Displacement
|
38L
|
|
|
Fuel Consumption at 100% Load
|
203g/kw.h
|
|
|
Speed Governor
|
Electronic
|
|
|
Alternator
|
|
|
|
Optional Brands
|
Stamford/Leroy Somer/Marathon
|
|
|
Exciter Type
|
Single bearing, Brushless, Self-excited
|
|
|
Power Factor
|
0.8
|
|
|
Voltage Adjust Range
|
≥5%
|
|
|
Insulation Grade
|
H
|
|
|
Protection Grade
|
IP23
|
|
|
Controller
|
|
|
|
Optional Brands
|
Deep Sea/ComAp/Smartgen
|
|
