Quick Details
-
Input Voltage(V):
-
AC12V/DC12V
-
Lamp Luminous Flux(lm):
-
1700LM
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Birmate
-
Model Number:
-
HG-P56-18W-B(E26-L)-UL
-
Warranty(Year):
-
3-Year
-
Name:
-

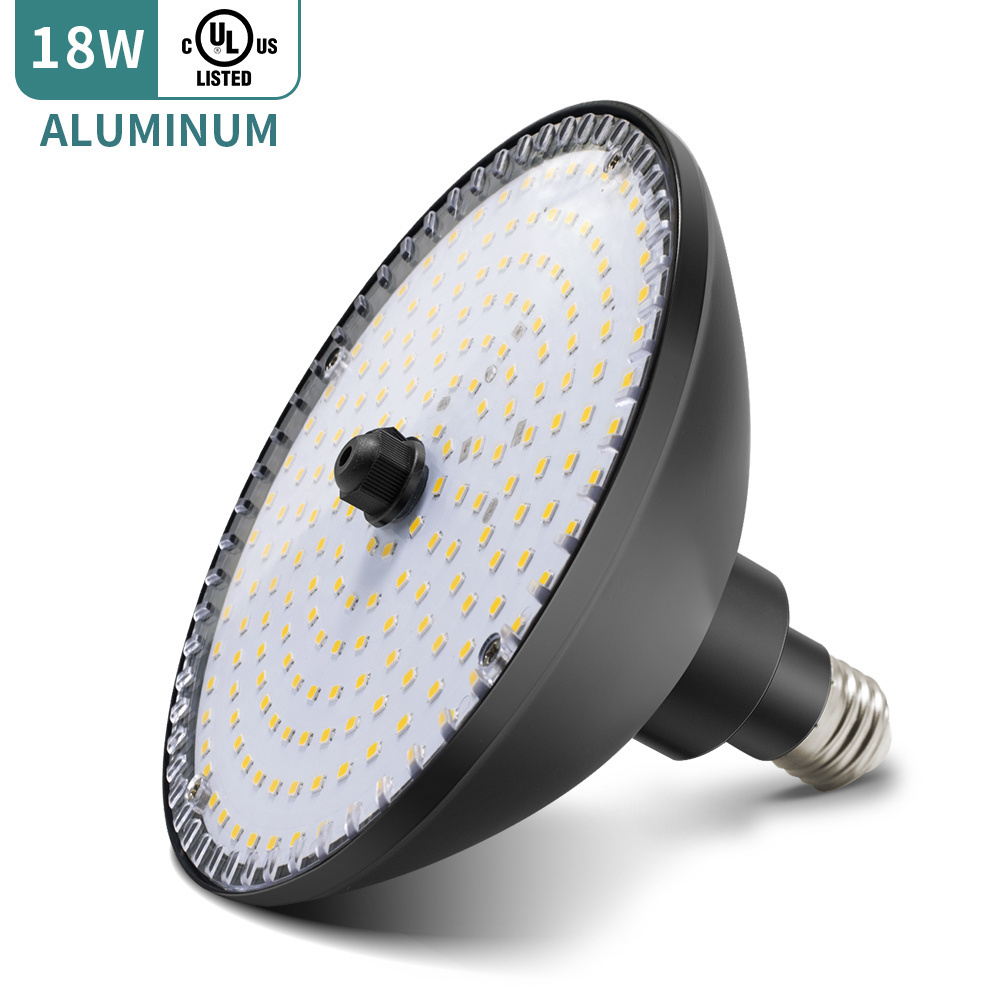

HG-P56-18W-B(E26-L)-UL led par56 pool light bulb
-
Lamp Size:
-
D165mm*H125-138mm(adjustable)
-
Lighting Color:
-
single color
-
Color Temperature(CCT):
-
Pure White: 6500±10% Warm White:3000K±10% costomized
-
Certificate:
-
U L,CE, ROHS,FCC, IP68,VDE
-
Certification:
-
ce, EMC, FCC, LVD, RoHS, UL, VDE
Quick Details
-
IP Rating:
-
IP68
-
Lamp Body Material:
-
Aluminum+Anti UV PC cover
-
Lifespan (hours):
-
50000
-
Input Voltage(V):
-
AC12V/DC12V
-
Lamp Luminous Flux(lm):
-
1700LM
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Birmate
-
Model Number:
-
HG-P56-18W-B(E26-L)-UL
-
Warranty(Year):
-
3-Year
-
Name:
-
HG-P56-18W-B(E26-L)-UL led par56 pool light bulb
-
Lamp Size:
-
D165mm*H125-138mm(adjustable)
-
Lighting Color:
-
single color
-
Color Temperature(CCT):
-
Pure White: 6500±10% Warm White:3000K±10% costomized
-
Certificate:
-
U L,CE, ROHS,FCC, IP68,VDE
-
Certification:
-
ce, EMC, FCC, LVD, RoHS, UL, VDE
E26 Base Warm White 3500K Wireless Multi Color LED PAR 56 Pool Light edison base
Product size :
| HG-P56-18W-B(E26-L)-UL | ||||||||
| Lamp paramater | Material | Aluminum+Anti UV PC cover | ||||||
| Light dimension | Φ165×125-138mm | |||||||
| Input voltage | AC12/DC12V | |||||||
| Wattage | 18W±10% | |||||||
| Light lumen | 1700LM±10% | |||||||
| Halogen replacement | 150W | |||||||
| Beam angle | 120° | |||||||
| BASE | E26 | |||||||
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized | |||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
| IP Rating | IP68 | |||||||
| Certificate | UL,CE, ROHS,FCC, IP68,VDE | |||||||
| Life-span | 50,000 hours | |||||||
| Warranty | 3Years | |||||||
| !!! Remarks | Connect coil transformer | must be coil transformer | ||||||
| Waterproof ring of housing | must do right to get IP68 | |||||||
| Test position | LED PAR56 swimming pool lights (Min) | |||||||
| Working temperature 28℃ | Working temperature 40℃ | |||||||
| Underwater test time(Min) | 480 | 480 | ||||||
| LED edge temperature(℃) | 62 | 65 | ||||||
1. UL Certified LED PAR56 pool bulb.
2. Adjustable height patented design, PAR56 bulb can perfectly match with the niches of Pentair, Jandy, Hayward, etc.
3. CD12 Die - cast aluminum material shell, great heat dissipation through structure.
4. Anti-UV transparent PC cover, won't turn yellow within 2 years.
5. 8 hours aging testing, 30 steps quality inspections, assure the great quality pool light .
6. Constant current driver, comply with CE & EMC standard.
7. The nickel-plated copper E26 base, solid and not easy to deformed .
8. 2-3MM aluminum light board for excellent heat dissipation , 2.0W/(m.k) Thermal conductivity .
9. led pool lighting all passed 100% waterproof at 10m depth,100% inspection before deliver.
10. This model must assemble to IP68 Niche/Housing
led par 56 pool light
HG-P56-18W-B(E26-L)-UL led par 56 pool light widely use in concrete pool ,vinyl pool ,the lamp size can totally match various Germany and US PAR56 housing/niches.
led par 56 pool light can totally match the niche/housing Jandy ,Haywad,Astral etc.
How to replace the old led par 56 pool light halogen :
led par 56 pool light application :Concrete pool ,Vinyl pool ,Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc
|
Item |
HG-P56-18W-B(E26-L)-UL led par 56 pool light |
|
Product weight |
880g |
|
color box size |
185×185×135mm |
|
Carton/pcs |
20pcs/Carton |
|
Carton size |
810x400x400mm |
|
Carton weight |
19.1kg |
In 2006, we began working in LED Underwater product development and production. factory area of 2,000 square meters, we are a hightech enterprise also the only one China supplier who is listed
in UL certificate in Led
Swimming pool light industry.
MAIN PRODUCTS
1.UL Certificated pool light
2.LED PAR56 pool light
3. LED Surface Mount LED Pool light
4. LED Fiberglass pool lights
5. LED Vinyl pool lights
6. LED Underwater Spot light
7. LED Fountain Light
8. LED Ground lights
9. IP68 Led Strip light
10.RGB Led Controller
11. IP68 par56 housing/Niche/fixture
CERTIFICATION AND GLORY
1.UL Certification (PAR56 Pool lights), CE, ROHS, FCC, EMC, LVD, IP68 , IK10.VDE
2.ISO9001 certification
3.Private model products
4.Structure waterproof technology
5.Customer satisfaction rate >98%
Heguang always adheres to the quality first, constantly develops new products to adapt to the development of the market,and provides customers with comprehensive and intimate product solutions to ensure worry-free after-sales!
The factory is located in Baoan, Shenzhen, close to Hong Kong and Shenzhen Airport. Welcome to visit factory.
Heguang LED pool lighting Certification :
Heguang exhibition :
Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat through structure.
4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68,IK10 and our Par56 pool light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand .
8.: Patent design RGB 100% synchronous control ,switch control ,external control ,wifi control ,DMX512 control,etc.
