- Product Details
- {{item.text}}
Quick Details
-
CPU:
-
Quad-Core ARM Cortex-A53 2.0GHz
-
RAM:
-
2 GB
-
SSD:
-
32GB
-
Operation System:
-
Android 11
-
Compatible Devices:
-
Android
-
printer technology:
-
NONE
-
Place of Origin:
-
Guangdong, China
-
Resolution:
-
1280*720
-
Interfaces:
-
Micro SD,SIM,PSAM,RS232,USB Type A+C,MDB Slave,SMA
-
Communication:
-
WIFI IEEE 802.11 a/b/g/n/ac,BT 5.0,GPS,4G
-
Payment:
-
NFC+Smart Card Reader
-
Power Supply:
-
12v-48V DC (via MDB Slave / RS232)
-
Certification:
-
IP/IK,CE, Rohs, FCC, GMS
-
Camera Front:
-
5MP
-
Audio:
-
Speaker, Mic, Buzzer
-
Dimensions:
-
152*93*41mm
-
Warranty:
-
1 Year
Quick Details
-
Model Number:
-
CM30
-
Country of Origin:
-
CHINA
-
Brand Name:
-
HCCTG
-
CPU:
-
Quad-Core ARM Cortex-A53 2.0GHz
-
RAM:
-
2 GB
-
SSD:
-
32GB
-
Operation System:
-
Android 11
-
Compatible Devices:
-
Android
-
printer technology:
-
NONE
-
Place of Origin:
-
Guangdong, China
-
Resolution:
-
1280*720
-
Interfaces:
-
Micro SD,SIM,PSAM,RS232,USB Type A+C,MDB Slave,SMA
-
Communication:
-
WIFI IEEE 802.11 a/b/g/n/ac,BT 5.0,GPS,4G
-
Payment:
-
NFC+Smart Card Reader
-
Power Supply:
-
12v-48V DC (via MDB Slave / RS232)
-
Certification:
-
IP/IK,CE, Rohs, FCC, GMS
-
Camera Front:
-
5MP
-
Audio:
-
Speaker, Mic, Buzzer
-
Dimensions:
-
152*93*41mm
-
Warranty:
-
1 Year
Product Description

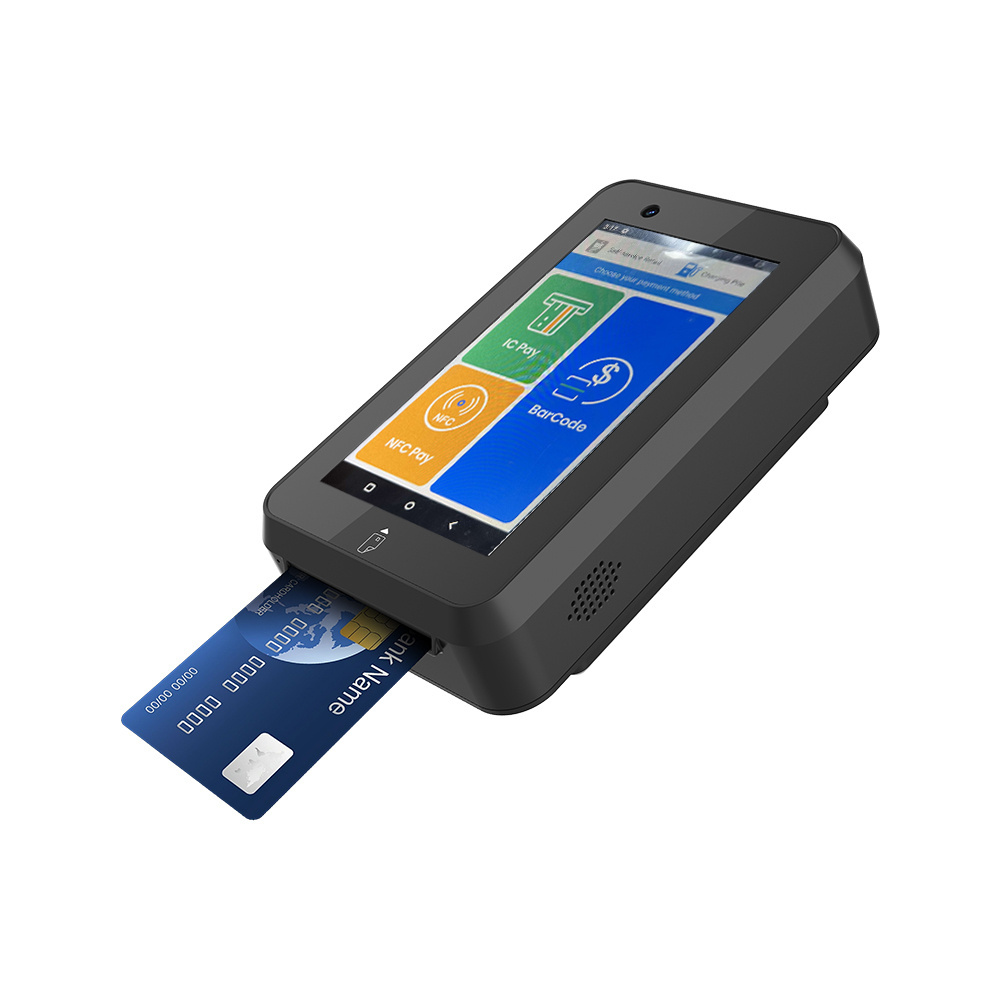

1.New-generation Unattended Experience
A.Large Screen of 5.0 inch TFT IPS LCD
B.resolution 1280*720
C.Pin on Glass NFC
2.Robust and Reliable
Designed to perform in the harshest of outdoor environments with IP54, IK08 certificates
3.Accept Any Payment
SoftPOS + EMV/PCI dual verion bring you flexibility for various scenarios
4.Rich Connectivity:with the addition of MDB interfaces
BT,WIFI, 4G connectivity, the CM30 extends its connection capabilities and enables to add optional modules to enhance flexibility
5.A Future-proof Platform
The Android-based platform sustains endless possibilities
|
Basic Characteristics
|
|
|
|
OS
|
Safedroid OS (based on Android 11.0)
|
|
|
CPU
|
Quad-Core ARM Cortex-A53 2.0GHz
|
|
|
ROM
|
32GB ROM EMMC
|
|
|
RAM
|
2GB RAM LPDDR
|
|
|
Display
|
5.0 inch TFT IPS LCD, resolution 1280*720
|
|
|
Panel
|
Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
|
|
|
Dimensions
|
152*93*41mm
|
|
|
Weight
|
418g
|
|
|
Keys
|
2xPhysical keys
|
|
|
Input
|
Chinese/English, and supports handwriting and soft keyboard
|
|
|
Interfaces
|
|
|
|
Micro SD Card Slot
|
1 Pcs
|
|
|
SIM Card Slot
|
2 Pcs Micro SIM
|
|
|
PSAM Card Slot
|
4 Pcs Conforms to ISO7816 standard
|
|
|
Peripheral Ports
|
1*RS232
1*LAN, 100Mbps 1*USB Type A, USB2.0 HOST 1*USB Type C, USB2.0 1*MDB Slave 2*SMA, External antenna |
|
|
Power
|
|
|
|
DC
|
12v-48V DC (via MDB Slave / RS232)
|
|
|
Radio Communication
|
|
|
|
WIFI
|
IEEE 802.11 a/b/g/n/ac, support 2.4GHz and 5GHz
|
|
|
Bluetooth
|
BT 5.0 and earlier
|
|
|
Satellite Positioning
|
Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo
|
|
|
4G(3G/2G)
|
European version(Default):
FDD-LTE: B1/B3/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 |
|
|
Environment
|
|
|
|
Operating Temperature
|
-20°C to 60°C
|
|
|
Storage Temperature
|
-30°C to 70°C
|
|
|
Humidity
|
5% to 95% Relative Humidity, Non-Condensing
|
|
|
Payment
|
|
|
|
Contactless Card Reader
|
Supports 14443A /14443B
|
|
|
Smart Card Reader
|
Supports ISO7816 standard
|
|
|
Certification
|
|
|
|
Electromagnetic
|
IP/IK Certified
CE, Rohs, FCC, GMS |
|
|
Expansion and peripherals
|
|
|
|
Camera front
|
5MP
|
|
|
Audio
|
Speaker, Mic, Buzzer
|
|
|
Physical Protection
|
|
|
|
IP/IK Certified
|
IP54, IK08
|
|
