Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
JINOU/OEM
-
Bluetooth standard:
-
BLE 5.0
-
Connection number:
-
1pcs jinou beacon
-
Power supply:
-
5V USB charging
-
Searching range:
-
30m in open air
-
Network:
-
RJ45 / WiFi
-
Frequency Range:
-
2.402G~2.483GHz
-
Communication protocol:
-
UDP server and TCP Client
-
Average power consumption:
-
120mA
-
Max scanning number:
-
Scan 13pcs broadcasting in 8s
-
Network protocol:
-
TCP/IP,DHCP,ARP,RARP,TCP,UDP
Quick Details
-
Chipset:
-
TI/NRF
-
Application:
-
iot
-
Model Number:
-
JO-BEM01
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
JINOU/OEM
-
Bluetooth standard:
-
BLE 5.0
-
Connection number:
-
1pcs jinou beacon
-
Power supply:
-
5V USB charging
-
Searching range:
-
30m in open air
-
Network:
-
RJ45 / WiFi
-
Frequency Range:
-
2.402G~2.483GHz
-
Communication protocol:
-
UDP server and TCP Client
-
Average power consumption:
-
120mA
-
Max scanning number:
-
Scan 13pcs broadcasting in 8s
-
Network protocol:
-
TCP/IP,DHCP,ARP,RARP,TCP,UDP

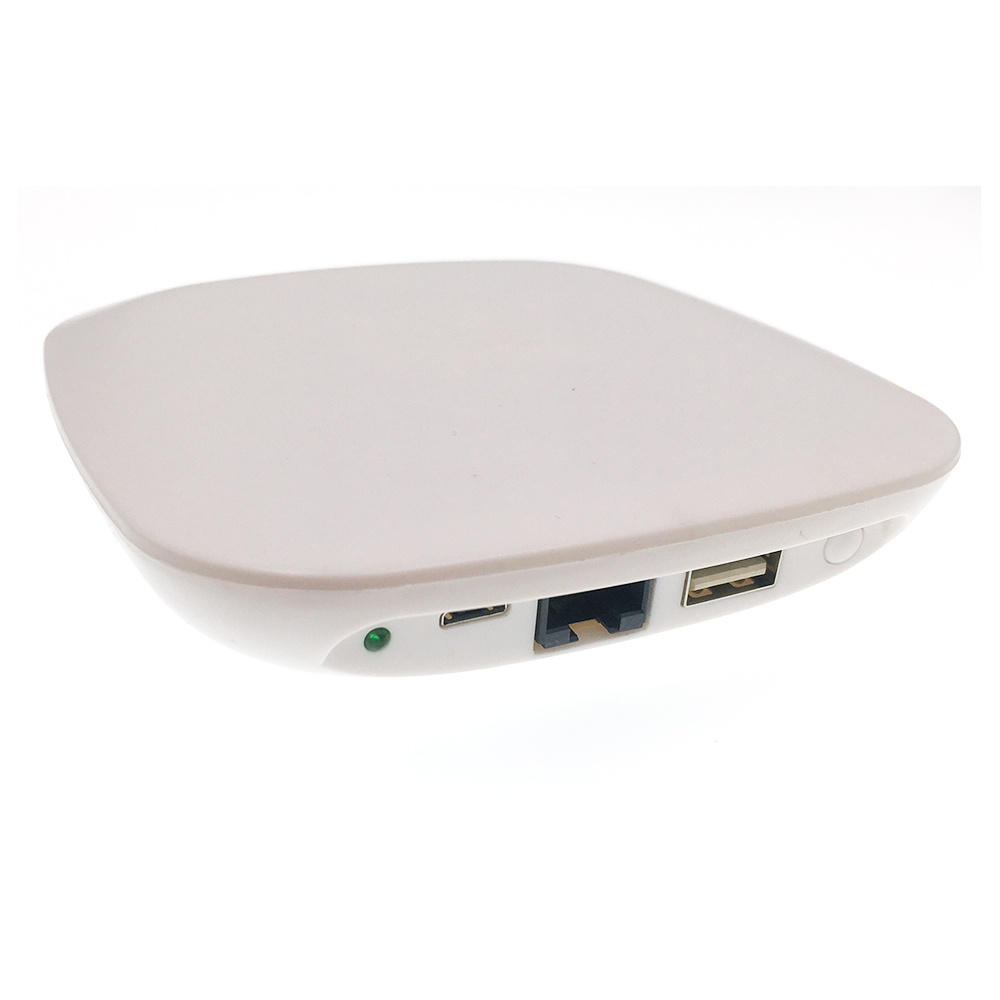

BLE 5.0 Bluetooth Beacon ibeacon Manager/ Gateway Wireless Smart WiFi Bridge
Jinou BLE Bluetooth gateway supports Bluetooth 5.0BLE specification, follows GATT protocol, compatible with other 5.0BLE devices. When BLE getaway searched other BLE devices, it will upload their Bluetooth address, device name, signal power and other information to PC in LAN via TCP/IP. It can use RJ45 or WIFI upload information to PC in LAN network.
BLE gateway and also connect with Jinou Beacons and change beacon parameter such as device name, UUID, Major and Minor.
Characteristics:
In accordance with GATT specification of 5.0BLE. Have good compatibility with other BLE device.
BLE getaway can monitor movement of neighboring BLE devices.
BLE gateway has WIFI function. It can connect router via RJ45 port or connect network via WIFI.
Having data caching function. Don't lose package when uploading date.
In accordance with FCC, CE, ROSH and other certificates.
Bluetooth and WIFI use different frequency, circuits and antenna. Has little interference to each other.
Modes: automatic power-saving mode, BLE mode and high-speed working mode.
Bluetooth protocol: LL, MP, L2CAP, ATT, GATT, GAP
WIFI supports IEEE 802.11b/g/n protocol.
Network supports: TCP/IP, DHCP, ARP, RARP, TCP, UDP
|
Bluetooth version
|
BLE 5.0
|
|
|
||
|
Working Frequency
|
2.402G~2.483GHz
|
|
|
||
|
Antenna
|
Embedded antenna
|
|
|
||
|
Max Scanning Range
|
30 m
|
|
|
||
|
Max Scanning Number
|
Scan 13pcs broadcasting in 8s
|
|
|
||
|
Connection Number
|
1pcs jinou beacon
|
|
|
||
|
Protocol
|
LM, LC, LL, SMP, L2CAP, ATT, GAP, GATT, SDP, RFCOMM
|
|
|
||
|
Supporting Service
|
Bluetooth Serial Port Profile
|
|
|
||
|
Average power consumption
|
120mA, peak power consumption is 500mA(Using WIFI)
|
|
|
||
|
Working Temperature
|
-20ºC ~+65ºC
|
|
|
||
|
Power Supply
|
5V USB charging
|
|
|
||
|
Wireless
|
IEEE 802.11b/g/n
|
|
|
||
|
Network
|
RJ45/ WiFi
|
|
|
||
|
Network protocol
|
TCP/IP,DHCP,ARP,RARP,TCP,UDP
|
|
|
||
|
Bluetooth protocols
|
LL, SMP, L2CAP, ATT, GATT, GAP
|
|
|
||
|
Size
|
106mm *106mm * 30mm
|
|
|
||
Applications
Device data collection
Staff monitor in school, workshop, etc.
Smart home, building automation
Logistics
Medical
Exercise and fitness
IOT
Type: BTP106-2
1. Linux system
2. Searching range: 30m in open air
3. 10M/100M adaptive network
4. Scan 300pcs broadcasting in 8s
Type: BEM01
1.Linux system
2. Searching range: 50m in open air
3. Remotely update beacon software
4. Scan 13pcs broadcasting in 8s
Type: BTP105
1. Mbed system
2. 10M
3. Scans unlimited broadcasting
4. Connects 1 BLE device
