Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Product Name:
-
Android Set Top Box
-
Input frequency:
-
47~862
-
Signal standard:
-
DVB-C EN300 429
-
Modulation mode:
-
16/32/128/256QAM
-
Video decoding:
-
MPEG-2/MPEG-4/Divx/AVS/AVS+/Real/VC-1/H.264/H.265
-
Video output:
-
4Kx2K
-
Audio decoding:
-
MPEG-1,Dol-by digital/DD+/Plus/AAC/WMA/MP3/DRA/DTS
-
Flash memory:
-
8GB eMMC
-
RAM memory:
-
2GB DDR4
-
Dimension:
-
120x120x30mm
Quick Details
-
Processor Core:
-
Quad Core
-
Support Resolution:
-
4k
-
WiFi:
-
802.11n 2.4GHz
-
Place of Origin:
-
Shaanxi, China
-
Product Name:
-
Android Set Top Box
-
Input frequency:
-
47~862
-
Signal standard:
-
DVB-C EN300 429
-
Modulation mode:
-
16/32/128/256QAM
-
Video decoding:
-
MPEG-2/MPEG-4/Divx/AVS/AVS+/Real/VC-1/H.264/H.265
-
Video output:
-
4Kx2K
-
Audio decoding:
-
MPEG-1,Dol-by digital/DD+/Plus/AAC/WMA/MP3/DRA/DTS
-
Flash memory:
-
8GB eMMC
-
RAM memory:
-
2GB DDR4
-
Dimension:
-
120x120x30mm

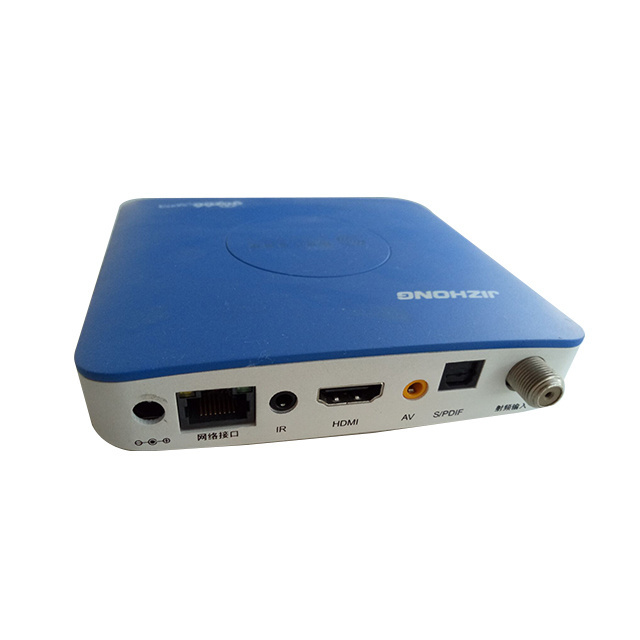

DVB+OTT HD 4K 1gb ram +4gb rom ddr cheapest android tv box set top box
DCR-560H
Product Overview:
It adopts advanced QAM demodulation and MPEG-2/MPEG-4/H.264/H.265/AVS/AVS+ decoding technology, it can receive and decode all the digital TV programs compatible with DVB/MPEG /H.264/H.265/AVS/AVS+ which transmitted by CATV network. It also supports many CAS encryption method, EPG and advertisement business. Supporting stock information platform and stock information customized service; Supporting PVR reservation, record and encryption function; supporting popular midware and two way browser application; supporting VOD broadcast on line in real time and OTT video and interactive business of mutil-application. It offers more valued space for the operators. Colorful and interactive operating interface improves users’ demand and experience.
Key Feature:
*Fully conforms to DVB-C/MPEG/J.264/AVS/AVS+ standard
*Support TVOS 2.0 system and android 4.4 system; support HTML5 application
*Support QAM modulations (16/32/64/128/256QAM
*Support many CAS
*Support standard EPG and programs reservation management and EPG advertisement business
* Support popular midware, browser application and stock information customized service
* Support VOD/OTT two-way VOD, program time shift and look back function
* Support LAN/WIFI accessing and Blue-tooth application
* Support WIFI hotspot, support multi-screen push service
* Support extensible VOIP and VP visible TV application
* Built in player, support USB local video/music/photo play
* Support Loader OTA upgrade by manual, automatic and other ways, upgrade the latest version on line in time
* Watch video program through internet free of charge
* Support 802.11 b/g/n
* Support bluetooth 4.0
* Software updated through internet automatically
* Support software application store, users can download and install the apps by themselves
CPU:
1. Quad-Core ARM Cortex A7, the main frequency can be 1.5Gh
2. Integrated mutil-media accelerate engine NEON
3. hardware JAVA accelerate
4. Integrate hardware floating-point co-processor
5. 3D GPU
6. Quad-Core Mali450
7. OpenGL ES 2.0/1.2/1.0 Open VG1.1, EGL
Technical Parameter:
|
Input Frequency |
115-862MHZ |
|
Cha-nnel Standard |
DVB-C EN300 429 |
|
Modulation |
16/32/64/128/256QAM |
|
Symbol Rate |
3.6-6.952MS/s |
|
Video Decode |
MPEG-2MP@ML/MPEG4SP@ASP/Div x/AVS/AVS+/Real/VC-1/H.264/H.265 |
|
Video Output |
4K X 2K@p30 |
|
Audio Decode |
MPEG-1(layer1&2) , Do-lby Digital/DD+/Plus/AAC/WMA/MP3/DR A/DTS |
|
CPU&GPU Processing |
4*ARM Cortex A7/4* Maili4504 |
|
Flash Memory |
4GB eMMC |
|
RAM Memory |
1GB DDR3 |
|
Panel Display |
Pow/lock/net LED indicate |
|
Panel Keys |
Standby keys design |
|
RF input |
Imperial F type female head |
|
AV output |
PJ-322 interface( L/R/CVBS) |
|
Hd-mi output |
Hd-mi 1.4a (support HDCP) |
|
USB interface |
1*usb2.0, 1* usb3.0(horizontal type) |
|
Network interface |
RJ45 standard interface |
|
CA interface |
SIM standard card slot |
|
Input voltage |
DC: 12V/1.0A |
|
Power consumption |
12W(MAX) |
|
Reference Structure Size |
120mmX120mmX30mm |
FAQ:
Our Service:
* Your inquiry related to our products or prices will be replied within 24hours;
* Well-trained and experienced staffs to answer all your enquires in fluent English;
* Protection of your sales area ,ideas of design and all your private information;
* 1 years warranty;
* Hardware and software OEM and ODM with over 30 hardware and software engieeners;
* Debugging and adjusting;
* Welcome talk in details after sample test.
