- Product Details
- {{item.text}}
Quick Details
-
Engine Brand:
-
CHANGCHAI
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YHMG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
YH-JS1000
-
Model:
-
Changchai ZN390B
-
Turning radius:
-
2300mm
-
type:
-
Diesel engine, vertical water cooling
-
Gradeability:
-
30%
-
power:
-
39HP,2600rpm
-
Vibration frequency:
-
75Hz
-
Before/after static line load:
-
100/83N/cm
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
29Kw
-
Weight:
-
1980KG
-
Engine Brand:
-
CHANGCHAI
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YHMG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
YH-JS1000
-
Model:
-
Changchai ZN390B
-
Turning radius:
-
2300mm
-
type:
-
Diesel engine, vertical water cooling
-
Gradeability:
-
30%
-
power:
-
39HP,2600rpm
-
Vibration frequency:
-
75Hz
-
Before/after static line load:
-
100/83N/cm

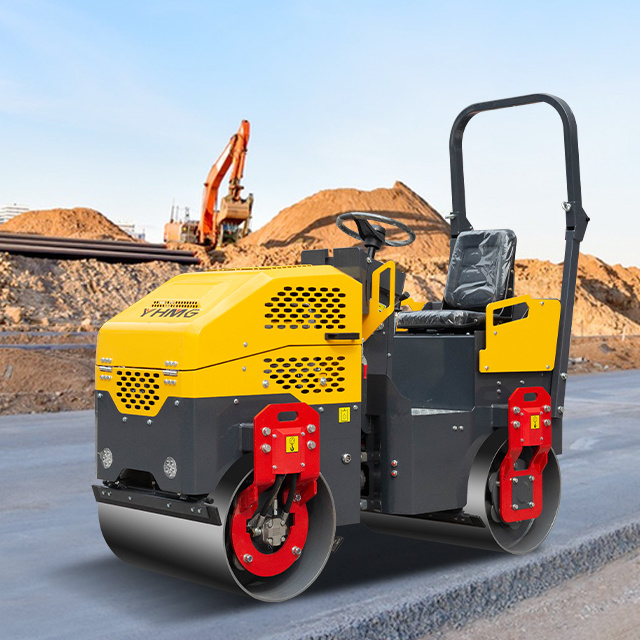

BriefIntroduction Double Drum Vibration Rollers
A road roller, also known as a soil compactor, is a kind of equipment for road construction. Road rollers belong to the category
of road equipment in construction machinery, and are widely used in the filling and compaction of large-scale engineering projects
such as high-grade highways, railways, airport runways, dams, stadiums, etc. Subgrade stabilized soil and asphalt concrete
pavement layer. The road roller is suitable for various compaction operations by the gravity of the machine itself, so that the
rolled layer will be permanently deformed and compacted.
A road roller, also known as a soil compactor, is a kind of equipment for road construction. Road rollers belong to the category
of road equipment in construction machinery, and are widely used in the filling and compaction of large-scale engineering projects
such as high-grade highways, railways, airport runways, dams, stadiums, etc. Subgrade stabilized soil and asphalt concrete
pavement layer. The road roller is suitable for various compaction operations by the gravity of the machine itself, so that the
rolled layer will be permanently deformed and compacted.
Product Description
Driving vibratory roller (hydraulic steering) has the characteristics of wide use, superior performance, convenient operation and durability.
Basic configuration;
1；Changchai ZN390B diesel engine meets the third national emission standard. Brand quality assurance, superior performance and
strong power. Optional imported Kubota engine/HONDA gasoline engine.
2；The international brand SAO-Danfoss variable piston pump, with direct-connected structure, forms a hydraulic system with stable performance and stepless speed change control.
3；Brand cycloid hydraulic motor, front and rear double wheel drive, strong climbing ability.
4；Front wheel hydraulic vibration, stable performance, strong compaction ability. Support customized double vibration of front and rear wheels, which can be controlled separately.
5；The front and rear frames are hinged, with large swing angle, and are not easy to overturn. Hydraulic power steering, easy
steering.
6；The international brand NSK high-precision centripetal ball bearing with seat ensures the integrity of the equipment.
7；Electric control pressure water spray system, one-button switch, spray more evenly.
8；The front and rear LED high-efficiency lighting lamps are more convenient for construction at night. .
Basic configuration;
1；Changchai ZN390B diesel engine meets the third national emission standard. Brand quality assurance, superior performance and
strong power. Optional imported Kubota engine/HONDA gasoline engine.
2；The international brand SAO-Danfoss variable piston pump, with direct-connected structure, forms a hydraulic system with stable performance and stepless speed change control.
3；Brand cycloid hydraulic motor, front and rear double wheel drive, strong climbing ability.
4；Front wheel hydraulic vibration, stable performance, strong compaction ability. Support customized double vibration of front and rear wheels, which can be controlled separately.
5；The front and rear frames are hinged, with large swing angle, and are not easy to overturn. Hydraulic power steering, easy
steering.
6；The international brand NSK high-precision centripetal ball bearing with seat ensures the integrity of the equipment.
7；Electric control pressure water spray system, one-button switch, spray more evenly.
8；The front and rear LED high-efficiency lighting lamps are more convenient for construction at night. .
Specification
|
Model
|
YH-JS1000
|
|
|
||
|
walk
|
|
Engine
|
|
||
|
speed
|
0-12km/h
|
Model
|
Changchai ZN390B
|
||
|
Turning radius
|
2300mm
|
type
|
Diesel engine, vertical water cooling
|
||
|
Climbing ability
|
30%
|
power
|
39HP，2600rpm
|
||
|
compaction
|
|
Tank capacity
|
36L
|
||
|
65/82N/cm Before and after static line loads
|
100/83N/cm
|
Fuel consumption
|
240g/kw·h
|
||
|
Nominal amplitude
|
0.5mm
|
Size specification
|
|
||
|
Vibration frequency
|
75Hz
|
Steel wheel width (front, back)
|
1000mm
|
||
|
Exciting force
|
30kN
|
Diameter of steel wheel (front, back)
|
610mm
|
||
|
work
|
|
Total length
|
2300mm
|
||
|
Drive form
|
Hydraulic two-wheel drive
|
Total width
|
1120mm
|
||
|
Vibration form
|
Hydraulic vibration
|
Total height
|
1650mm
|
||
|
|
Front wheel vibration
|
Packing size
|
2500x1200x1750mm
|
||
|
Steering form
|
Hydraulic steering
|
Work weight
|
1980kg
|
||
|
Watering method
|
Electric control pressure water spray
|
lighting
|
LED lighting
|
||
