Quick Details
-
Brand Name:
-
FASTARRIVER
-
Model Number:
-
1050 1060 1100 3003 3004 3105 5005 5052
-
Application:
-
Gutters, Ceillings, Eaves trough, Roofing
-
Width:
-
20 - 1600mm
-
Delivery Time:
-
15-20 days
-
Product type:
-
Gutter Coil
-
Material:
-
Aluminum Alloy Metal
-
Type:
-
Coil\plate\Roll
-
Coating:
-
PE PVDF Coating
-
Coating thickness:
-
18 - 25micron stardard or as your request
-
Colors:
-
depends on customer's option
-
Coated Ways:
-
Front or with back sides colored
-
Impact resistance:
-
no cracking and peeling
-
Sample:
-
Freely
-
Usage:
-
ACP, Decoration, Shutters, Window blinds, License plate
Quick Details
-
Grade:
-
1000series, 3000series, 5000series
-
Tolerance:
-
±1%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FASTARRIVER
-
Model Number:
-
1050 1060 1100 3003 3004 3105 5005 5052
-
Application:
-
Gutters, Ceillings, Eaves trough, Roofing
-
Width:
-
20 - 1600mm
-
Delivery Time:
-
15-20 days
-
Product type:
-
Gutter Coil
-
Material:
-
Aluminum Alloy Metal
-
Type:
-
Coil\plate\Roll
-
Coating:
-
PE PVDF Coating
-
Coating thickness:
-
18 - 25micron stardard or as your request
-
Colors:
-
depends on customer's option
-
Coated Ways:
-
Front or with back sides colored
-
Impact resistance:
-
no cracking and peeling
-
Sample:
-
Freely
-
Usage:
-
ACP, Decoration, Shutters, Window blinds, License plate

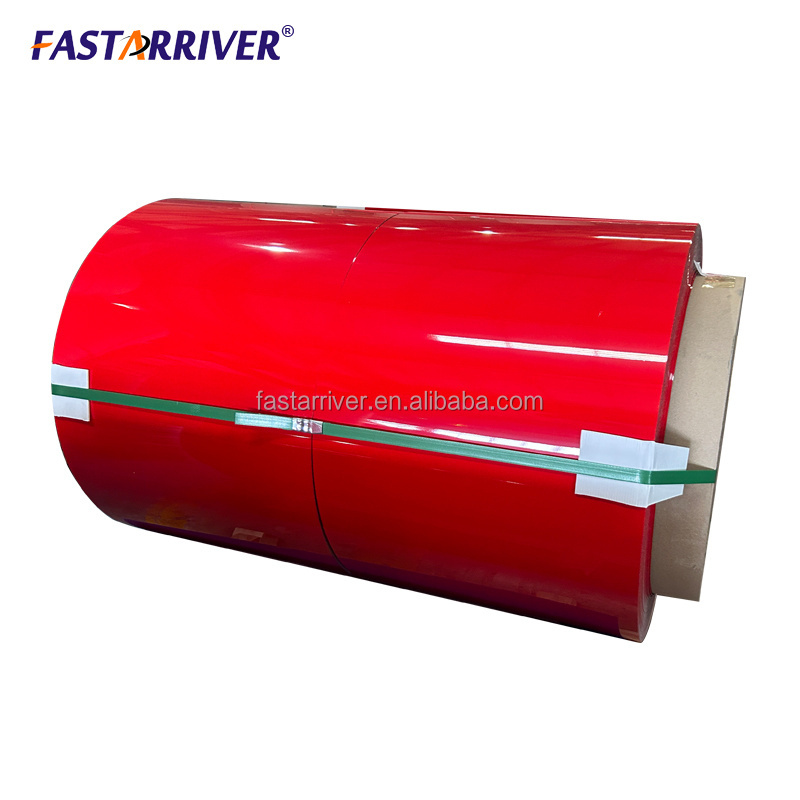

pe white color coated aluminium gutter coil sheet
FASTARRIVER Industrial company supplies the most extensive aluminum sheets and coils.
For further information about any of our products, please feel free to contact me. And if you do not know the professional details, just tell me its size and use , I will offer a fully solution for you !
Common Specifications
| Shape | Aluminum coils or sheets |
| Color | RAL colors, like white, black, red etc, and wood grain, stone pattern |
| Process | Single or double coating, single or double sides coated etc |
| Common Width | 20 - 1600mm |
| Common Thickness | 0.2mm - 5.0mm |
| Coating Material | PE, HDPE, PVDF |
| PE Thickness | Over 18 micron |
| PVDF Thickness | Over 25 micron |
| Unit Weight | 100KG - 2500KG per coil |
| Technology | Hot rolling, cold rolling |
| Delivery | 15 - 20 days of 5-10 tons for reference |
| Samples | Free |
| Main features | Long color life, bright colors, rustless |
| Usage | ACP, PC case, Ceiling, Rain gutter, Shutter door, Roofing, License plate |
|
|
Applications
1. For constructional exterior curtain walls, ACP of aluminum composite panel, Decorative Renovation Buildings, Building Facades, Siding, Window, , Exterior and Interior Cladding Wall Panel, Indoor and Outdoor Ceiling, Roller Shutter Doors, Roofing Material and so on.
2. Eaves Trough, Rain Gutters and Downspouts, Soffits and so on.
3. Decorative renovation for storey-added old buildings, Wallboard and ceilings for tunnels.
4. Channel Letters, Advertisement board, display platforms, LED Signs, UV printing, Advertising Boards, Billboards, Signboards, Wallboards and so on.
5. Raw materials in industrial purpose.
6. Material for Vehicle Bodies, Yacht Bodies, Boat Bodies, Bus Body, and so on.
7. Fan blade sheets, louver window shades blinds.
Features
| 1. Rustless. | 2. Eco-friendly. |
| 3. High definition. | 4. Vibrant colors. |
| 5. Super texture and feel. | 6. Excellent fire resistance. |
| 7. Excellent impact strength. | 8. Super weather resistance. |
| 9. Waterproof and easily clean. | 10. Good gloss and smoothness. |
| 11. Light weight and easy to process. | 12. Uniform and plenty colors of coating. |
| 13. Extremely durable scratch resistant surface. | |
|
|
Color coated aluminum coil is the aluminum coil surface coating color with PE/PVDF.
PE Coating: excellent flexibility and machinability (T-bend); it is widely used in aluminum coil system.
|
Technical Data of
PE
|
|||
| Test Item | Test Result | Coating Film Thickness | 16μm (average 17μm) |
| Gloss Tolerance | 1.5 | Abrasion Resistance | 1000 times No change |
| Pencil Hardness | 3H | Acid Resistance | No change |
| Coating Flexibility | 1T | Solvent Resistance | No change |
| Impact Resistance | 50kg·cm | Boiling-Water Resistance | No change |
| No depainting, No crack | |||
|
|
|||
PVDF Coating: excellent anti-corrosion, long weather resistance and strong adhesion; soft paint film, it is widely used in the area of super weather resistance.
| Technical Data of PVDF | |||
| Test Item | Test Result | Color Retention | E=0.35 |
| Coating Thickness | 26μm | Chalk Resistance | No change |
| Gloss Tolerance | 38% | Gloss Retention | 84.50% |
| Pencil Hardness | 2H | Surface Bruning Behavior | Class:A |
| Coating Flexibility | 2T | Salt-spary Resistance | 3000hrs no blister |
| Adhesive Force | 4B | Humidity Resistance | 3000hrs no blister |
| Abrasion Resistance | 55L/mil | Solvent Resistance | No change |
| Impact Resistance | >=100kg-cm | Acid Resistance | No change |
| Boiling-water Resistance | No change | Alkali Resistance | No change |
|
|
|||
A wide variety of colors for your choice or according to your samples
According to your requirements to customize strip cutting
The weight of each coil / pallet According to your requirements
| Chemical Composition (%) | ||||||||
| Grade | Si | Fe | Cu | Mn | Mg | Zn | Ti | Al |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 99.6 | |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | 0.1 | Rem. | ||
|
With embossed processing |
| With mirror polished processing |
Brushed processing with Color coating one side or both
Various samples
| Standard seaworthy exporting packing with carton or pallets. | |
| 1. Waterproof plastic and strong wrapping paper cover | 2. Metal belts baling and wooden pallets on the bottom |
| Also can packing as your request. | |
|
Clear dimensions are calculated by your inquiry. For your reference, 1mm thick, 1200 x 2400mm size, 1000 pieces, weight is estimated 7850KG, volume is estimated 6CBM. |
|
| Shipping from Shanghai or Qingdao port usually, other main ports in China is available too. | |
