Quick Details
-
Drilling Speed:
-
0-312r/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Howann
-
Voltage:
-
220V 50/60HZ
-
Dimension(L*W*H):
-
80*60*17cm
-
Power (kW):
-
0.8
-
Weight (KG):
-
30 KG
-
Product name:
-
Electric Tapping Machine
-
Usage:
-
Tapping Metal Parts
-
Motor:
-
Servo motor
-
Working direction:
-
Universal/ Vertical
-
Color:
-
Blue / White / Yellow/Customized
-
Driving mode:
-
Gear
-
Power(W):
-
800
-
After-sales Service Provided:
-
Online support, Video technical support
-
After Warranty Service:
-
Video technical support, Online support
-
Certification:
-
CE ISO
Quick Details
-
type:
-
Tapping machine
-
Max. Drilling Dia. (mm):
-
16
-
Range of Spindle Speed(r.p.m):
-
2 - 312 r.p.m
-
Drilling Speed:
-
0-312r/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Howann
-
Voltage:
-
220V 50/60HZ
-
Dimension(L*W*H):
-
80*60*17cm
-
Power (kW):
-
0.8
-
Weight (KG):
-
30 KG
-
Product name:
-
Electric Tapping Machine
-
Usage:
-
Tapping Metal Parts
-
Motor:
-
Servo motor
-
Working direction:
-
Universal/ Vertical
-
Color:
-
Blue / White / Yellow/Customized
-
Driving mode:
-
Gear
-
Power(W):
-
800
-
After-sales Service Provided:
-
Online support, Video technical support
-
After Warranty Service:
-
Video technical support, Online support
-
Certification:
-
CE ISO
Products Description

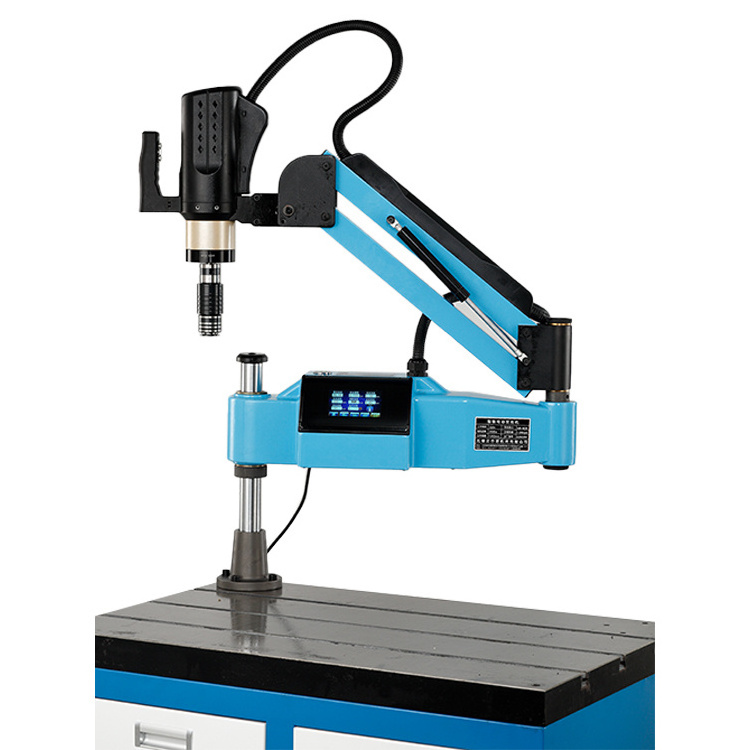

Electric Tapping Machine
is an electric tapping machine powered by a servo motor. It is suitable for thread processing of various machines, molds and parts. It is convenient, flexible and widely used.
Feature of Electric Tapping Machine
1. With the function of quiet, stable, power saving, high speed with low torque, low speed with high torque, and have the protection of over voltage, over current, over load, etc.
2. Touch layer design, automatic or manual options, easy operation. With the high efficiency, saving time and energy, accurate positioning, fast cutting.
3. Tap shall never break for tapping trough-hole or blind-hole.
2. Touch layer design, automatic or manual options, easy operation. With the high efficiency, saving time and energy, accurate positioning, fast cutting.
3. Tap shall never break for tapping trough-hole or blind-hole.
|
|
|
|
|
|
|
|
||||||||
|
Type
|
M2-M8
|
M3-M12
|
M3-M16
|
M6-M24
|
M6-M30
|
M6-M36
|
M12-M42
|
|||||||
|
Voltage / Power
|
220V/600W
|
220V/600W
|
220V/600W
|
220V/1200W
|
220V/1200W
|
220V/1400W
|
220V/1400W
|
|||||||
|
Speed
|
1250rpm
|
715rpm
|
312rpm
|
250rpm
|
200rpm
|
156rpm
|
200rpm
|
|||||||
|
Working radius
|
1.1M
|
1.1M
|
1.1M
|
1.2M
|
1.2M
|
1.2M
|
1.3M
|
|||||||
|
Angle of tapping
|
Vertical / Universal
|
Vertical / Universal
|
Vertical / Universal
|
Vertical / Universal
|
Vertical / Universal
|
Vertical / Universal
|
Vertical / Universal
|
|||||||
|
Weight
|
28KG
|
28KG
|
30KG
|
50KG
|
50KG
|
53KG
|
100KG
|
|||||||
If you are interested in our products, please do not hesitate, you can contact us directly, I believe we will have a good cooperation.
