Quick Details
-
Dimension(L*W*H):
-
44*24*21cm
-
Model Number:
-
AP-2S
-
Weight (T):
-
0.17
-
Warranty:
-
1 Year
-
Core Components:
-
Machine
-
Weight:
-
11.5/12; 16.5/17 kg
-
Product name:
-
High Precision Manual Arbor Press
-
Color:
-
Customizable
-
Nominal Force (kN):
-
20
-
Certification:
-
CE
Quick Details
-
Slide Stroke (mm):
-
200
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DS MACHINE TOOL
-
Dimension(L*W*H):
-
44*24*21cm
-
Model Number:
-
AP-2S
-
Weight (T):
-
0.17
-
Warranty:
-
1 Year
-
Core Components:
-
Machine
-
Weight:
-
11.5/12; 16.5/17 kg
-
Product name:
-
High Precision Manual Arbor Press
-
Color:
-
Customizable
-
Nominal Force (kN):
-
20
-
Certification:
-
CE
DS MACHINE TOOL produce and exporter Machine High Precision Manual Arbor Press
1.The hand press is of high quality body design
2.The quanlity is best.
Hand presses generally have a relatively low working pressure, have 1 ton (10kn) and 2 tons(20kn), hand presses are most suitable for pressing, forming, assembling, riveting, printing, punching, cutting, corner cutting, Light load precision requirements such as bending, bronzing and printing. The hand press is suitable for industries such as clocks, meters, electronics, jewelry, zippers, hardware, clothing, shoes and hats, etc. It can punch, bend, rivet and press-fit parts. It can process shearing, punching, blanking, bending, shallow drawing, crimping, riveting and forming of metal and non-metallic sheets, strips and coils.
AP-1
Model |
AP-1 |
AP-2 |
Capacity(KN) |
10 |
20 |
Height (mm) |
380-560 |
410-600 |
Base Size (mm) |
200*120 |
230*130 |
Table Size(mm) |
140*110 |
160*120 |
Distance spindle axis to column suface (mm) |
85 |
105 |
Max Travel (mm) |
200 |
260 |
Net Weight /Gross Weight(KG) |
11.5/12 |
16.5/17 |
Packing size (cm) |
44*24*21 |
44*24*21 |

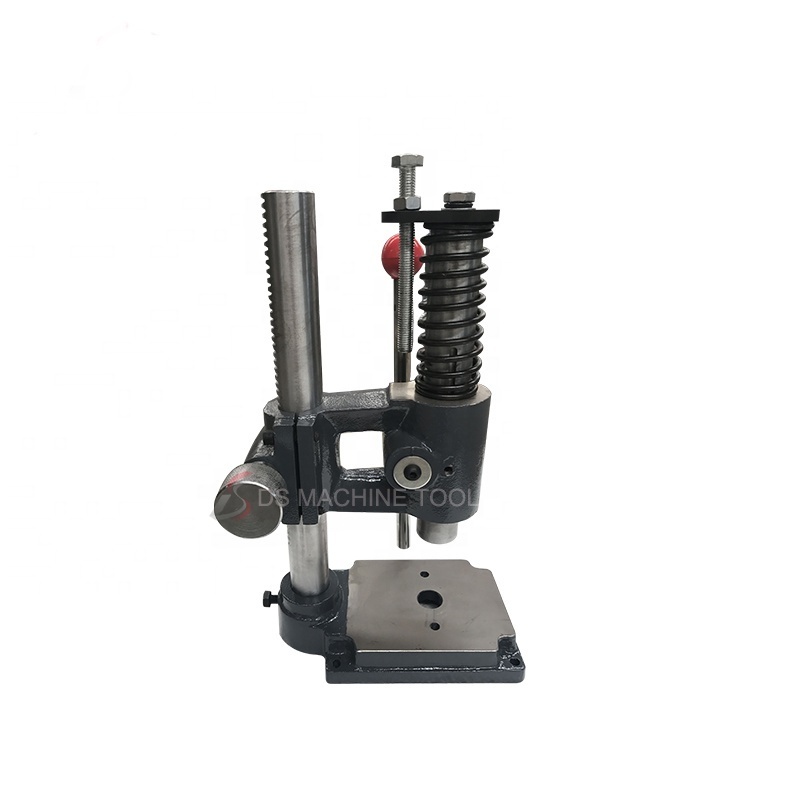

AP-1 and AP-2 some picture
