Quick Details
-
Model Number:
-
THC15A
-
Max. Current:
-
16A
-
Product name:
-
Electronic Weekly 7 Days Programmable Digital TIME SWITCH THC15A
-
Type:
-
time switch
-
Operating voltage:
-
DC24V 50HZ
-
Contact capacity:
-
AC220V 16A (resistance)
-
Control range:
-
1m~168h
-
Programmable number:
-
group switches are programmed each day
-
Mounting type:
-
35mm rail mounting type
-
Load capacity:
-
16A 250VAC
-
Minimum interval:
-
1 minute
-
Power consumption:
-
5VA
Quick Details
-
Max. Voltage:
-
AC220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kampa
-
Model Number:
-
THC15A
-
Max. Current:
-
16A
-
Product name:
-
Electronic Weekly 7 Days Programmable Digital TIME SWITCH THC15A
-
Type:
-
time switch
-
Operating voltage:
-
DC24V 50HZ
-
Contact capacity:
-
AC220V 16A (resistance)
-
Control range:
-
1m~168h
-
Programmable number:
-
group switches are programmed each day
-
Mounting type:
-
35mm rail mounting type
-
Load capacity:
-
16A 250VAC
-
Minimum interval:
-
1 minute
-
Power consumption:
-
5VA

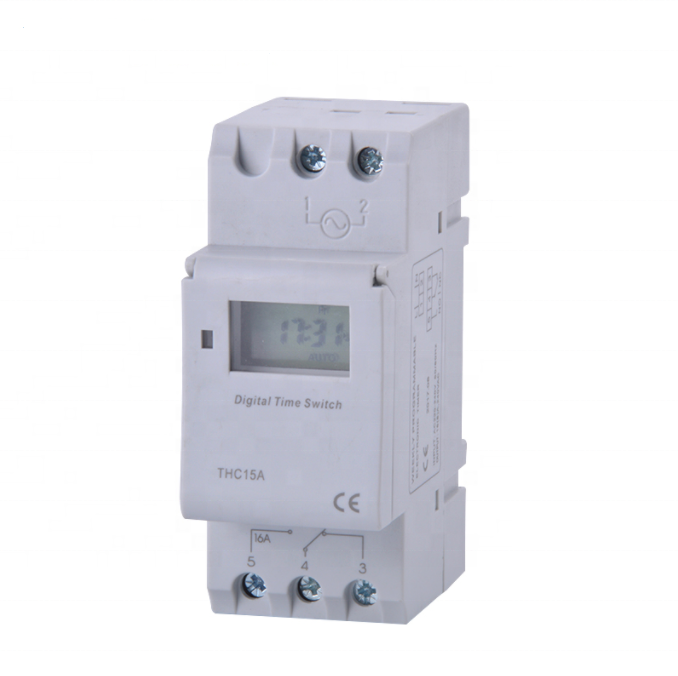

Electronic Weekly 7 Days Programmable Digital TIME SWITCH THC15A
Panel mounted
Advanced pre-setting one week before
Digital electronic timer switch with daily and weekly programs
Repeat programs with 16 on/off setting and manual override
NiH battery power reserve when electric supply cut off
Technical Data :
|
Model |
THC15A |
|
Temp.range: -20°C+50°C |
Power Supply: accorind your order |
|
Power consumption 4.5 VA (MAX) |
Display: LCD |
|
Switching contact: 1 changeover switch |
Programs:16 on/off each day or week |
|
Hysteresis 2 sec/day (25°C) |
Mini interval: 1min |
|
Capacity: 16(8) 250V AC |
Black-out: 60 days |
|
Timer range: 1min~168hr |
Recharge battery: 1.2V 40Ma |
|
Average error: 1s/24h, 25°C |
Weight: 0.15kg |
Package Content:
1 x Digital Timer
1 x English Manual
