Quick Details
-
Operation temp:
-
-10C-+40C
-
IP rating:
-
IP20
-
Max.load:
-
2*100W for LED
-
Operation frequency:
-
2.4GHz - 2.4835GHz WIFI
-
Case temp.Tc:
-
+80℃ (Max.)
-
Warranty:
-
3 years
-
Certificate:
-
CE RoHS FCC
-
Work with:
-
Amazon Alexa, Google Home, Echo Dot, IFTTT
Quick Details
-
Type:
-
Dimmer
-
Max. Load Power:
-
2*100W
-
Place of Origin:
-
China
-
Operation temp:
-
-10C-+40C
-
IP rating:
-
IP20
-
Max.load:
-
2*100W for LED
-
Operation frequency:
-
2.4GHz - 2.4835GHz WIFI
-
Case temp.Tc:
-
+80℃ (Max.)
-
Warranty:
-
3 years
-
Certificate:
-
CE RoHS FCC
-
Work with:
-
Amazon Alexa, Google Home, Echo Dot, IFTTT
Product details
| Max.load | 2*100W for LED |
| Operation frequency | 2.4GHz - 2.4835GHz WIFI |
| Operation temp | -10C-+40C |
| Case temp.Tc | +80C (Max.) |
| Operation range | ≤200m |
| Dims(WxDxH) | 46*46*18mm |
| IP rating | IP20 |
| Warranty | 3 years |

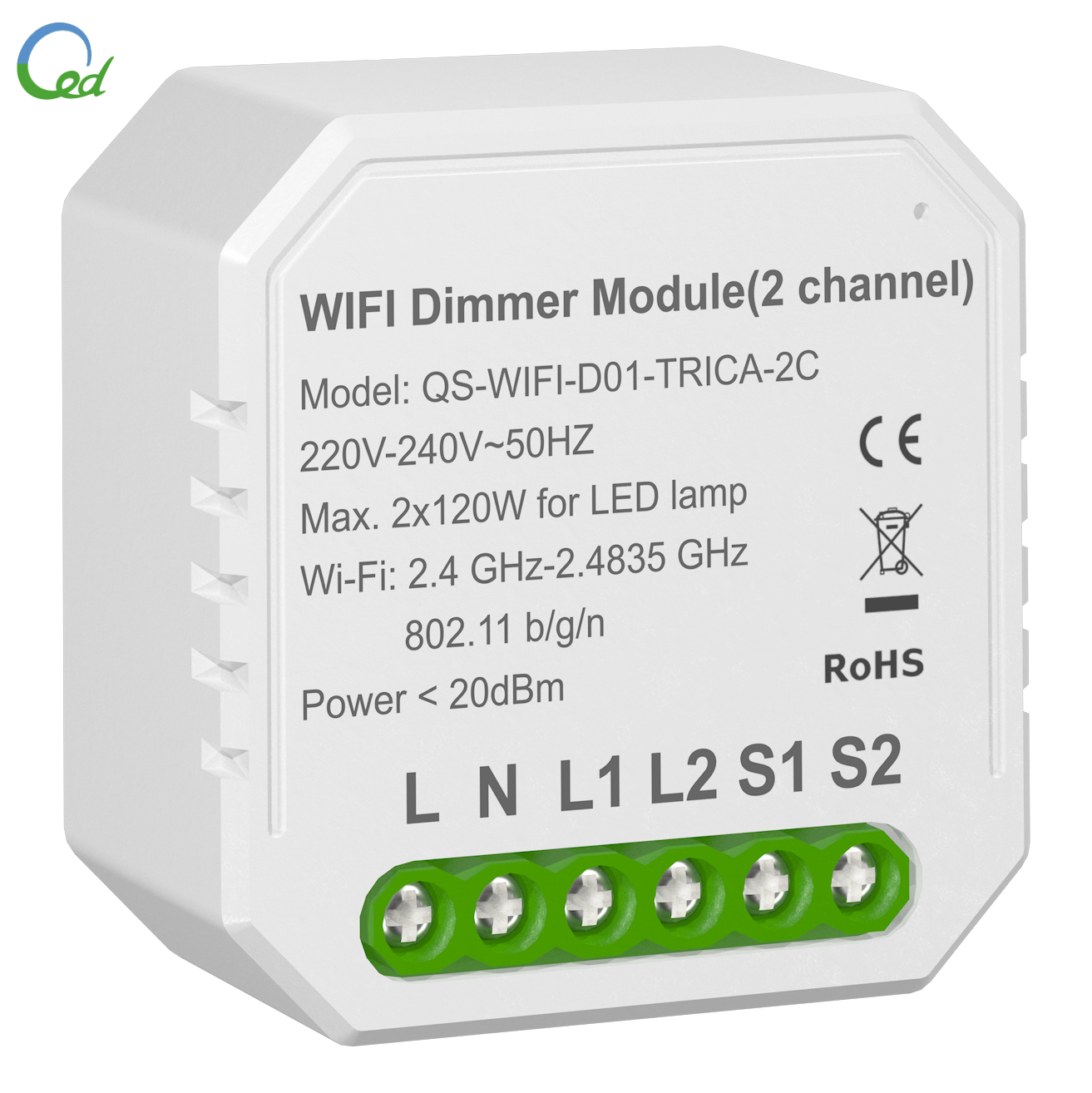

It's 2 gang wifi dimmer module which is installed into the traditional dimmer switch box to make the traditional dimmer switch become smart, and can be controlled by mobile phone or voice control.
Features:
1. small size 46*46*18mm, with mounting bracket for easy install in switch box
2. reserve function for manual dimmer switch, short press for on/off, long press to increase brightness
to maximum, then to decrease brightness to minimum.
3. Compatible with hand free voice control like Amazon Alexa, Google home,
4. Timer, scene and group function, save configured scene, group for easy control.
5. Share function, multiple phone control one dimmer module, multiple dimmers can be controlled by one phone
6. No hub required, control your home light anywhere you like
7. Two gang version QS-WIFI-D02-TRIAC-2C
8.Used for Triac dimmable LED light, incandescent light and Halogen light
FAQ: How to connect the module to cell phone APP and how to reset the module?
