4HP Air-Cooled Small Horizontal Shaft Diesel Engine (TD170F)

FOB Reference Price: Get Latest Price

≥10 Pieces

US $155

≥384 Pieces

US $139

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China

Brand Name:: Talos Plus

Weight:: 30

Rated power/speed:: 2.8kW/3600RPM

Marketing Type:: Hot Product

Model & HP:: TD170F(4HP)

Bore x Stroke:: 70 x 55mm

Rated Output:: 2.8kW(3.8HP)@3600RPM

Starting System:: Recoil Start

Fuel Tank Capacity:: 2.5L

N.W./G.W.:: 28/30kg

Dimension(L x W x H):: 42 x 38 x 47cm

Available Options:: Electric start, PTO, air cleaner

Certification:: CE

Quick Details

Displacement:: 211, 211cc

Emission Standard:: Euro 3

Power:: 2.8kW

Place of Origin:: China

Brand Name:: Talos Plus

Weight:: 30

Rated power/speed:: 2.8kW/3600RPM

Marketing Type:: Hot Product

Model & HP:: TD170F(4HP)

Bore x Stroke:: 70 x 55mm

Rated Output:: 2.8kW(3.8HP)@3600RPM

Starting System:: Recoil Start

Fuel Tank Capacity:: 2.5L

N.W./G.W.:: 28/30kg

Dimension(L x W x H):: 42 x 38 x 47cm

Available Options:: Electric start, PTO, air cleaner

Certification:: CE

Product Description

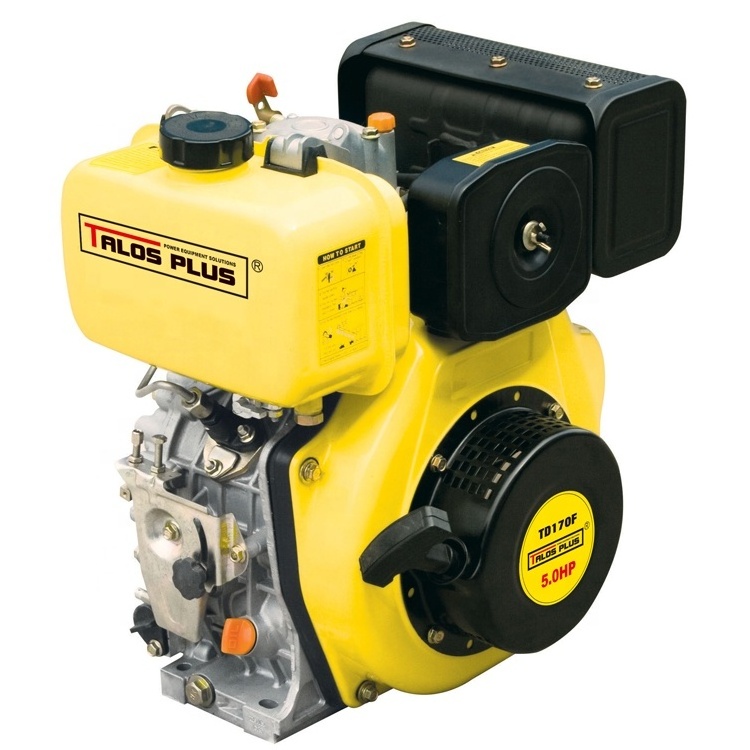

4HP Air-Cooled Small Horizontal Shaft Diesel Engine (TD170F)

Talosplus® diesel engine TD170F is low-maintenance, compact, lightweight, durable, fuel-efficient and quiet. It has widely applications, such as construction, water pump, air compressor and etc .

Other models you can get here as follows:
TD173F(5HP), TD178F(7HP), TD186F(9HP), TD186FA(10HP), TD188F(12HP), TD192F(13HP).

Key Specifications

Model	TD170F	Brand	Talos Plus
Bore x Stroke	70 x 55mm	Displacement	211cc
Engine Type	Direct injection, diesel	Cylinder(qty.)	1
Rated Power	2.8kW(3.8hp)/3600rpm	Speed	3600RPM
Starting System	Recoil start	Cooling System	Air cooled
Fuel Consumption	280g/kW.h	Fuel Tank Capacity	2.5L
Lube Oil Capacity	0.75L	Fuel Type	Diesel
Compression Ratio	20 : 1	Shaft Output	Horizontal
Crankshaft	Key type	Shaft Diameter	19.05mm
N.W/G.W	28/30kg	Dimension(L x W x H)	42 x 38 x 47cm
Lube Type	SAE10W30(above CC grade)
Rotation Direction	Clockwise(view from flywheel)
Application	Construction, water pump, air compressor
Available Option	PTO shaft, electric starter, oil type air cleaner, package
