Quick Details
-
Dimension(L*W*H):
-
9466*3680*2550mm
-
Weight:
-
16500 KG
-
Drilling Depth:
-
25m
-
Mobility:
-
Crawler
-
Diameter of Drill Rod:
-
45,51 mm
-
Work Pressure:
-
100 - 190 bar
-
Engine:
-
cum.mins QSB6.7-C220
-
maximum torque:
-
1 765 Nm
-
Impact frequency:
-
42-52Hz
-
Impact power:
-
22 kW
-
Screw air compressor:
-
Enduro 25
-
Power:
-
179kW / 2 200 rpm
-
Air consumption:
-
9.6 m³/min, 10 bar
-
Drill pipe length:
-
3 660 mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Jialongli
-
Voltage:
-
24 VDC
-
Dimension(L*W*H):
-
9466*3680*2550mm
-
Weight:
-
16500 KG
-
Drilling Depth:
-
25m
-
Mobility:
-
Crawler
-
Diameter of Drill Rod:
-
45,51 mm
-
Work Pressure:
-
100 - 190 bar
-
Engine:
-
cum.mins QSB6.7-C220
-
maximum torque:
-
1 765 Nm
-
Impact frequency:
-
42-52Hz
-
Impact power:
-
22 kW
-
Screw air compressor:
-
Enduro 25
-
Power:
-
179kW / 2 200 rpm
-
Air consumption:
-
9.6 m³/min, 10 bar
-
Drill pipe length:
-
3 660 mm
Products Description

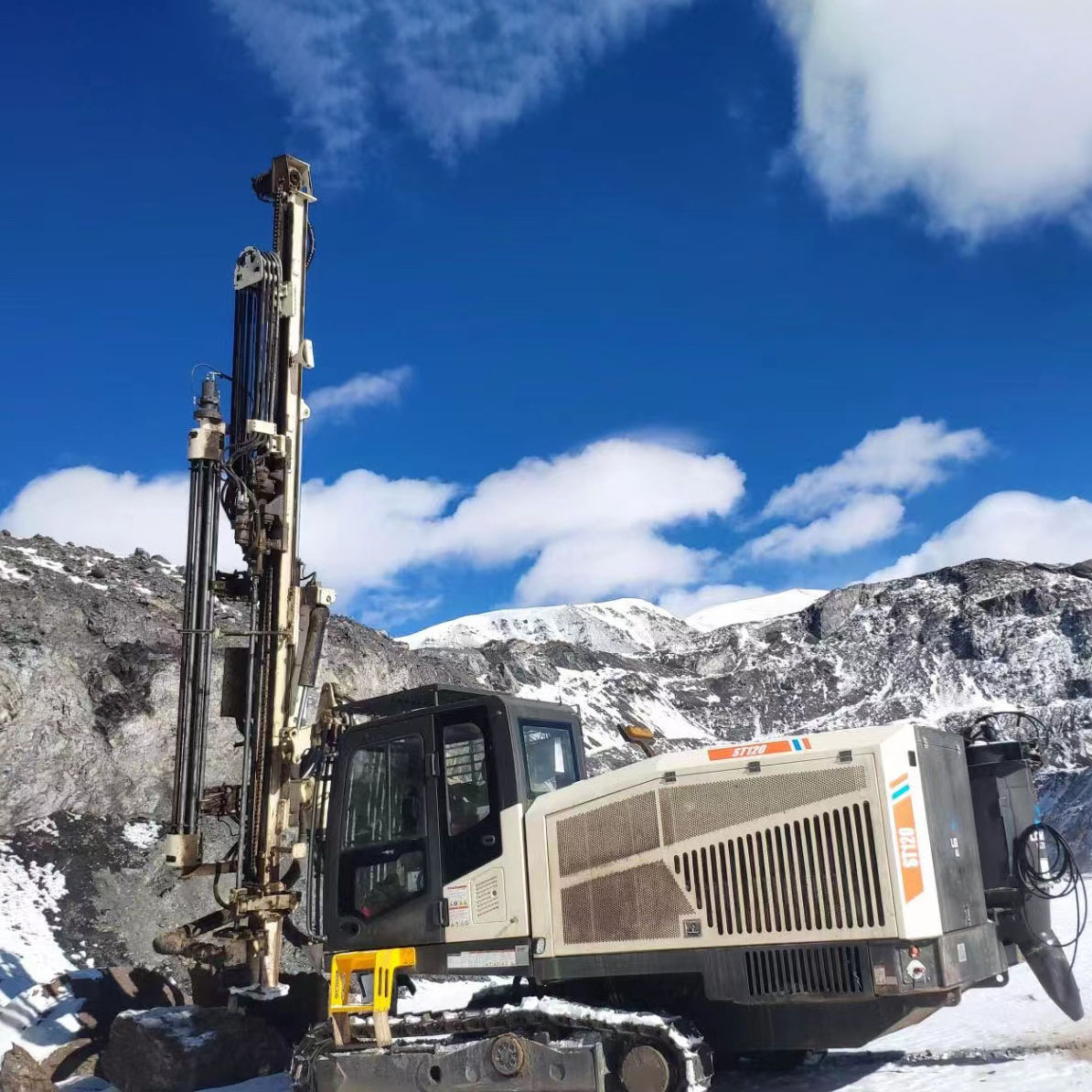

Drill Rig
Originated
from classic drill rig frame structure and system, with telescopic boom and oscillation, ST120 series surface top-hammerdrill rig can be widely used in various mining and construction applications. Equipped by high-performance rockdrill and drilling control system , together with the mechanical rod changer and anti-jamming design, which makes the drill rigs efficient and reliable, ST120 series drill rigs are the ideal choice for all kinds of project construction and mining.
Product Paramenters
|
Model
|
ST120
|
ST120H
|
|
Hole Diameter
|
76--115mm
|
76--127mm
|
|
Boom Type
|
Telescopic boom
|
Telescopic boom
|
|
Drilling Rod
|
T51
|
T51
|
|
Rod Length
|
3,660mm
|
3,660mm
|
|
Rock Drill Output
|
20 kW
|
22 kW
|
|
Engine Output
|
Cummins 164kW
|
Cummins 179kW
|
|
Air Flow & Pressure
|
8.1 m³/min @10bar
|
9.6m³/min @10bar
|
|
Transport Dimension
|
11,300*2,550*3,700mm
|
11,300*2,550*3,700mm
|
|
Weight
|
16500kg
|
16500kg
|
Details
High integrated efficiency
Rock Drill to ensure efficient drilling.
Low operating cost
Advanced drilling control system ensures drilling quality.
Load sensitive ulic system and air compressor management system greatly reduce fuel consumption.
Better Fuel Consumption and
Efficiency
Efficiency
Gullwing style covers make service much easier.
The design concept of MSAFETY FIRST" and ''ENVIRONMENTAL PR ECTION" ensures the construction of green mines.
