Quick Details
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
7050*2482*3118mm
-
Machine Weight:
-
10600 kg
-
Bucket capacity:
-
1.8 CBM
-
Marketing Type:
-
New Product 2022
-
Model:
-
LW300FN
-
Dump clearance at maximum lift:
-
2770~3260 mm
-
Max.breakout force:
-
130 kN
-
wheel base:
-
2600 mm
-
Min. turning radius over tyres:
-
5165 mm
-
Tread:
-
1850 mm
-
Height of hinge at maximum lift height:
-
3830 mm
-
Dimension (L*W*H):
-
7050*2482*3118 mm
-
Payment:
-
T/T, L/C
-
Key words:
-
Skid Steer Loader, Track Loader, Crawler Loader
Quick Details
-
Engine Brand:
-
Top Brand
-
Power:
-
92Kw
-
Brand Name:
-
Famous Brand
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
7050*2482*3118mm
-
Machine Weight:
-
10600 kg
-
Bucket capacity:
-
1.8 CBM
-
Marketing Type:
-
New Product 2022
-
Model:
-
LW300FN
-
Dump clearance at maximum lift:
-
2770~3260 mm
-
Max.breakout force:
-
130 kN
-
wheel base:
-
2600 mm
-
Min. turning radius over tyres:
-
5165 mm
-
Tread:
-
1850 mm
-
Height of hinge at maximum lift height:
-
3830 mm
-
Dimension (L*W*H):
-
7050*2482*3118 mm
-
Payment:
-
T/T, L/C
-
Key words:
-
Skid Steer Loader, Track Loader, Crawler Loader
Contact Way
Product Overview

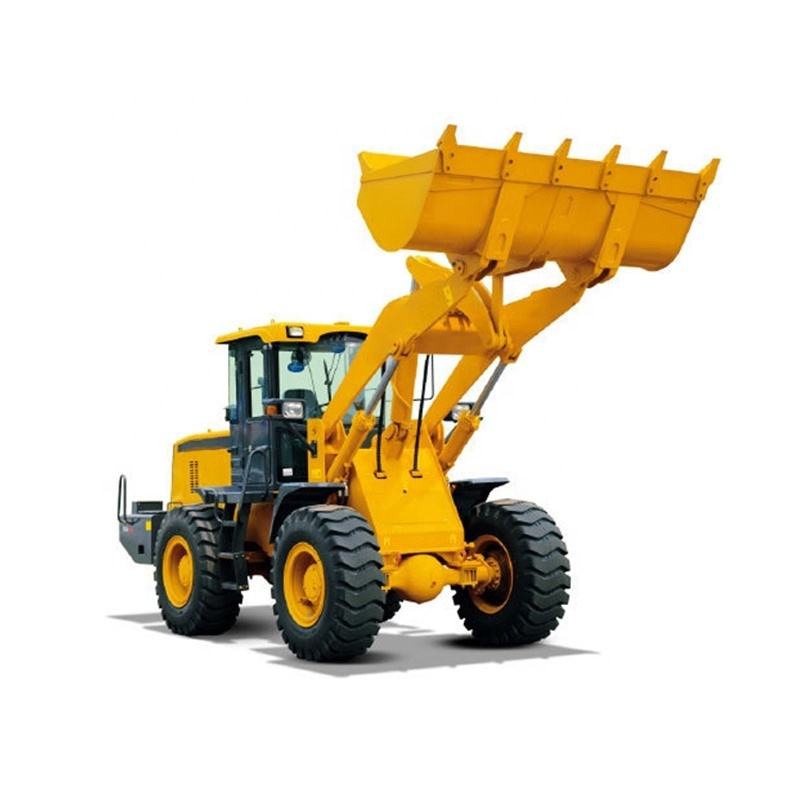

LW300FN Chinese 3Ton Wheel Front Loader with Spare Parts In Stock
Performance Highlights
1.With traction at ≥9t and breakout force at ≥13t. High adaptability, with turning radius at 5,165mm (tire center).
2. The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
3. LW300FN features high efficiency, energy-saving, and strong power.
4. The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.
5. The bucket is made of high strength material to realize high wear and impact resistance.
6. The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.
LW300FN Diversified attachments
1.Standard bucket:suitable for diversified working conditions.
2.Rock bucket: It's dedicated for handing of hard materials (such as rock), featuring good resistance against wear and impact.
3.Coal bucket: It's dedicated for handling of bulk materials (such as coal), featuring high bucket capacity and high efficiency.
4.Clamp: For grab and transport of various woods and tubing.
5.Bale grabber: It's used for the grabbing and handling of various light materials in farms, biological power plants, and paper mills.
1.With traction at ≥9t and breakout force at ≥13t. High adaptability, with turning radius at 5,165mm (tire center).
2. The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
3. LW300FN features high efficiency, energy-saving, and strong power.
4. The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.
5. The bucket is made of high strength material to realize high wear and impact resistance.
6. The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.
LW300FN Diversified attachments
1.Standard bucket:suitable for diversified working conditions.
2.Rock bucket: It's dedicated for handing of hard materials (such as rock), featuring good resistance against wear and impact.
3.Coal bucket: It's dedicated for handling of bulk materials (such as coal), featuring high bucket capacity and high efficiency.
4.Clamp: For grab and transport of various woods and tubing.
5.Bale grabber: It's used for the grabbing and handling of various light materials in farms, biological power plants, and paper mills.
Product Paramenters
|
Description
|
Unit
|
Parameter value
|
|
Rated operating load
|
kg
|
3000
|
|
Bucket capacity
|
m³
|
1.5~2.5
|
|
Machine weight
|
kg
|
10600±200
|
|
Dump clearance at maximum lift
|
mm
|
2770~3260
|
|
Reach at maximum lift
|
mm
|
1010~1210
|
|
Wheel base
|
mm
|
2600
|
|
Tread
|
mm
|
1850
|
|
Height of hinge at maximum lift height
|
mm
|
3830
|
|
Working height(fully lifted)
|
mm
|
4870
|
|
Max.breakout force
|
kN
|
130
|
|
Max.horse power
|
kN
|
95
|
|
Hydraulic cycle time-raise
|
s
|
5.5
|
|
Total hydraulic cycle time
|
s
|
10
|
|
Min. turning radius over tyres
|
mm
|
5165
|
|
Articulation angle
|
°
|
35±1
|
|
Gradeability
|
°
|
28
|
|
Tyre size
|
|
17.5-25-12PR
|
|
Overall machine dimension L×W×H
|
mm
|
7050×2482×3118
|
|
Model
|
|
WP6G125E22
|
|
Rated Power/Speed
|
kW/rpm
|
92/2200
|
|
Fuel Tank
|
L
|
170
|
|
Hydraulic Tank
|
L
|
170
|
|
Ⅰ-gear(F/R)
|
km/h
|
8/10
|
|
Ⅱ-gear(F/R)
|
km/h
|
13/30
|
|
Ⅲ-gear(F)
|
km/h
|
24/-
|
|
Ⅳ-gear(F)
|
km/h
|
40/-
|
