Quick Details
-
Weight:
-
400 KG
-
Drilling Diameter:
-
120-300mm
-
Drilling Depth:
-
Max.150m
-
Mobility:
-
portability
-
Engine Model:
-
Changchai 1115
-
Drilling method:
-
Mud Rotary Drilling
-
Drill pipe diameter:
-
51mm
-
Mud pump:
-
Water Pump
-
Max Drilling Depth:
-
150m
-
Drill rod length:
-
1500mm
-
Application:
-
Drill water well
-
Model:
-
HY-10A
-
MOQ:
-
1 Pcs
-
After-sales Service Provided:
-
Provided
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUAYAO
-
Dimension(L*W*H):
-
1.8*1.8*0.8m
-
Weight:
-
400 KG
-
Drilling Diameter:
-
120-300mm
-
Drilling Depth:
-
Max.150m
-
Mobility:
-
portability
-
Engine Model:
-
Changchai 1115
-
Drilling method:
-
Mud Rotary Drilling
-
Drill pipe diameter:
-
51mm
-
Mud pump:
-
Water Pump
-
Max Drilling Depth:
-
150m
-
Drill rod length:
-
1500mm
-
Application:
-
Drill water well
-
Model:
-
HY-10A
-
MOQ:
-
1 Pcs
-
After-sales Service Provided:
-
Provided
Product Information

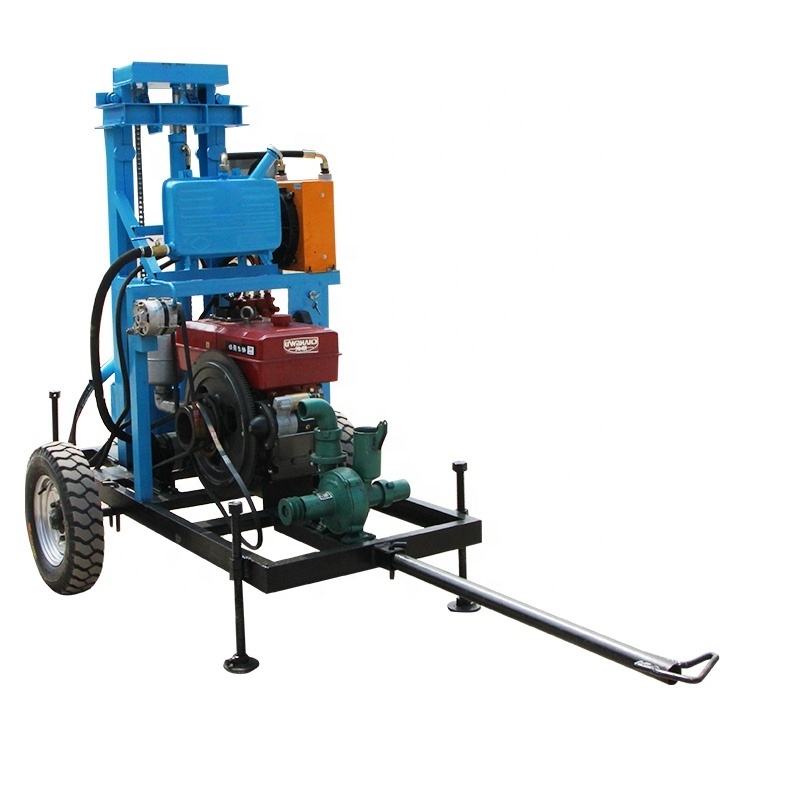

Huayao HY-10A Small Hydraulic Water Well Drilling Rig Machine
1. The drilling rig is a small hydraulic drilling rig, which is suitable for drilling wells in farms and homes.
2. The machine is suitable for soil layers with a small amount of rock. The maximum drilling depth is 120m, and the drilling diameter is 120-300mm. Three-wing alloy drill bits are used for soil drilling, and PDC drill bits are used for rock drilling.
3. The machine comes standard with a clean water centrifugal pump as a mud pump, and customers can also prepare other large flow mud pumps for drilling.
4. Standard configuration 22 horsepower electric start diesel engine, easy to start the engine, saving time and effort.
5. The machine is compact and equipped with a two-wheel traction chassis as standard, which can be hauled to the well-drilling area by vehicles.
Product Details
|
Model
|
HY-10A
|
|
Engine Power
|
16.2KW
|
|
Engine Model
|
Changchai 1115
|
|
Drill Pipe Diameter
|
51mm
|
|
Drill Pipe Length
|
1500mm
|
|
Drilling Depth
|
120-150m
|
|
Drilling Diameter
|
120-300mm
|
|
Applicable Geology
|
Clay, soil, soil geology with a small amount of rock
|
|
Dimension
|
1.8*1.8*0.8m
|
|
Weight
|
400KG
|
