- Product Details
- {{item.text}}
Quick Details
-
Type:
-
Wired
-
Brand Name:
-
Toputel/OEM
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Wired Industrial Router RG3000-E4
-
Interface:
-
4*1000M Ethernet Port, 2*1000M SFP Port
-
Color:
-
Black
-
Support:
-
VPN, QOS, FireWall,
-
Dimension:
-
271*154*33mm (excluding antenna & pendant)
-
Keywords:
-
Wired Industrial Router Network Switch
-
Model:
-
RG3000-E4
-
Power Consumption:
-
≤18W
-
Power Input:
-
DC12V 1.5A
-
Housing:
-
High strength metal housing
Quick Details
-
Max. LAN Data Rate:
-
1000Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
NO
-
Type:
-
Wired
-
Brand Name:
-
Toputel/OEM
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Wired Industrial Router RG3000-E4
-
Interface:
-
4*1000M Ethernet Port, 2*1000M SFP Port
-
Color:
-
Black
-
Support:
-
VPN, QOS, FireWall,
-
Dimension:
-
271*154*33mm (excluding antenna & pendant)
-
Keywords:
-
Wired Industrial Router Network Switch
-
Model:
-
RG3000-E4
-
Power Consumption:
-
≤18W
-
Power Input:
-
DC12V 1.5A
-
Housing:
-
High strength metal housing
Product Description
Toputel Super Stable 4*1000M Ethernet 2*1000M SFP Gigabit Wired Industrial enterprise router Ethernet switch

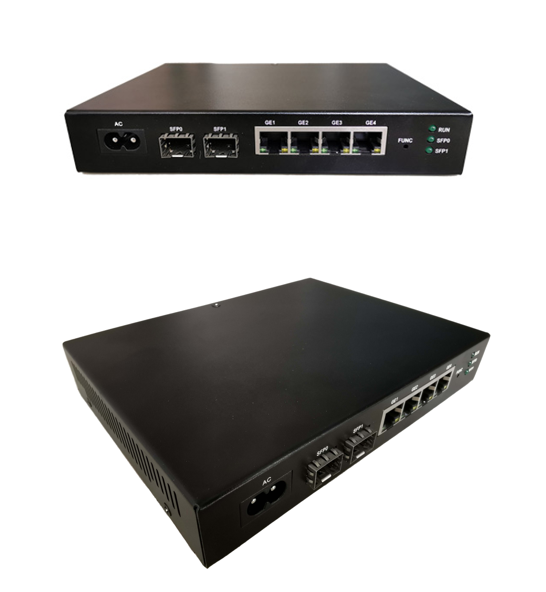

Toputel RG3000-E4 Industrial Wired Router
, integrating
Routing/Switching/Securit
y and other network application
，with 4 Of 10/100/1000M Ethernet ports, 2* 100/1000M SFP optical ports, Supports direct docking with GPON OLT.
Flagship configuration, industrial design enable it to build high-speed and stable wired communication network easily.
，with 4 Of 10/100/1000M Ethernet ports, 2* 100/1000M SFP optical ports, Supports direct docking with GPON OLT.
Flagship configuration, industrial design enable it to build high-speed and stable wired communication network easily.
Supports digital data acquisition, provide users with d long- distance data transmission function by using operator wired network or private network
Benefit from its industrial design and strict selection of components, the device can withstand high & low temperature -20～+75°C, work stably in complex operation condition.
It is already widely applied in many scenarios such as Finance, Transportation, Security, Water Management, Environmental Protection, Energy Management, Postal, Meteorology and the next generation of the IoT field.
Benefit from its industrial design and strict selection of components, the device can withstand high & low temperature -20～+75°C, work stably in complex operation condition.
It is already widely applied in many scenarios such as Finance, Transportation, Security, Water Management, Environmental Protection, Energy Management, Postal, Meteorology and the next generation of the IoT field.
Specification
|
Model
|
RG3000-E4
|
|
Fixed port
|
4*1000M Ethernet Port；
2*1000M SFP Port； 1*FUNC Button； 1*100-240VAC,50/60Hz Power Port |
|
Cellular Antennas
|
/
|
|
Network Type
|
/
|
|
WIFI
|
/
|
|
Dimension
|
271*154*33mm (excluding antenna & pendant)
|
|
Power Consumption
|
≤18W
|
|
Power Input
|
DC12V 1.5A
|
|
Housing
|
High strength metal housing
|
|
IP Degree
|
IP30
|
|
Operating humidity
|
10～95%RH
|
|
Operating temp.
|
-40～+85°C
|
|
Storage Temp.
|
-40～+85°C
|
|
GPON ONU
|
Support when GPON optical module is inserted in the optical port
|
|
Installation
|
desktop、wall-mounted、din rail
|
|
Application
|
Utility, Electricity Management, Security, Energy Management, Traffic & Transportation, Environmental protection, Finance, Media, Meteorology
|
Main Feature
4 Port RJ45 2 SFP RG3000-E4 Gigabit Industrial Wired Router
|
Supports 4 of 10/100/1000M ethernet ports, WAN/LAN can be configured freely
|
Supports ACL and NAT functions；
|
|
Supports 2 of 100/1000m SFP optical port, providing direct access to the optical network and enables full switching with ethernet ports.
|
Supports the HQoS mechanism that provides hierarchical scheduling based on multi-level queues and distinguishes services and users, and optimizes the transmission of video streams；
|
|
can also directly insert the GPON module to interconnect with GPON OLT as an ONU
|
Supports firewall, packet filtering, and URL filtering
|
|
Supports multiple protocols: TCP/IP, UDP, HTTP, TELNET, ICMP, DHCP, PPPOE, DNS, DDNS, etc
|
Supports VPN functions such as GRE, L2TP, IPSEC, PPTP, EOIP, and MPLS；
|
|
Supports static routes and RIP/OSPF/ISIS/BGP routing protocols
|
Supports 802.1Q VLAN and QinQ function
|
|
Supports MPLS service carrying, processing, and forwarding, and can be flexibly deployed in various comprehensive carrying solution scenarios
|
Supports link detection functions for example DLDP, and can quickly switch to the backup link based on the detection result
|
|
Supports MPLS LDP dynamic protocol
|
Supports logging；
|
|
Supports L2 VPN (PWE3 & VPLS) and L3 VPN；
|
Supports port mirroring；
|
|
Supports QoS protocols such as priority mapping, traffic policing, traffic shaping, congestion management, and rate limiting
|
Supports CLI, WEB, and SNMP/TR069 centralized NMS；
|
|
Supports version upgrade and rollback；
|
|
Packing & Delivery
Neutral Packing: 1unit/packing box; 10units/carton, OEM packing is acceptable (quantity more than 100 units)
