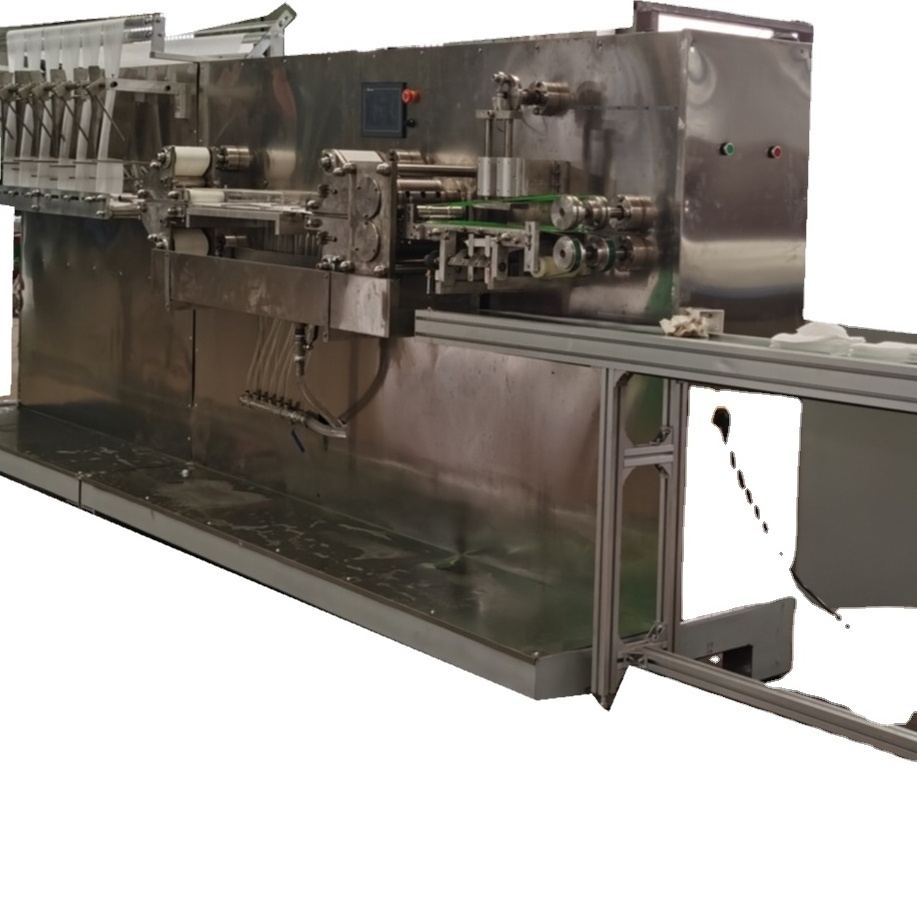

Fully Automatic Wet Tissue Baby Wipes Making Machine

Ø Equipment introduction:

This machine is a multi-functional folding and slicing equipment for the production of " 4 0-120 large package stacked wet wipes and continuous draw-up wet wipes".

Ø Production process:

l Stacked wet wipes: raw materials on the machine → slitting → the width direction N, V folding -shaped folding → adding liquid → cutting → stacking → product output → product output-manual transfer to another packaging machine.

Ø Equipment configuration:

1. Adopt Delta inverter and PLC control system;

2. Automatic N, V folding and cutting;

3. Spray liquid adding mechanism (controllable water volume);

4. Automatic counting code material mechanism (can be set);

5 . Non-woven automatic cutting mechanism (2 sets).

Ø Technical parameters:

Specification model: YWJ-QS-QⅡ 10/12

Finished product unfolded size: length 150--2 0 0 mm × width 1 6 0--2 0 0 mm

Finished product folding size: length 150-2 0 0mm × width 6 0-1 00 mm

Folding method: The length is cut directly and continuously stacked; the width direction is V, N folding

Applicable raw materials: coiled, 45-90g square meter spunlace non-woven fabric

Raw material width: ΦLess than or equal to 1200mm

double original paper holder

Inner diameter of raw paper core: Φ 76.2mm

Processing capacity: 1800-2 0 00 pieces/min

Total power required: 380v, 50hz, 5.5 kw

Machine weight: 1.5 - 2T

Dimensions: length 7 000 × width 325 0 × height 17 00mm
