Quick Details
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
14000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Online support
-
Brand Name:
-
Howo
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
7356*2496*3170 mm
-
Product name:
-
Dumper Truck
-
Color:
-
Red White Yellow Orange Bule
-
Driving type:
-
Left Hand Drive
-
Keywords:
-
Dump Truck Dumper Truck Tipper Truck
-
Cabin:
-
HW76 Comfortable Cabin
-
Steering:
-
Power Steering
-
Horse power:
-
290/330/340/360/380/420
-
Max. speed (km/h):
-
80km/h
-
Warranty:
-
12 Months
-
Axles:
-
3 Axles
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 2
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
14000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Online support
-
Brand Name:
-
Howo
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
7356*2496*3170 mm
-
Product name:
-
Dumper Truck
-
Color:
-
Red White Yellow Orange Bule
-
Driving type:
-
Left Hand Drive
-
Keywords:
-
Dump Truck Dumper Truck Tipper Truck
-
Cabin:
-
HW76 Comfortable Cabin
-
Steering:
-
Power Steering
-
Horse power:
-
290/330/340/360/380/420
-
Max. speed (km/h):
-
80km/h
-
Warranty:
-
12 Months
-
Axles:
-
3 Axles

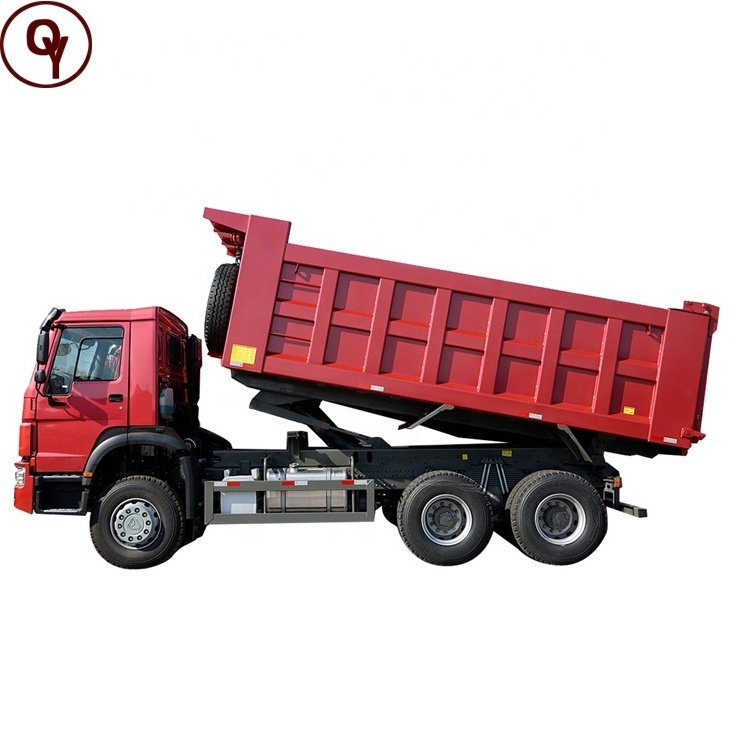

Sinotruk New Design Howo TIPPER DUMP Truck
Our Main Products Heavy Trucks and Construction Machinery. include Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for our clients with good quality and competitive price.
.
Product Description
Specification
|
Chassis Model
|
ZZ3257N3841W
|
|
Driving Type
|
LHD (RHD is optional)
|
|
Cabin
|
HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with
heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber. |
|
Engine
|
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine Engine model: WD615.69, Euro 2, 336 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
|
Transmission
|
HW19710, 10F & 2R, with PTO
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
|
Steering
|
ZF power steering, modol ZF8118, hydraulic steering with power assitance
|
|
Front Axle
|
HF9
Steering with doubleT-cross section beam |
|
Rear Axle
|
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:5.73 |
|
Propeller Shaft
|
Double universal joint propeller shaft with gear-shaped coupling flange
|
|
Chassis
|
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
|
Brake
|
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
|
Electrics
|
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
|
Tyres
|
12.00R20, radial tyres with one spare tyre
|
|
Fuel Tank
|
300L
|
|
Cargo Body
|
5800*2300*1500 mm, 20 CBM, Floor 8mm Side 6mm
|
|
Overall Dimension
|
8800*2550*3450mm
|
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3
working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
