Quick Details
-
Brand Name:
-
TZT
-
Model Number:
-
TZTA5-SDD
-
Product name:
-
High Technology XRF Gold testing machine for pawn shops and jewelry
-
Function:
-
Metal purity analysis
-
Type:
-
Xrf Analyzer
-
Test material:
-
Metal gold silver alloy
-
Measuring range:
-
S to U
-
Accuracy:
-
0.01%-0.03%
-
Feature:
-
Easy Operation
-
Delivery time:
-
7-15days
-
Application:
-
Pawn shop jewellery manufacture
Quick Details
-
Warranty:
-
1 YEAR, 1 Year
-
Power:
-
150W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TZT
-
Model Number:
-
TZTA5-SDD
-
Product name:
-
High Technology XRF Gold testing machine for pawn shops and jewelry
-
Function:
-
Metal purity analysis
-
Type:
-
Xrf Analyzer
-
Test material:
-
Metal gold silver alloy
-
Measuring range:
-
S to U
-
Accuracy:
-
0.01%-0.03%
-
Feature:
-
Easy Operation
-
Delivery time:
-
7-15days
-
Application:
-
Pawn shop jewellery manufacture
Preface:
In the field of precious metal detection, traditional analysis methods such as litmus test method, cupellation, fire assay method belongs to destructive testing, such as a consuming and dangerous, and sample preparation process takes longer.And X-ray fluorescence spectrometry technology is relatively mature, can achieve real-time analysis, nondestructive testing, does not require any consumables, and precision can reach four digits after the decimal point, is the development direction of affordable precious metal detection technology in our country.West that gold and silver detector manufactured technology reference is X ray fluorescence spectrometry this advanced precious metals testing technology.
Our machine equipped with imported top SDD,SI PIN detector, the use of aircraft design, high-end atmosphere, with research and development of more than a dozen patents, outstanding performance, in line with the new national standard GB18043-2013, can be accurate detection of gold and silver jewelry and most of other metal elements and azardous substances.

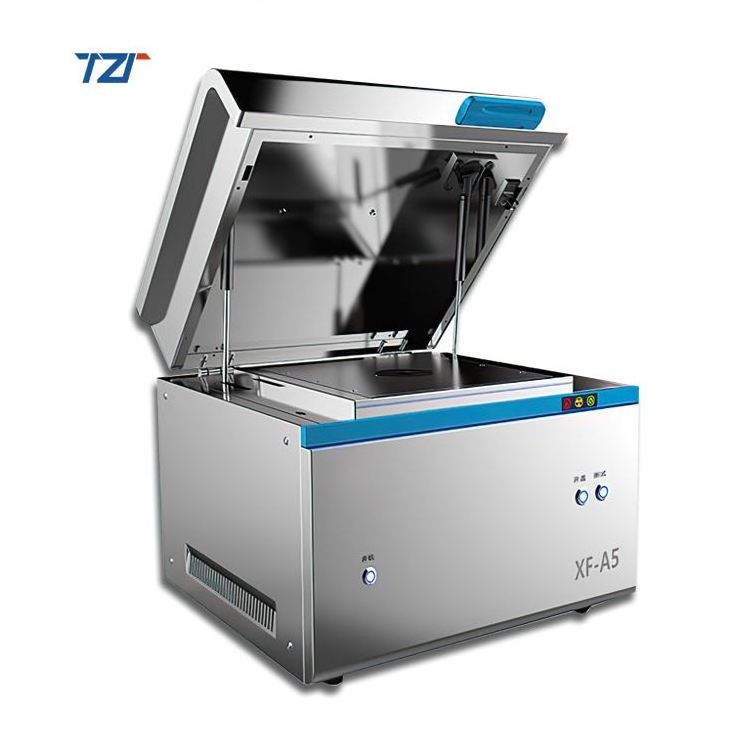

This precious metal detector TZTA5-SDD is one of the X-ray fluorescence spectrometers independently developed and produced by Tanzhi technology based on years of precious metal detection technology and experience. It is a high-end all element detector with high-end configuration. It is equipped with imported SD SD and Si PIN detector. It adopts aviation design and high-end atmosphere. It has more than ten R & D patents. It has outstanding performance, small size and light weight. It meets the new national standard gb18043-2013, and can accurately detect precious metals such as gold and silver jewelry.
Technical parameters:
| Name: | TZTA5-SDD Precious Metal Gold Testing Machines Analyzer X Ray Spectrometer Machine Tester Xrf Metal Heavy Element Spectrum | |||
| Testable elements: | Ag, Au,Fe, Co, Ni, Cu, Zn, Se, Pd, Rh, Ru, Pt, Ir, Pb and etc(70 elements) | |||
| Equipment principles: | X fluorescence energy dispersion | Test area: | 1-2mm spot +<40micron | |
| Built-in capacitive touch LED: | External 22 inch HD display | Main structure: | High strength metal bracket + aluminum alloy shell | |
| Accuracy: | ±0.01% | Voltage: | 100-240v | |
| Detector: | SDD (Import) | Power: | 150w | |
| Resolution: | 130±5 eV | Operating systerm: | Window 7 | |
| Work enviroment: | - 11 ~ 46 °C | Advantages: | excellent cooling system | |
| Battery support:: | no | Intelligence: | automatic protection | |
| Label/normal/thermal printer: | support | weight: | About 38kg | |
|
Built-in computer: |
yes | size: | 450×350×400mm | |
Product advantage:
-
High cost performance
Can fast accurate detection of various precious metal, widely applied! -
Nondestructive testing
Will not cause any damage to measured sample jewelry and so on. -
Operation is simple and smart
Automated testing without a unique key testing capabilities, with professional personnel -
Fast for Testing
Qualitative 3 seconds, 7 seconds can be intuitive results. -
Easy to Bring
The integration of design, small footprint, easy to carry and management. -
Safe and durable
Have anti-radiation function, the machine more than 10 years of life -
High precision
PPM level accuracy, reliable testing data, plus or minus 0.01% of the detection precision -
The operational safety
Equipped with radiation protection devices, and active protection operation safety.
Standard configuration:
- Active radiation protection
- Global fault diagnosis
- Expansion wire and auxiliary support
- High voltage and over voltage protection
- Lifting pressure start
- Light tube of protection
- Expanded screen
Application fields:
•jewelry store •Pawn •gold and silver COINS, collectors • jewelry factory • jewelry school
• professional laboratory • quality inspection institutions •metal handicraft industry •Precious metals smelting, •Purification of precious metals, •Precious metals recycling, •geoscientific prospecting
•Industry, rare metals •alloy material detection
