Quick Details
-
Warranty(Year):
-
2-Year
-
Color Rendering Index(Ra):
-
80
-
Lamp Luminous Flux(lm):
-
200
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 70
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BaoLaiYa
-
Model Number:
-
BLY-8770
-
Product name:
-

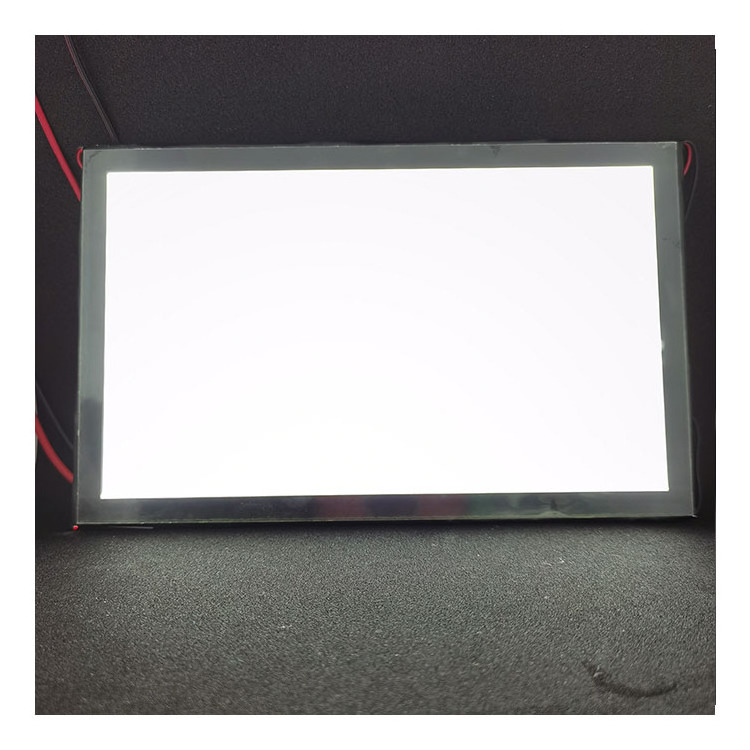

ultra thin Light Guide Plate led backlight
-
Size:
-
Customizable
-
Emitting Color:
-
all of RGB color available(white,red,blue,green,purple,pink)
-
Shape:
-
Round, flat, square, etc ,can custom
-
Brightness:
-
80~300mcd,500~1000mcd,1500~3000mcd
-
LED:
-
DIP ,SMD
-
Power Consumption Per Piece:
-
0.045-0.06w
-
Quality Guarantee:
-
2 years
-
Others:
-
Multi color and size&shape as per customer's require design
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
85
-
Application:
-
indoor, LCD Module ,Logo ,etc .
-
Lamp Body Material:
-
Aluminum,PMMA
-
Warranty(Year):
-
2-Year
-
Color Rendering Index(Ra):
-
80
-
Lamp Luminous Flux(lm):
-
200
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 70
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BaoLaiYa
-
Model Number:
-
BLY-8770
-
Product name:
-
ultra thin Light Guide Plate led backlight
-
Size:
-
Customizable
-
Emitting Color:
-
all of RGB color available(white,red,blue,green,purple,pink)
-
Shape:
-
Round, flat, square, etc ,can custom
-
Brightness:
-
80~300mcd,500~1000mcd,1500~3000mcd
-
LED:
-
DIP ,SMD
-
Power Consumption Per Piece:
-
0.045-0.06w
-
Quality Guarantee:
-
2 years
-
Others:
-
Multi color and size&shape as per customer's require design
Products Description
|
size&shape
|
customized
|
|
Type of lamp beads
|
SMD lamp, Plug-in lamp ,Binding lamp
|
|
Lamp Colour
|
R,W,Y,YG,O,B,G,RB,RG,BG,RGB
|
|
backlight Thickness
|
(1.0mm/1.5mm/2.0mm/2.5mm/3.0mm/3.5mm/4.0mm/4.5mm/5.0mm) +0.23-3mm the thickness of diaphragm
|
|
connection
|
PCB self contained Pin, PCB out Pin ,Plug-in lamp-Pin , Chip lamp-terminal wire,Chip lamp Lead ,FPC
|
|
The wire connction pin specification
|
Length&quantity both can be customized according to demand
|
|
White LED Lights Voltage
|
2.8V to 3.4V ,12V ,24V
|
|
Color LED Lights Voltage
|
1.8V to 2.4V ,12V ,24V
|
