Quick Details
-
Brand Name:
-
Haitun
-
Model Number:
-

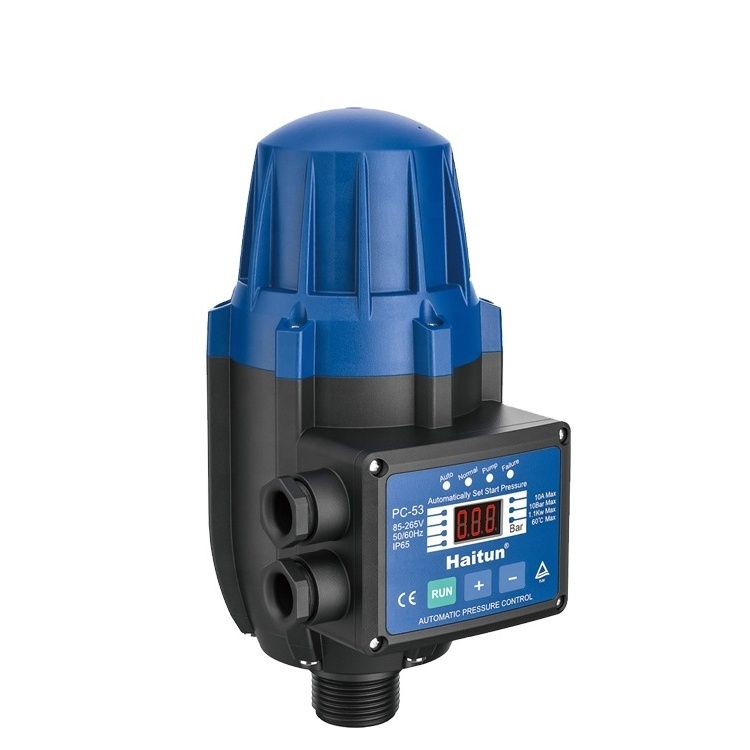

PC-53
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
10bar
-
Connection:
-
G1"
-
Protection rating:
-
IP65
-
Starting pressure setting:
-
1.5bar 2.2bar
-
Frequency:
-
50/60Hz
-
Application:
-
Pressure Control System
-
Max.working pressure:
-
16bar
-
Max.current:
-
AC 16(4)A
-
Warranty:
-
One Year
-
Type:
-
Smart Controller
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Haitun
-
Model Number:
-
PC-53
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
10bar
-
Connection:
-
G1"
-
Protection rating:
-
IP65
-
Starting pressure setting:
-
1.5bar 2.2bar
-
Frequency:
-
50/60Hz
-
Application:
-
Pressure Control System
-
Max.working pressure:
-
16bar
-
Max.current:
-
AC 16(4)A
-
Warranty:
-
One Year
-
Type:
-
Smart Controller
-
Certification:
-
CE
Technical parameters:
TECHNICAL DATA:
1. Starting Pressure Range:0.5-6.0 bar
2. Max.Rated Current:10A
3. Max.Allowable Pressure :10 bar
4. Rated Voltage:85V-265V
5. Frequency:50Hz/60Hz
6. Max. Ambient Temperature:40℃
7. Max.Liquid Temperature:60℃
8. Protection Degree:IP65
2. Max.Rated Current:10A
3. Max.Allowable Pressure :10 bar
4. Rated Voltage:85V-265V
5. Frequency:50Hz/60Hz
6. Max. Ambient Temperature:40℃
7. Max.Liquid Temperature:60℃
8. Protection Degree:IP65
Product Description
DESCRIPTIONS:
1. Stop and start the pump automatically
2. Stop the pump in the case of water shortage
3. After power cut off, restart the pump automatically when the power on
4. Manual forced start
5. Dual voltage work(AC85-265V), suitable for the voltage of most countries in the world.
6. Over-pressure protection, stop the pump automatically when the system pressure exceeds 10 bar.
7. Automatically restart after water shortage, the restart interval time is 1 minute, 30 minutes, 1hour, and then 1 hour recycle.
8. Anti-stick protection, the control will start the pump automatically by 1 time in 48hours to prevent the pump get stuck in
condition of long time no use.
9. With pressure sensor and LED display, to manager the system pressure value real-time.
10. Built-in two working mode:
a) Automatic mode: The control can adjust the starting pressure according to the pressure in the pipe and real-time monitoring.
The higher the pipe pressure, the higher the start pressure, the lower the pipe pressure, the lower the start pressure. No need
manual set, with this function, can avoid the problem occur because of wrong set of start pressure, such as the start pressure set
not match with the pump lift will make the pump not start normally.
Appalied to the any pump that the head from 10m-98m, confirm to rated voltage, max. current and max. power. Especially applied to
multiple pressure mixed superimposed systems (such as tap water pressure or other booster pumps, etc.).Compare with the
traditional pressure controller, it can reduce the occurrence of failure, thus reducing after-sales cost and more intelligent.
b) Normal mode: manually set starting pressure, 0.5-6.0bar adjustable, wide range of adjustment, easy to operate.
11. Joint screw: G1”male
12. It can be configured according to customer’s needs.
2. Stop the pump in the case of water shortage
3. After power cut off, restart the pump automatically when the power on
4. Manual forced start
5. Dual voltage work(AC85-265V), suitable for the voltage of most countries in the world.
6. Over-pressure protection, stop the pump automatically when the system pressure exceeds 10 bar.
7. Automatically restart after water shortage, the restart interval time is 1 minute, 30 minutes, 1hour, and then 1 hour recycle.
8. Anti-stick protection, the control will start the pump automatically by 1 time in 48hours to prevent the pump get stuck in
condition of long time no use.
9. With pressure sensor and LED display, to manager the system pressure value real-time.
10. Built-in two working mode:
a) Automatic mode: The control can adjust the starting pressure according to the pressure in the pipe and real-time monitoring.
The higher the pipe pressure, the higher the start pressure, the lower the pipe pressure, the lower the start pressure. No need
manual set, with this function, can avoid the problem occur because of wrong set of start pressure, such as the start pressure set
not match with the pump lift will make the pump not start normally.
Appalied to the any pump that the head from 10m-98m, confirm to rated voltage, max. current and max. power. Especially applied to
multiple pressure mixed superimposed systems (such as tap water pressure or other booster pumps, etc.).Compare with the
traditional pressure controller, it can reduce the occurrence of failure, thus reducing after-sales cost and more intelligent.
b) Normal mode: manually set starting pressure, 0.5-6.0bar adjustable, wide range of adjustment, easy to operate.
11. Joint screw: G1”male
12. It can be configured according to customer’s needs.
OPTIONS:
1. Color
2. G1”plastic pipe joint for a quick connection to water pump
3. Power cable length
2. G1”plastic pipe joint for a quick connection to water pump
3. Power cable length
Product packaging
|
BOX SIZE(CM)
|
15.3×11.5×23
|
|
CARTON SIZE(CM)
|
48.5×48×25
|
|
PCS/CTN
|
12
|
|
N.W.(KGS)
|
12.48
|
|
G.W.(KGS)
|
14.50
|
|
20GP QUANTITIES(PCS)
|
5784
|
