Quick Details
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
PT70-D
-
Brake(F/R):
-
Drum/Drum
-
Product Name:
-
4 Stroke Engine 49cc
-
Color:
-
Optional
-
Wheelbase(mm):
-
1200
-
Compression Ratio:
-
8.8:1
-
Max.Power(Km/r/min):
-
2.0/7500
-
Max.Torque(N.m/r/min):
-
2.5/6000
-
Ignition Mode:
-
CDI
-
Start Mode:
-
Electric/Kick
-
Brake Mode:
-
Drum /Drum
Quick Details
-
Displacement:
-
50CC
-
Max. Speed:
-
40 - 60km/h
-
Brand Name:
-
Pantera
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
PT70-D
-
Brake(F/R):
-
Drum/Drum
-
Product Name:
-
4 Stroke Engine 49cc
-
Color:
-
Optional
-
Wheelbase(mm):
-
1200
-
Compression Ratio:
-
8.8:1
-
Max.Power(Km/r/min):
-
2.0/7500
-
Max.Torque(N.m/r/min):
-
2.5/6000
-
Ignition Mode:
-
CDI
-
Start Mode:
-
Electric/Kick
-
Brake Mode:
-
Drum /Drum

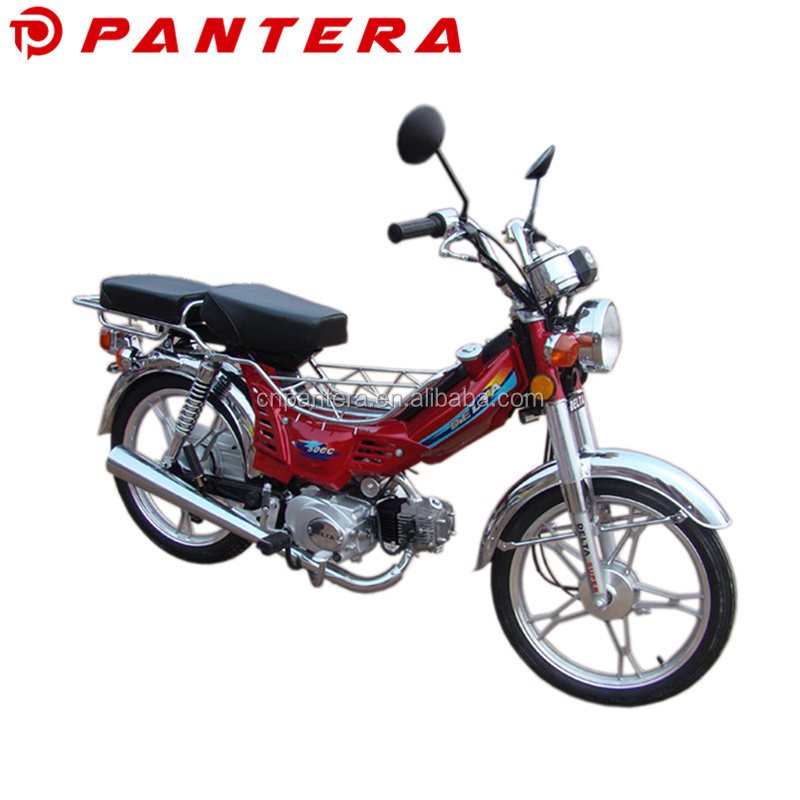

Mini 4 Stroke Engine 49cc Motorcycle Cheap Delta Motorbike from Chongqing
Overview
Different Angles
Details
| Model | 50cc | 110cc |
| Dimension (mm) | 1830x750x1065 | 1830x750x1065 |
| Wheelbase(mm) | 1200 | 1200 |
| Engine Type | 1-cylinder,4-stroke,air-cooled | 1-cylinder,4-stroke,air-cooled |
| Displacement | 49 | 107 |
| Compression Ratio | 8.8:1 | 9.1:1 |
| Bore x Stroke (mm) | 39×41.4 | 52.4×49.5 |
| Max.Power(Km/r/min) | 2.0/7500 | 5.5/8500 |
| Max.Torque(N.m/r/min) | 2.5/6000 | 6.5/5500-6000 |
| Ignition Mode | CDI | CDI |
| Start Mode | Electric/Kick | Electric/Kick |
| Net Weight(kg) | 78 | 78 |
| Min.Ground Clearance(mm) | 150 | 150 |
| Brake Mode | Drum /Drum | Drum /Drum |
| Tire Size(FR.) | 2.20-17 | 2.20-17 |
| Tire Size(RR.) | 2.50-17 | 2.50-17 |
| Fuel Tank Capacity(L) | 4 | 4 |
Personal Customization:
1.Front brake:drum brake/disc brake
2.Wheel:spoke wheel/alloy wheel
3.Speedmeter:normal speedmeter/digital speedmeter
4.Displacement can be changed from 50cc to 125cc
5.Color is optional too
Warranty:
We can offer one year warranty or engine 6000kms. And 1% easy-damaging spare parts are provided for free
| easy broken spare parts list: | |
| No. | spare parts name |
| 1 | carburetor |
| 2 | electric parts |
| 3 | headlight assy |
| 4 | meter assy |
| 5 | L. front turning light |
| 6 | R. front truning litht |
| 7 | L. rear turning light |
| 8 | R. raer turning light |
| 9 | tail light assy |
| 10 | front and rear inner tube |
| 11 | rearview mirror |
| 12 | pasoes |
| 13 | chain |
| 14 | handle switch |
| 15 | handle bar |
| 16 | cable |
| 17 | battery |
| 18 | seat |
| 19 | rear shock |
| 20 | footrest |
| 21 | starting arm |
| 22 | gear pedal |
| 23 | muffler |
|
Note: the above spare parts packaged separately, carton packaging, standard mark |
|
SKD steel frame + cartoon or wooden frame
CKD wooden case or cartoon
SKD means semiknocked down and CKD means complete knocked down. They are the different package ways. Both of them will take less import tariffs and frieight than finished product.
