FarmaSino good quality disposable electrode ecg 3 leads ecg cable holter ecg

FarmaSino good quality disposable electrode ecg 3 leads ecg cable holter ecg

FOB Reference Price: Get Latest Price

≥10 Pieces

US $550

≥100 Pieces

US $540

≥1000 Pieces

US $500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: FarmaSino/FarmaMed/BodTrust/OEM

Model Number:: ECG-3312 B

Quality Certification:: CE ISO

Product name:: ECG Machine

Certificate:: ISO CE

Application:: Hospital

working mode:: Manual / Auto / Physical Examination / Storage

Power supply:: 50/60Hz

Frequency response:: 0.05~ 160Hz (-3db)

Time constant:: ≥3.2s

lead acquisition:: 12bit/1000Hz (synchronously 12 leads)

Quick Details

Warranty:: 3 years

After-sale Service:: Online technical support

Place of Origin:: China

Brand Name:: FarmaSino/FarmaMed/BodTrust/OEM

Model Number:: ECG-3312 B

Quality Certification:: CE ISO

Product name:: ECG Machine

Certificate:: ISO CE

Application:: Hospital

working mode:: Manual / Auto / Physical Examination / Storage

Power supply:: 50/60Hz

Frequency response:: 0.05~ 160Hz (-3db)

Time constant:: ≥3.2s

lead acquisition:: 12bit/1000Hz (synchronously 12 leads)

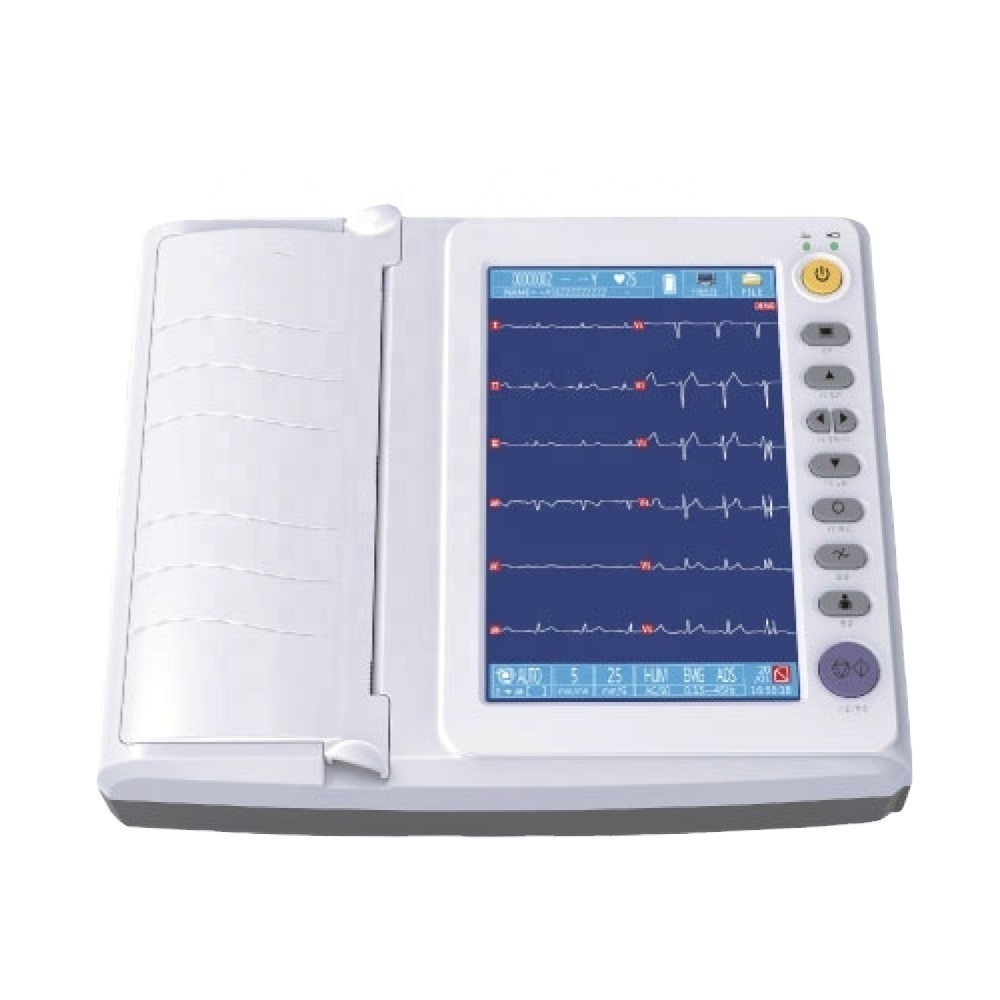

12 Channel Electrocardiograph
Model: ECG 3312 B

* Compact in size, easy and direct operation, portable
* Accurate pace pulse identification and automatic analysis function
* Four working modes: Manual / Auto / Physical Examination / Storage
* 12 leads simultaneous waveforms display
* 7" 800x480 graphic 7 inch color screen with Alphabet keyboard input (only for ECG-3312B)
* 10" 800x480 graphic 10 inch color touch screen (only for ECG-3312G) * 215mm, 12 channle format recording
* Built-in USB, RS232 interface, ECGNET software optional
* Adapt to 110-230V, 50/60Hz AC power supply
* Advanced [Freeze] function
* Built-in rechargeable Li-ion battery
* 250 patient information storage (Extendable)
* USB interface allows net transmission, USB flash disk
and USB printer connected

High accuracy thermal printing, adapt to 215mm
roll paper and 210x140mm Z-fold pape

Technical Specification
lead acquisition	12bit/1000Hz (synchronously 12 leads)	Time constant	≤3.2s
Work mode	Manual / Auto / Physical Examination / Storage	Frequency response	0.05~ 160Hz (-3db)
Noise level	＜15pVp-p	Inter-channel interference	≤0.5mm
Sensitivity	Auto, 2.5, 5, 10, 20, 40mm/mV	CMMR	>100dB (with AC Filter)
Input impedance	s50MD	Paper speed	6.25, 12.5, 25, 50mm/s (±3%)
Input circuit current	＜0.05pA	Paper	215mm Roll Paper
Patient current leakage	＜10pA	Communication	RS232/ USB port
Calibrating voltage	1mV±2%	Voltage tolerance	s±500mV
Filter	• AC Filter: 50Hz / 60Hz • EMG Filter: 25Hz/45Hz • Anti-Drift Filter: 0.15Hz (Adaptive)	Recording mode	• 3ch+++,6ch, 6ch+,12ch • Default Man. Mode is 3 ch++ format • Default Auto.Mode is 12 ch format
Input circuit	•Floating; Protection circuit against •Defibrillator effect	Power supply	• AC 110-230V (±10%), 50/60HZ (±1 Hz), 60VA • DC Built-in rechargeable battery, 14.4V (4400mmAh)
Dimension / Weight	370mmx300mmx85mm / 4.8Kg (ECG-3312B) 370mmx300mmx85mm / 5.8Kg (ECG-3312B)	Lead	Standard 12 leads
All specifications are subject to change without prior notice

Product Package
Main unit	1 set	Grounding cable	1 set
Patient cable	1 set	Fuse	2 pcs
Limb electrodes	1 set (4pcs)	Paper axis	1 pcs
Chest electrodes	1 set (4pcs)	Printing paper	1 roll
Power cable	1 set	Operation manual	1 copy

FarmaSino

FarmaSino is a leading pharmaceutical and medical products company in China. It is mainly engaged in the R&D, manufacturing and distribution of pharmaceutical and medical products. Its annual export volume is around 200 million USD and the annual turnover is more than one billion RMB . We have set up the stragedy of diversified management and development since our foundation in 2008 and devoted to establishing the business innovation, industrialization and branding.

Now FarmaSino has achieved a good reputation in pharmaceuticals and medical fields by cooperating sincerely with global customers from more than 100 countries and regions , also pursuing elaborative service persistently.

We have established strong cooperation with many excellent manufacturers in China, many of them are ISO9001 or ISO13485 approved factories and nearly all the products are CE approved .
