Name:
upright dust collector
Brand: YITE
It is an all-in-one machine composed of the air filter of the dust collector, which belongs to the field of ultra-fine dust collector
- Product Details
- {{item.text}}
Quick Details
-
diameter:
-
325 mm
-
inner diameter:
-
215 mm
-
area:
-
8.9 ㎡
-
standard flow:
-
428 m3/h
-
Limit traffic:
-
802 m3/h
-
Surface treatment:
-
all
-
sample:
-
Pay for sample
-
Customizable:
-
Accept
Quick Details
-
Place of Origin:
-
Hebei, China
-
Product name:
-
filter cartridge
-
Material:
-
Polyester fiber
-
diameter:
-
325 mm
-
inner diameter:
-
215 mm
-
area:
-
8.9 ㎡
-
standard flow:
-
428 m3/h
-
Limit traffic:
-
802 m3/h
-
Surface treatment:
-
all
-
sample:
-
Pay for sample
-
Customizable:
-
Accept

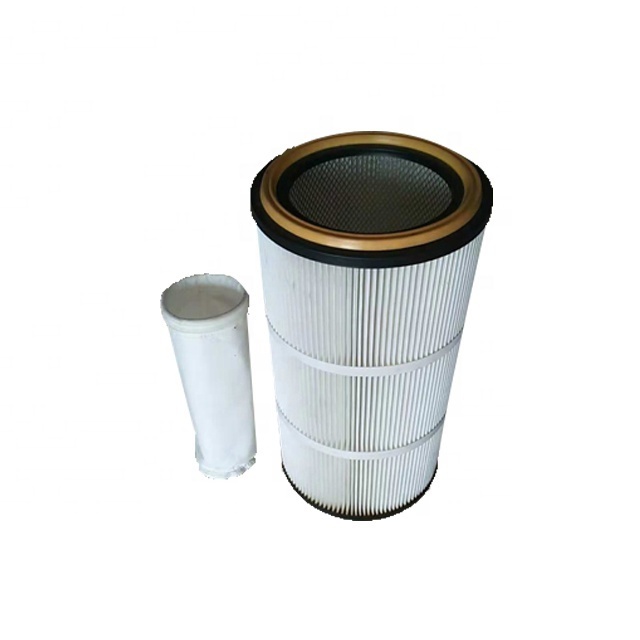

High quality industrial air dust collector filter cartridge
product intioduction
High quality industrial air dust collector filter cartridge :
1. Paper filter cartridge
Paper filter cylinder is made of natural wood pulp fiber efficient filter material, for 1 mu m dust filtration efficiency can reach 99.99%, big filter area, made after the cartridge, shape size is 324 * 660 mm, filter area of 21 ㎡.This kind of filter material has poor strength and is not resistant to water.
2. Polyester filter cartridge
Polyester filter barrel is a high quality polyester non-spinning bonded filter material, through hot roller pressing light, hot setting, waterproof and oil-proof saturation treatment, with a tight micropore structure, the dust filtration efficiency of 1 displacement m can reach 99.99%, after made into a filter barrel, there are a variety of external dimensions.The cartridge can be washed, the highest working temperature is 135 ℃, while keep high efficiency filter, pressure differential needled felt much smaller than the standard.Belong to surface filtration, easy to clean ash, wide application range.
3. Membrane filter cartridge
The membrane filter cartridge is used to bind the expanded microporous ptfe (ePTFE) film to the surface of various filter materials through hot molding.The dust filtration efficiency of BWF membrane filter can reach 99.999% for 0.5 musm, with small friction coefficient, strong hydrophobicity and good ash cleaning effect.It is suitable under the condition of high over wind speed, high humidity and high requirement for dust removal.
4. Folding long filter cartridge
The folding filter barrel has the shape of the filter bag. The products include flower plate diameter of 127mm, 133mm, 159mm, 162mm, etc. The length is usually 1~2m, and the special application can reach 3m.This type of filter cartridge is usually installed with top, bottom and screw type.The top and bottom covers are made of polyurethane and metal.
|
filter cartridge material
|
|
|
|
|||
|
Paper filter cartridge
|
Operating pressure
|
Mpa
|
0.3
|
|||
|
|
Rated flow
|
L/min
|
600
|
|||
|
|
Working temperature
|
℃
|
80
|
|||
|
Polyester filter cartridge
|
Operating pressure
|
Mpa
|
30
|
|||
|
|
Rated flow
|
L/min
|
2000
|
|||
|
|
Working temperature
|
℃
|
≤160
|
|||
|
Membrane filter cartridge
|
Membrane filter cartridge
|
Mpa
|
30
|
|||
|
|
Rated flow
|
L/min
|
2000
|
|||
|
|
Working temperature
|
℃
|
≤200
|
|||
Range of application:
Applicable to plasma, laser cutting, welding dust and other working conditions in large steel structure, shipbuilding, automobile manufacturing, metal processing and other industries.2. Recovery and utilization of precious non-ferrous metals such as tungsten powder and molybdenum powder.
live show
Detailed Images
Product introduction
Product introduction
Name:
Slanting insert dust collector
Brand:
YITE
15 ° inclined draw-out type installation, can make the filter cartridge is convenient for changing this body does not set the driving part and filter, so that it is less maintenance work reduced
Our product
our factory
our services:
1. Products have passed ISO9001
2. We have excellent after-sale team to provide excellent after-sales service.
3. Guarantee 24 hours to reply to the buyer in time
FAQ
Q1. Are you a factory and trading company?
A: We are a factory
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Can you suggst me a suitable type?
A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need
Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
