Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YongJin
-
Dimension(L*W*H):
-
1.5m*0.98m*2.6m
-
Weight:
-
850 KG
-
Power:
-
1.5KW, 380V/220V
-
Export Markets:
-
Southeast Asia, the Middle East, Europe and America
-
Reed Width:
-
66mm
-
Speed:
-
Designed Maximum 1500 RPM
-
Number of Hooks:
-
192A-240A
-
Size:
-
1.5m*0.98m*2.6m
-
Commodity Name:
-

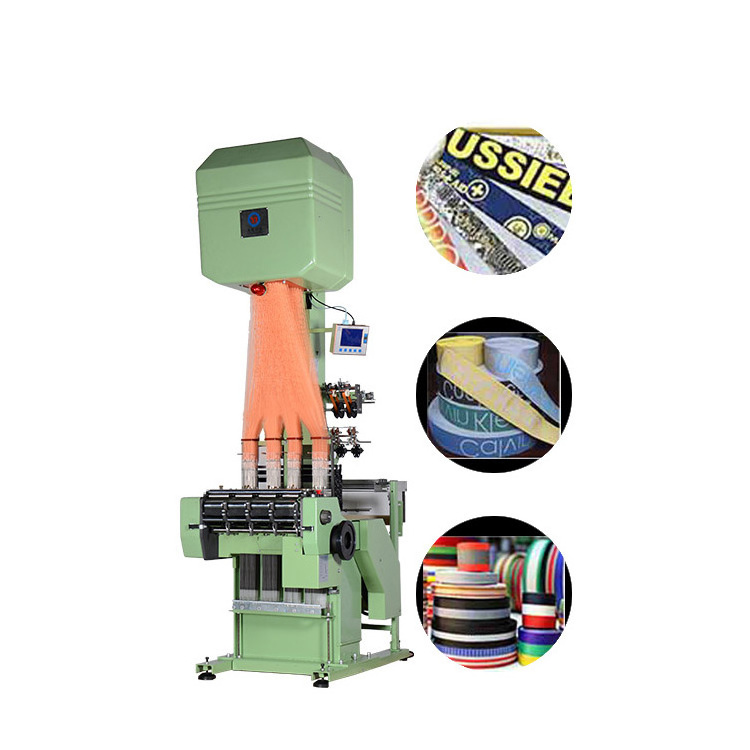

High Speed Needle Loom
Quick Details
-
Type:
-
Jacquard Loom
-
Production Capacity:
-
300sets / Month
-
Application:
-
Produce Jacquard Elastic, To produce narrow fabrics straps/belt/webbing/tape and so on
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YongJin
-
Dimension(L*W*H):
-
1.5m*0.98m*2.6m
-
Weight:
-
850 KG
-
Power:
-
1.5KW, 380V/220V
-
Export Markets:
-
Southeast Asia, the Middle East, Europe and America
-
Reed Width:
-
66mm
-
Speed:
-
Designed Maximum 1500 RPM
-
Number of Hooks:
-
192A-240A
-
Size:
-
1.5m*0.98m*2.6m
-
Commodity Name:
-
High Speed Needle Loom
Product Description
* The world's top 500 appointed manufacturer, specializes in needle loom for more than 20 years.
|
Main Features
|
|
1. Harness minimum
192 hooks
, maximum
1056 hooks
, can make diversify tapes.
|
|
2. The machine installed the
inverter system
, can control the speed easily stop the machine immediately, also protect the yarn.
|
|
3. Independent development jacquard head,
high precision & wear-resistant
.
|
|
4. Bakeltie board & Harness are
imported from Switzerland
, the heald is
imported from Italy
.
|
|
5. Using
import bearing
on machines, INA bearing from
Germany
& NSK bearing from
Japan
.
|
|
6. High speed, can be up to
900-1200rpm
, increasing the capacity.
|
|
Model
|
TNF8/27A
|
TNF6/42A
|
TNF6/42B
|
TNF4/66A
|
|
Number of hooks
|
192/240
|
192/240/320/384
|
384/448/480/512
|
192/240/320/384
|
|
Number of tapes
|
8
|
6
|
6
|
4
|
|
Width of reed
|
27
|
42
|
42
|
66
|
|
Maximum of tapes
|
25
|
40
|
40
|
62
|
|
Number of frame
|
12
|
12
|
12
|
12
|
|
Circulation
|
1:8/16-32
|
1:8/16-32
|
1:8/16-32
|
1:8/16-32
|
|
Speed
|
500-1200rpm
|
500-1200rpm
|
500-1200rpm
|
500-1200rpm
|
|
Model
|
TNF4/66B
|
TNF6/55A
|
|
Number of hooks
|
384/448/320/512/640/720
|
192
|
|
Number of tapes
|
4
|
6
|
|
Width of reed
|
66
|
27
|
|
Maximum of tapes
|
64
|
25
|
|
Number of frame
|
12
|
12
|
|
Circulation
|
1:8/16-32
|
1:8/16-32
|
|
Speed
|
500-1200rpm
|
500-1200rpm
|
This is jacquard loom to produce shoulder strap, belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.
TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.
TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher
than others.
TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.
TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher
than others.
