Quick Details
-
Product name:
-
Swing Turnstile
-
Application:
-
Security Access Control Management
-
Material:
-
304 Stainless Steel
-
Type:
-
Fully Automatic Swing Turnstile Gate
-
Keyword:
-
Door Access Control System Device
-
Function:
-
Intelligent Access Control System
-
Feature:
-
One Entry
-
Usage:
-
Subway Station Mall
-
Access control:
-
Smart Access Control
-
Warranty:
-
1 Year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SEWO
-
Model Number:
-
SEWO-B1-150
-
Product name:
-
Swing Turnstile
-
Application:
-
Security Access Control Management
-
Material:
-
304 Stainless Steel
-
Type:
-
Fully Automatic Swing Turnstile Gate
-
Keyword:
-
Door Access Control System Device
-
Function:
-
Intelligent Access Control System
-
Feature:
-
One Entry
-
Usage:
-
Subway Station Mall
-
Access control:
-
Smart Access Control
-
Warranty:
-
1 Year
Product Description

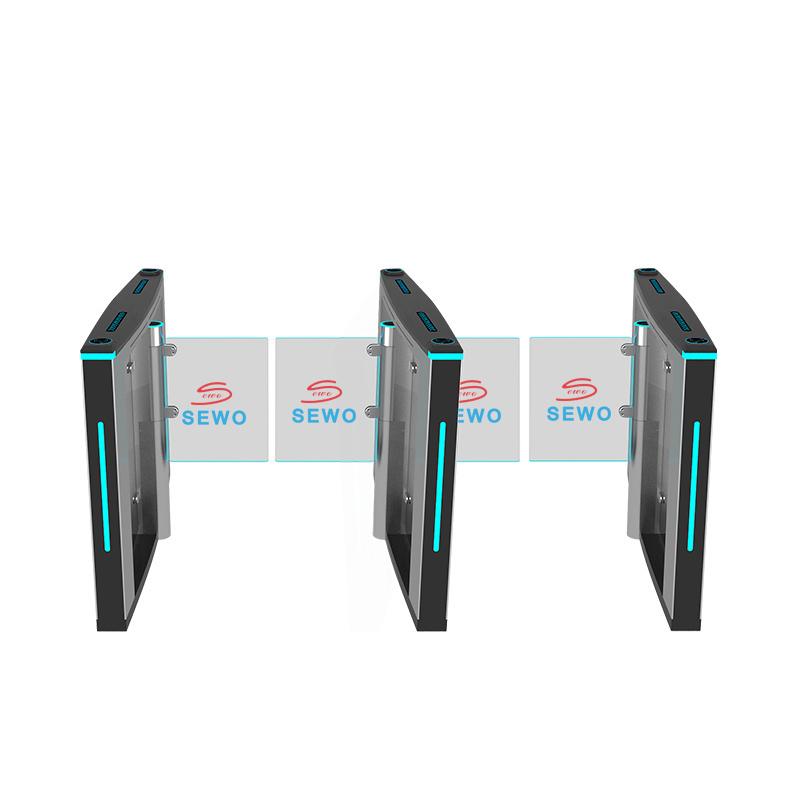

SEWO Luxury Full Automatic Speed Swing Gate Turnstile for Subway High Speed Railway Station Entrance Barrier Gate Access Control
A turnstile gate is a mechanical or electronic gate that controls access to a specific area. It typically consists of a vertical post with rotating arms or doors that allow only one person to pass through at a time. The gates are usually made of metal, with options for different finishes such as stainless steel or powder-coated colors.
Turnstile gates can be accessed by using a valid ticket, keycard, or authentication method such as facial recognition or fingerprint scanning. Once the user presents their credential, the gate unlocks and allows them to pass through. Some models also have a feature for detecting tailgating, where the gate remains locked until the previous user has fully passed through.
The gates can be installed as standalone units or integrated with a larger access control system for a specific venue. Turnstiles are commonly used in stadiums, theme parks, airports, and other public spaces where crowd control and security are important.
Functions
:
1. More Secure.Encoder+Clutch brake allow the arm stopping at any point when it detects possible pedestrians with 8 pairs of IR sensors. Tail-gating,passing back ,intrusion are able to be detected and forbidden by system.In case of power failure or emergency, the arms will open automatically for escape.
2. More Flexibility.Our speed gate provides mass flexibility. Pedestrians with luggage, briefcase, Baby stroller or wheel chair users can pass through easily too.
3.More efficiency. 0.2 second open/close speed offers high speed passing through and throughput will be increased by 30% up.
4.More Application. Speed gates are widely used in public areas especially facilities, where disabled accesses are needed or strollers are commonly used.
Specification
|
Model No.
|
S6-150
|
B6-150
|
Y6-300
|
B1-150
|
B6-200
|
Y6-200
|
|||||
|
Housing Size
|
1400*150*1000mm
|
|
|
|
1400x160x1000mm
|
|
|||||
|
Housing Material
|
SUS(304#) stainless steel
|
|
|
|
|
|
|||||
|
Thickness of Material
|
1.5mm (upper cover and base); 1.2mm (other parts)
|
|
|
|
1.2mm
|
|
|||||
|
Delocking Time
|
0.2 second
|
|
|
|
|
|
|||||
|
Passing Speed
|
35 people/min
|
|
|
|
|
|
|||||
|
Passing Width
|
≤550mm
|
≤1100mm
|
|
|
|
|
|||||
|
Voltage input
|
AC220V±10%,50HZ±10%
|
|
|
|
|
|
|||||
|
Motor
|
DC brushed motors(24V)
|
|
|
|
|
|
|||||
|
Infrared sensing
|
0
|
6 Pairs
|
|
|
4 Pairs
|
|
|||||
|
MCBF
|
5,000,000 cycle
|
|
|
|
|
|
|||||
