- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Customized Color
-
Type:
-
Prefabricated Modular Houses
-
Window:
-
Plastic Steel Window
-
Advantage:
-
Fast Install
-
Function:
-
Portable Room Outdoor
-
Delivery Time:
-
10-15days
-
Structure:
-
Steel Luxury Container House
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIACHENG
-
Product name:
-
Expandable mobile home
-
Color:
-
Customized Color
-
Type:
-
Prefabricated Modular Houses
-
Window:
-
Plastic Steel Window
-
Advantage:
-
Fast Install
-
Function:
-
Portable Room Outdoor
-
Delivery Time:
-
10-15days
-
Structure:
-
Steel Luxury Container House
You may also like
Products Show
|

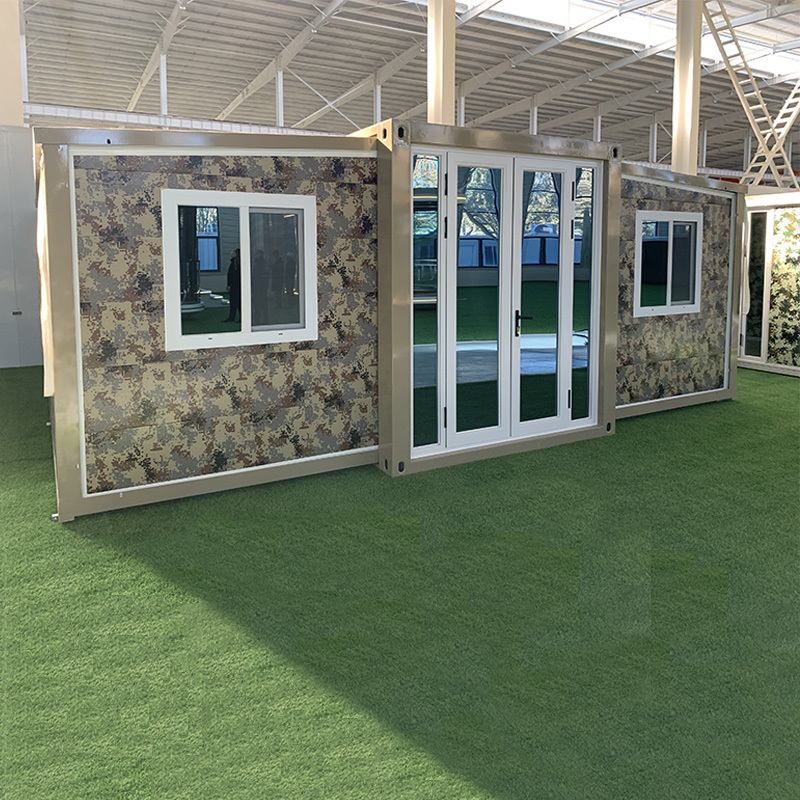

EXPANDABLE CONTAINER HOUSE
|
|
Type
|
Open Size
|
|
Total Area(㎡）
|
Loading Quantity
|
UNIT PRICE FOB TIANJIN(US$/Unit)
|
|
|
|
|
|
|
Unit/40'OT
|
|
|
|
A
|
6320*5900*2650mm
|
2200*5900*2650mm
|
36.54
|
2
|
|
|
|
|
LIFE SPAN
|
more than 30 years
|
|
WATER PROOF
|
99.9999%
|
|
|
|
EARTHQUAKE RESISTANCE
|
Grade 10
|
|
SOUND RESISTANCE
|
≥30dB
|
|
|
|
HEAT INSULATION
|
0.506317W/(m^2·K)
|
|
WIND RESISTANCE
|
≥120KM/Hour
|
|
|
|
ROOF LIVE LOAD
|
≥1.0KN/㎡
|
|
FLOOR LIVE LOAD
|
≥2.5KN/㎡
|
|
|
|
FIREPROOF GRADE
|
A
|
|
|
|
|
|
FRAME STRUCTURE
|
Middle Container
|
Top and bottom upright beams
|
210*150*2.5mm and 80*100*2.5mm P shaped beams Q235B
|
||
|
|
|
Top and bottom cross beams
|
2.5mm shaped beams(Q235B)
|
||
|
|
|
top purlins
|
40*60*2.5mm Q235B
|
||
|
|
|
bottom purlins
|
40*80*2.5mm Q235B
|
||
|
|
|
side beams
|
80*100mm Q235B
|
||
|
FRAME STRUCTURE
|
Side Containers
|
Top and bottom vertical beams
|
40*60*2.5mm P shape Q235B
|
||
|
|
|
top and bottom cross beams
|
40*60*2.5mm P shape Q235B
|
||
|
|
|
bottom purlins
|
40*80*2.0mm Q235B tubes
|
||
|
|
|
side wall frames
|
40*60*2.5mm Q235B tubes
|
||
|
WALL PANELS
|
MIDDLE CONTAINER TOP PANEL
|
|
T75mm glass wool sandwich panel(side EPS panels)
|
||
|
|
SEPERATING PANELS
|
|
T50mm EPS sandwich
|
||
|
FLOORING
|
Fireproof glass magnesium floor 15mm+1.5mm PVC floor leather
|
|
|
||
|
OTHERS
|
FOLDING HINGE HANGING HEAD
|
T4mm,Q235B
|
|
|
FOLDING HINGE
|
13mm,galvanized
|
|
|
TOP CONTAINER EXTERNAL
|
T0.5mm gal.steel sheet
|
Can be customized according to your needs any size!
Please contact customer service, they will be professionally customized for you!
Prefabricated box house is a modular building product based on steel frame and light wall panel structure system. This product adopts the proprietary third-generation packing box technology, which is composed of top frame, bottom frame, corner post and interchangeable wall panels. It can be packaged, easy to install, and convenient for land or sea transportation. It can be used as an office, accommodation, restaurant , sanitary ware and combined large space use, which can meet the needs of construction site barracks, field work barracks, municipal resettlement houses and various commercial houses. It is currently widely used in Europe, Africa, Southeast Asia, North America, South America and the Middle East and other regions .
Rock Wool
New fire-proof rock wool sandwich panel is made of two layers of high-quality color coated steel plates or other precision-shaped metal plates. Vertical to the upper and lower layers of steel plates), high-strength, high-adhesion, and high-fire-proof adhesives are used to bond high-quality rock wool and metal panels to form a beautiful, flat, rigid and tough building board. The formed board has excellent fire protection, thermal insulation, environmental protection and other characteristics, providing an excellent choice for industrial building envelope systems.
Partial equipment display
Partial raw material show
