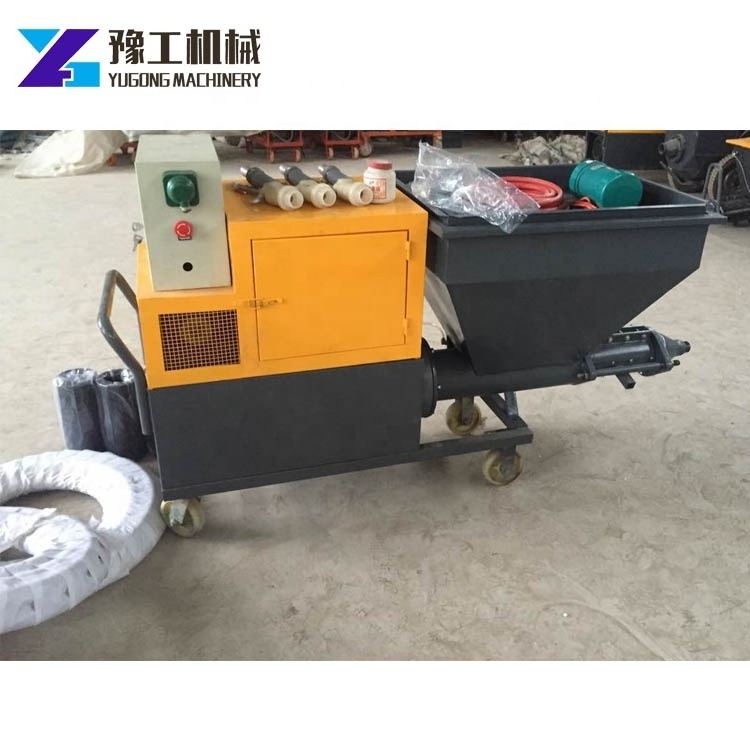

YG dry type used gunite machines for sale automatic plastering spray plaster machine
YG dry type used gunite machines for sale automatic plastering spray plaster machine
YG dry type used gunite machines for sale automatic plastering spray plaster machine
YG dry type used gunite machines for sale automatic plastering spray plaster machine
YG dry type used gunite machines for sale automatic plastering spray plaster machine
YG dry type used gunite machines for sale automatic plastering spray plaster machine
YG dry type used gunite machines for sale automatic plastering spray plaster machine
YG dry type used gunite machines for sale automatic plastering spray plaster machine

YG dry type used gunite machines for sale automatic plastering spray plaster machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $1250
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Henan, China
Brand Name:
YG/YUGONG
Dimension(L*W*H):
1650*550*1200mm
Power:
diesel or 220v/380V
Volume:
50L
Color:
Customizable
Air Compressor Exhaust:
0.3m3/min
Transmission Distance:
Horizontal 30m Vertical 15m
Pressure:
3MPa
Applicable Material Ratio:
0.7-1:1:3
Product name:
Mortar Spray machine
Product Type:
Diesel or electric mortar spray machine
After Warranty Service:
Online support
Production Capacity:
3-5m3/h

Quick Details

Max. vertical conveying distance:
30M
Max. horizontal conveying distance:
50M
Hopper Capacity:
60L
Place of Origin:
Henan, China
Brand Name:
YG/YUGONG
Dimension(L*W*H):
1650*550*1200mm
Power:
diesel or 220v/380V
Volume:
50L
Color:
Customizable
Air Compressor Exhaust:
0.3m3/min
Transmission Distance:
Horizontal 30m Vertical 15m
Pressure:
3MPa
Applicable Material Ratio:
0.7-1:1:3
Product name:
Mortar Spray machine
Product Type:
Diesel or electric mortar spray machine
After Warranty Service:
Online support
Production Capacity:
3-5m3/h
Product Description

Mortar spraying machine , a kind of spraying machine can be called mortar sprayer, mortar spray equipment, cement mortar spraying machine, stucco machine which has a wide range of uses. It is commonly used for indoor and outdoor wall spraying , cement mortar grouting , bridge grouting and waterproof, fireproof, ceiling, wall, paint, garden spraying , as well as relief effect coating , sound-absorbing material spraying, waterproof plugging and filling . The mortar spraying machine is very easy to operate which don’t need scaffolding, mobile equipment, even the small corners and roof can be freely spray. The use of this equipment can greatly shorten the construction period, improve work efficiency and save the expense of shelf materials.

Specification of the Spraying Machine:

Electric Mortar Spraying Machine

Model

YG-311/318/712

Production Capacity

3-6m3/h

Pressure

3MPa

Applicable Material Ratio(Water,Ash,Sand)

0.7-1:1:3

Voltage

380v/220v

Main Motor Power

4kw/7.5kw

Particle Size

Below 4mm

Transmission Distance

Horizontal 30m-60m Vertical 15m-40m

Bucket Volume

50L-100L

Air Compressor Exhaust

0.3m3/min

Max Aggregate Size

Below 4mm

Feed Pipe Diameter

32mm

Weight

320kg

Diesel Mortar Sprayer

Model

YG-511/518

Power

8 Hp/12hp

Pressure

2-5 MPa

Particle Diameter

below 5mm

Flow

3-6 m3/h

Volume

50 L

Transmission Distance

Horizontal 60m Vertical 30m

Dimension

1650*550*1200 mm

Weight

310 kg

Detailed Images

Wide Application of the Mortar Spraying Machine

The spraying machine for sale in YUGONG can be applied to wall and ceiling painting work, road painting, highways and railways painting, tunnels painting, etc. And materials like putty powder, paint, latex paint, dry mortar, cement mortar, insulation mortar, waterproof and fireproof materials, real stone paint, sound-absorbing materials, and others which are water-soluble materials are suitable materials for a mortar spray machine. So buy one set of mortar sprayer can bring many convenience for you.

Five Top Features of YUGONG Mortar Spraying Machine

1.  High-Efficiency;

2. Smooth and Fine Coating;

3. Strong Coating Adhesion;

4. High Utilization;

5. Customization Service.

Main Parts of the Mortar Sprayer for Sale

A cement spray machine mainly consists of a grouting pipe, stator, rotar, spraying gun, vibrating motor, vibrating sieve, oil pump, air hose, and electric control box. The motor provide strong power for the mortar pump machine, and you can operate the cement spraying machine easily under the instructions on the electric control box. For those vulnerable parts, we will ship another set for you along with the machine.
