Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SWITECH
-
Model Number:
-
8AS9P1A1M6QES
-
Product name:
-

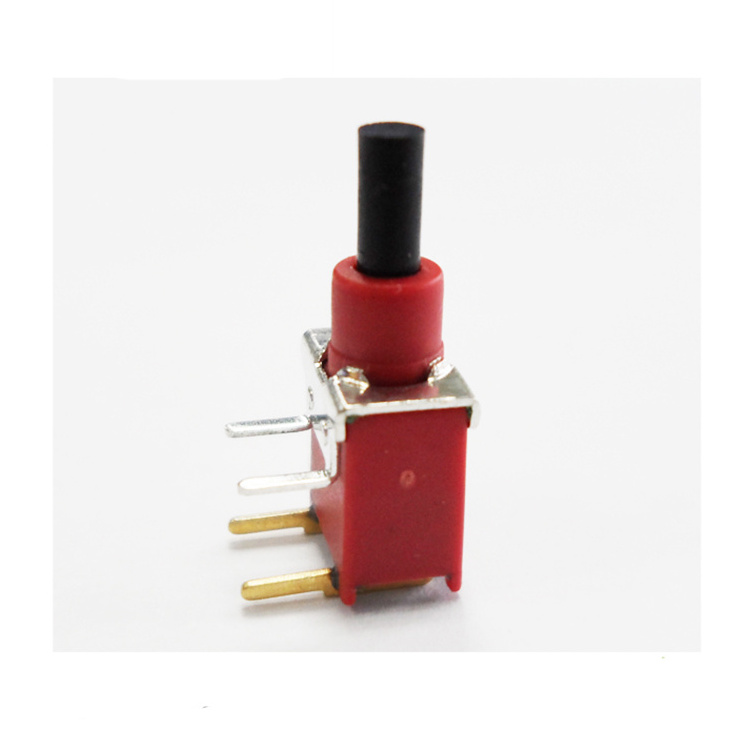

On-Off 2 Pin Push Button Switch with Right Angle
-
Product type:
-
8AS9P1A1M6QES
-
Circuit:
-
SPST
-
Contact Resistant:
-
50mΩ MAX
-
Insulation Resistance:
-
100MΩ MIN
-
Operation force:
-
350±100gf
-
Operation type:
-
Momentary
-
Protect level:
-
IP40
-
Certification:
-
ROHS
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
1A~3A, 3A
-
Max. Voltage:
-
120V~250VAC, 250V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SWITECH
-
Model Number:
-
8AS9P1A1M6QES
-
Product name:
-
On-Off 2 Pin Push Button Switch with Right Angle
-
Product type:
-
8AS9P1A1M6QES
-
Circuit:
-
SPST
-
Contact Resistant:
-
50mΩ MAX
-
Insulation Resistance:
-
100MΩ MIN
-
Operation force:
-
350±100gf
-
Operation type:
-
Momentary
-
Protect level:
-
IP40
-
Certification:
-
ROHS
Products Description
|
Specification & Drawing
|
|
|
|
|||
|
Name
|
On-Off 2 Pin Push Button Switch with Right Angle
|
|
|
|||
|
Model
|
8AS9P1A1M6QES
|
|
|
|||
|
Rating
|
1A 250VAC; 3A 120VAC
|
|
|
|||
|
Contact resistance
|
50mΩ MAX
|
|
|
|||
|
Insulation resistance
|
100MΩ MIN
|
|
|
|||
|
Operation force
|
350±100gf
|
|
|
|||
|
Contact sace
|
Min 3.0mm
|
|
|
|||
|
Operation life
|
50,000 cycles
|
|
|
|||
|
Function
|
Momentary
|
|
|
|||
|
Terminal form
|
Solder Terminal
|
|
|
|||
|
Operation temperature
|
0℃ ～ +125℃
|
|
|
|||
|
Storage temperature
|
-10℃ ～ +115℃
|
|
|
|||
|
Material & Color
|
|
|
|
1. Terminal
|
expoxy
|
|
|
2. Contact
|
Brass,with gold plate over nickel plate
|
|
|
2. Case
|
Glass filled Nylon 6/6 flame retardant,heat stabilized(UL94V-0)
|
|
|
3. Actuator
|
Glass filled Nylon or Glass filled polyester
|
|
|
4. Housing
|
Stainless steelPC
|
|
