Quick Details
-
CaO Content (%):
-
0.05
-
SiC Content (%):
-
84.6
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
XDFC-1
-
Brand Name:
-
XINDA
-
Product name:
-
Silicon carbide lined cyclone
-
Raw material:
-
Silicon carbide
-
Advantage:
-
High Wear-resistance/High impact strength
-
Color:
-
Black
-
Application:
-
Chemical Industries
-
Size:
-
Customers' Requirement
-
Thermal Conductivity:
-
45W/MK(1200 )
-
Working temperature:
-
≤1380
Quick Details
-
SiO2 Content (%):
-
3.23
-
Al2O3 Content (%):
-
0.03
-
MgO Content (%):
-
<0.01
-
CaO Content (%):
-
0.05
-
SiC Content (%):
-
84.6
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
XDFC-1
-
Brand Name:
-
XINDA
-
Product name:
-
Silicon carbide lined cyclone
-
Raw material:
-
Silicon carbide
-
Advantage:
-
High Wear-resistance/High impact strength
-
Color:
-
Black
-
Application:
-
Chemical Industries
-
Size:
-
Customers' Requirement
-
Thermal Conductivity:
-
45W/MK(1200 )
-
Working temperature:
-
≤1380

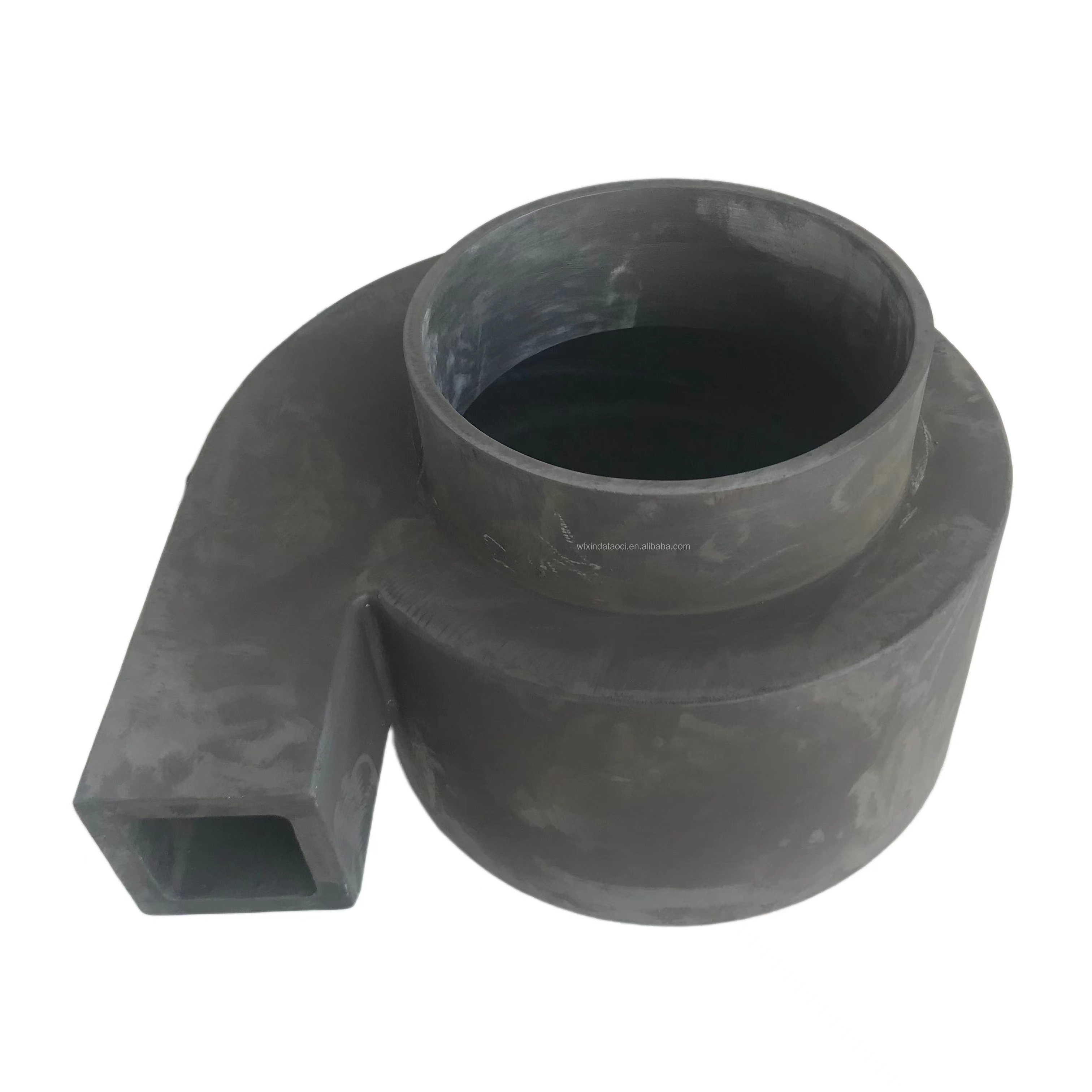

Silicon carbide lined cyclone, is a kind of new wear-resistant material, the lining material with high hardness, abrasion resistance and impact resistance, high temperature resistance, acid and alkali resistance, corrosion resistance and other characteristics, the actual service life is 6 times more than Alumina lining. Especially suitable for highly abrasive, coarse particles in the classification, concentration, dehydration and other operations and it has been successfully applied in many mine.
.
Feature
◊ Superior wear resistance, impact resistance and corrosion resistance
◊ Excellent flatness and temperature resistance up to 1380℃
◊ Excellent oxidation resistance
◊ Good dimensional control of complex shapes
◊ Easy installation
◊ Longer service life ( about 6 times more than that of alumina ceramic )
◊ Excellent flatness and temperature resistance up to 1380℃
◊ Excellent oxidation resistance
◊ Good dimensional control of complex shapes
◊ Easy installation
◊ Longer service life ( about 6 times more than that of alumina ceramic )
Product Paramenters
|
Item
|
Unit
|
Data
|
|
Temperature of application
|
°C
|
≤1380
|
|
Density
|
g/cm³
|
﹥3.02
|
|
Open porosity
|
%
|
0
|
|
Denying sirengin
|
Mpa
|
250(20°C )
|
|
|
Mpa
|
280(1200°C )
|
|
Modulus of elasticity
|
Gpa
|
330(20°C )
|
|
|
Gpa
|
300(1200°C )
|
|
Thermal conductivity
|
W/m.k
|
45(1200°C)
|
|
Coefficient of thermal expansion
|
K∧-1×10∧-6
|
4.5
|
|
Rigidity
|
|
9.2
|
|
Acid-proof alkaline
|
|
Excellent
|
