Quick Details
-
Working principle:
-
Silver ink grid sensor
-
Overlay Color:
-
Pantone or RAL-color Number
-
Tail/Pin/Circuit Layout:
-
Based on customers detailed requests
-
Material:
-
PMMA(acrylic)/tempered glass
-
Artwork/Drawings Format:
-
CorelDraw, Adobe Illustrator AI, AutoCAD
-
Back Adhesive:
-
3M467,3M468,3M9080 etc.
-
Rear Adhesive:
-
3M467, 3M468, 3M9080 etc...
-
Thickness:
-
0.8~20 mm
-
Button Color:
-
Customized
-
Antistatic Shielding:
-
Can be added For Protection
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNILINK
-
Model Number:
-
002
-
Working principle:
-
Silver ink grid sensor
-
Overlay Color:
-
Pantone or RAL-color Number
-
Tail/Pin/Circuit Layout:
-
Based on customers detailed requests
-
Material:
-
PMMA(acrylic)/tempered glass
-
Artwork/Drawings Format:
-
CorelDraw, Adobe Illustrator AI, AutoCAD
-
Back Adhesive:
-
3M467,3M468,3M9080 etc.
-
Rear Adhesive:
-
3M467, 3M468, 3M9080 etc...
-
Thickness:
-
0.8~20 mm
-
Button Color:
-
Customized
-
Antistatic Shielding:
-
Can be added For Protection
|
Electrical Properties:
|
|
|
|
Rated Voltage
|
≤100V DC
|
|
|
Rated Current
|
≤ 100mA
|
|
|
Operating Power
|
≤2W
|
|
|
Insulation Resistance
|
≥100MΩ (250V DC)
|
|
|
Loop Resistance
|
10Ω~2kΩ (based on the design)
|
|
|
Contact Resistance
|
0.5 ~ 5Ω
|
|
|
Wire Lead Resistance
|
<1Ω/cm
|
|
|
Base Material Voltage Withstand
|
1500V DC
|
|
|
Mechanical Properties:
|
|
|
|
Life Expectancy
|
More than 10 years
|
|
|
Operation Force
|
10g-50g
|
|
|
Tail Bending Performance
|
≤180°
|
|
|
Vibration
|
20G's max.
|
|
|
Thickness
|
0.7~20 mm
|
|
|
Environmental Properties:
|
|
|
|
Operation Temperature
|
-40°C to +90°C (-40°to 176°F)
|
|
|
Storage Temperature
|
-40°C to +90°C (-40°to 185°F)
|
|
|
Atmospheric Pressure
|
86 ~ 106 kPa
|
|
|
Humidity
|
+40°C, 90%~95%RH for 480 Hours
|
|
1. How to make an order?
Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
2. Sample available?
Yes, but based on freight collect. Most of the items are customized for clients, so molding charge is needed.
3. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
4. Are you manufacturer or trading company?
A:We are manufacturer and you are welcome to visit our factory, also video and pictures will let you check.
5. What is the production time?
The sample time is about 1-7days.The quantity order would take 1-3 weeks.For complicated product should take 1 more week.
6. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.

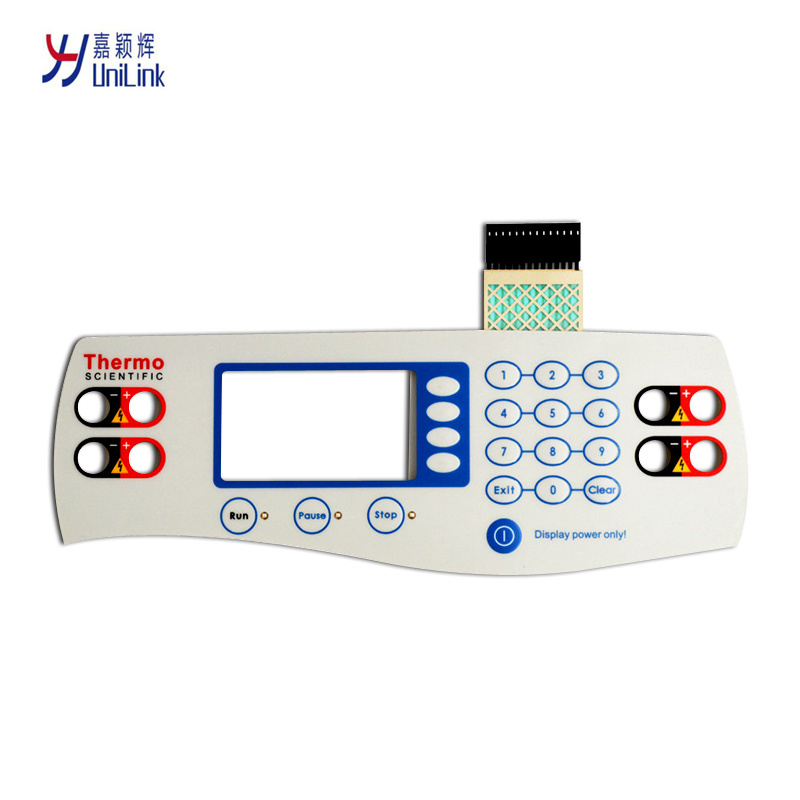

Details Images
