Quick Details
-
Brand Name:
-
LSJ
-
Model Number:
-
LSJ-E100
-
Display:
-
2.4-Inch Color Screen
-
Field of View (FoV):
-
33°x 33°
-
Weight:
-
135g
-
Frame rate:
-
6Hz
-
Focusing mode:
-
Fixed
-
Storage:
-
4G
-
Pixels:
-
1024
Quick Details
-
Warranty:
-
ONE year
-
Theory:
-
Infrared Thermometer
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
LSJ
-
Model Number:
-
LSJ-E100
-
Display:
-
2.4-Inch Color Screen
-
Field of View (FoV):
-
33°x 33°
-
Weight:
-
135g
-
Frame rate:
-
6Hz
-
Focusing mode:
-
Fixed
-
Storage:
-
4G
-
Pixels:
-
1024
Products Description

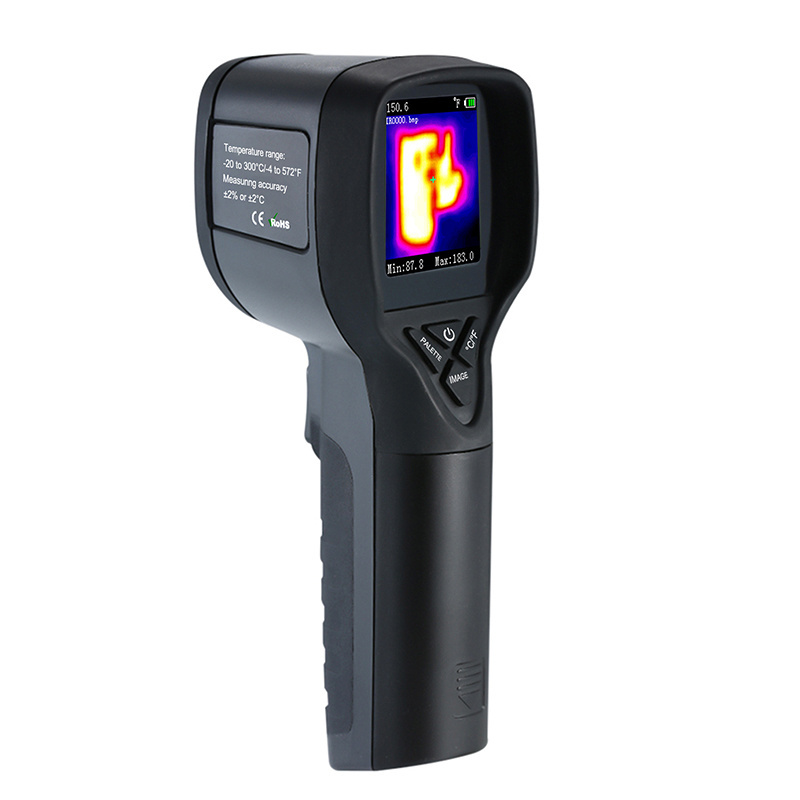

The LSJ-E100 is a versatile infrared thermal imager designed for a range of applications such as equipment repair and floor heating inspections. Encased in a sleek black housing, this compact device features a clear 2.0" TFT display that provides intuitive user experience.
It complies with ROHS and CE certifications, ensuring its adherence to safety and environmental standards. Powered by a 3.7V Li-ion battery, it is both portable and rechargeable.
With dimensions of 165*69*60mm and a lightweight design at just 135g, the E100 is easy to handle and operate. Its frame rate of 5Hz to 6Hz allows for smooth imaging and accurate temperature readings, making it an essential tool for maintenance professionals.
Specificaitons
|
Model
|
E100
|
|
|
|
||||
|
Display screen
|
2.4"color screen
|
|
|
|
||||
|
Infraredimage resolution
|
32×32
|
|
|
|
||||
|
Total pixels
|
1024
|
|
|
|
||||
|
Field angle/focus length
|
33°×33/0.5m
|
|
|
|
||||
|
Frame rate
|
5Hz~6Hz
|
|
|
|
||||
|
Focusing mode
|
Fixed
|
|
|
|
||||
|
NETD
|
≤50mK@25℃,F#1.0
|
|
|
|
||||
|
Wave length coverage
|
8~14μm
|
|
|
|
||||
|
Emissivity
|
0.95
|
|
|
|
||||
|
Color palette
|
Iron red、white hot
|
|
|
|
||||
|
Measuring range
|
-20℃~+300℃(-4°F~572°F)
|
|
|
|
||||
|
Accuracy
|
+2°℃/±2%
|
|
|
|
||||
|
Setting
|
Unit、Language、Date、Time、Information
|
|
|
|
||||
|
Language
|
Chinese、English
|
|
|
|
||||
|
Storage capacity
|
1MB
|
|
|
|
||||
|
File format
|
bmp
|
|
|
|
||||
|
Power interface
|
Micro USB 2.0
|
|
|
|
||||
|
Specifications
|
|
|
|
|
||||
|
Battery type
|
3.7V Li-lon Battery
|
Work temperature
|
0°C~50°℃
|
|
||||
|
Storage temperature
|
-10°℃~+50℃
|
Product size
|
165×69×60mm
|
|
||||
|
Relative humidity
|
<85%RH
|
Product weight
|
135g
|
|
||||
