Quick Details
-
Brand Name:
-
ZY
-
Place of Origin:
-
Zhejiang
-
Horsepower:
-
customization
-
Structure:
-
Multistage Pump
-
Cable Length:
-
customization
-
Outlet Size:
-
customization
-
Power:
-
customization
-
motor:
-
50/60hz
-
Product name:
-
Fire fighting water pump diesel fire pump
-
Certificate:
-
ISO9001
-
Warranty:
-
1 Year
-
Standard or Nonstandard::
-
Standard
-
Motor:
-
100% Copper Wire
-
Material:
-
Stainless Steel
-
Flow:
-
8-3000m3/h
-
Feature:
-
High Efficiency
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
customization
-
Voltage:
-
280/220/440v, 220V/380V/440V
-
Brand Name:
-
ZY
-
Place of Origin:
-
Zhejiang
-
Horsepower:
-
customization
-
Structure:
-
Multistage Pump
-
Cable Length:
-
customization
-
Outlet Size:
-
customization
-
Power:
-
customization
-
motor:
-
50/60hz
-
Product name:
-
Fire fighting water pump diesel fire pump
-
Certificate:
-
ISO9001
-
Warranty:
-
1 Year
-
Standard or Nonstandard::
-
Standard
-
Motor:
-
100% Copper Wire
-
Material:
-
Stainless Steel
-
Flow:
-
8-3000m3/h
-
Feature:
-
High Efficiency
Product name :

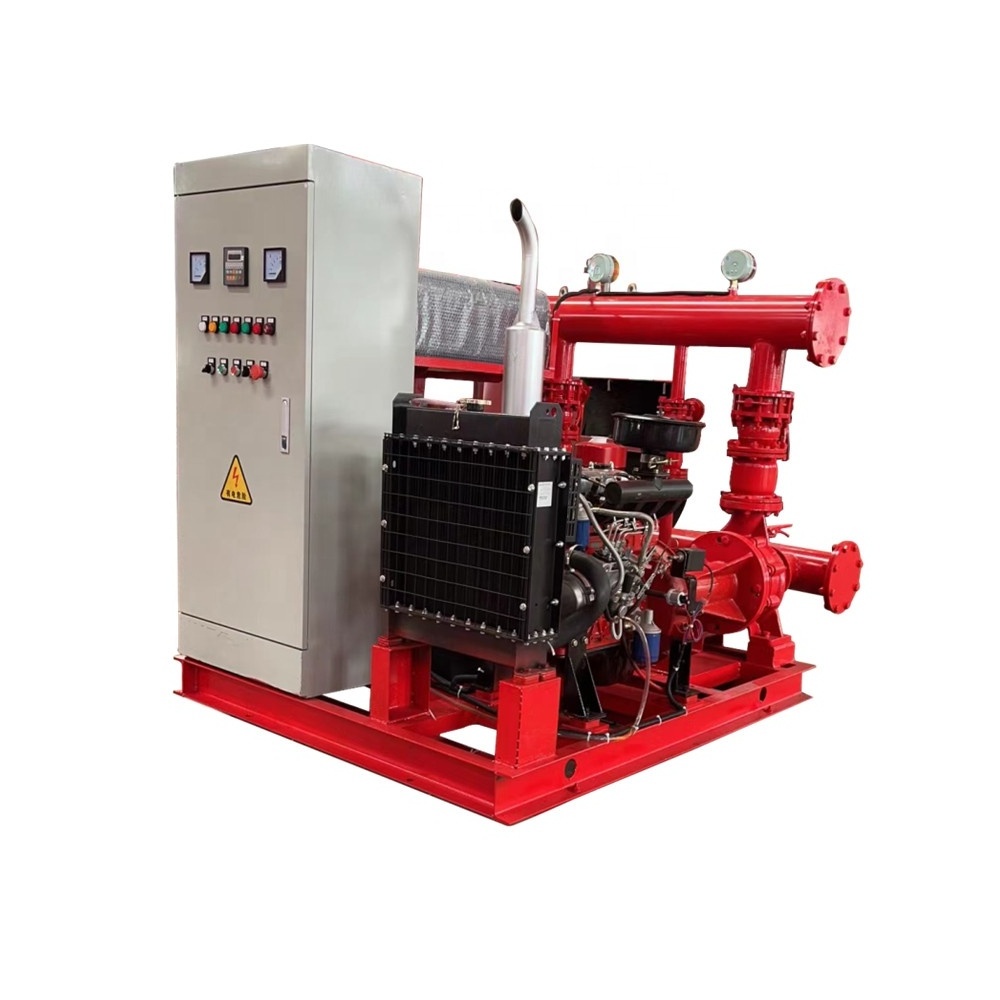

Fire fighting water pump diesel fire pump Engine Centrifugal Water Pump
Consist of main end suction pump driven by electrical motor,stand by end suction diesel pump driven by diesel engine&vertical jockey(maintenance)pump that all are assembled with discharge line accessories,as well as connected with skid mounted control panel.
For example:
| Fire Fighting Equipment Model | ZY200-120 | ZY350-120 | ZY500-120 |
| Color | Fire Fighting Red Color | ||
| Chasis | Steel Base with 8hours integrated fuel tank for Diesel Engine | ||
| Diesel Engine Model | YD480D | YD480D | YD4100D |
| HP | 38 | 38 | 73 |
| Working RPM | 3000 RPM | 3000 RPM | 3000 RPM |
| Main Water Pump Model | XA40/26 | XA50/26 | XA65/26 |
| Main Water Pump Inlet | 2.5" | 2.5" | 3" |
| Main Water Pump Outlet | 1.5" | 2" | 2.5" |
| Main Water Pump Seal | Mechanical Seal | Mechanical Seal | Mechanical Seal |
| Main Water Pump Flow | 200 GPM | 350 GPM | 500 GPM |
| Main Water Pump Pressure | 120 PSI | 120 PSI | 120 PSI |
| Coupling type | Flexible (No clutch) | Flexible (No clutch) | Flexible (No clutch) |
| Jockey Pump model | Vertical Multistage Pump with electric motor | ||
| Jockey Pump Flow | 8 GPM | 8 GPM | 20 GPM |
| Jockey Pump Pressure | 120 PSI | 120 PSI | 120 PSI |
| Jockey Pump Seal | Mechanical Seal | Mechanical Seal | Mechanical Seal |
| Jockey Pump Frequency | 60 HZ | 60 HZ | 60 HZ |
| Jockey Pump Voltage | 110/220V | 110/220V | 440V |
| Jockey Pump Phases | 1 Phase | 1 Phase | 3 Phase |
| Jockey Pump PSI activation point | 90 PSI | 90 PSI | 90 PSI |
| Main Diesel Pump PSI activation point | 60 PSI | 60 PSI | 60 PSI |
