Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MVTEAM
-
Model Number:
-
MVT-AH18
-
Technology:
-
Infrared
-
Resolution:
-
2mp/1080p,1.3MP/1024P,1MP/720P
-
Camera Sensor:
-
CMOS
-
IR Distance:
-
35M IR Distance
-
IR LEDS:
-
42pcs IR leds
-
Certificate:
-
CE FCC RoHs
-
OSD:
-
optional
-
Weatherproof:
-
IP66
-
Lens:
-
2.8-12mm vari-focal lens (M12)
-
Product name:
-

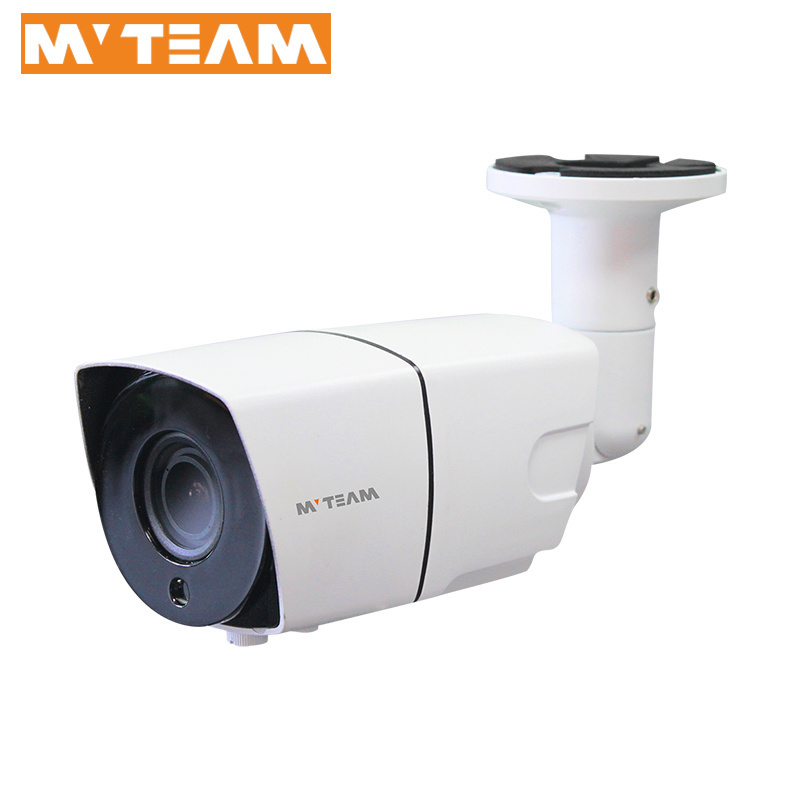

CCTV Bullet Camera Varifocal 2.8-12mm Lens Camera 2MP AHD
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Function:
-
RESET, NIGHT VISION, Waterproof / Weatherproof
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MVTEAM
-
Model Number:
-
MVT-AH18
-
Technology:
-
Infrared
-
Resolution:
-
2mp/1080p,1.3MP/1024P,1MP/720P
-
Camera Sensor:
-
CMOS
-
IR Distance:
-
35M IR Distance
-
IR LEDS:
-
42pcs IR leds
-
Certificate:
-
CE FCC RoHs
-
OSD:
-
optional
-
Weatherproof:
-
IP66
-
Lens:
-
2.8-12mm vari-focal lens (M12)
-
Product name:
-
CCTV Bullet Camera Varifocal 2.8-12mm Lens Camera 2MP AHD
CCTV Bullet Camera Varifocal 2.8-12mm Lens Camera 2MP AHD for Wholesale
Features:
1-1.0M / 1.3M / 2.0M pixel full optional real-time, high definition 1080P
2-3MP 2.8-12mm(M12) vari-focal Lens
3-Waterproof Rating: IP66
4-75- 3 general support under the coaxial cable transmission distance without loss of over 500M
5-High-speed, long-distance, real-time transmission
6-Support OSD
Specifications:
| Model | MVT-AH18A | MVT-AH18T | MVT-AH18R | MVT-AH18P | MVT-AH18F | MVT-AH18W |
| Sensor | 1/4” CMOS(OV9732+8901) 1.0MP,with IR CUT |
1/3” CMOS(AR0130+NVP2431H )
1.3MP,with IR CUT |
1/3” CMOS(0803+NVP2470H )
2.0MP,with IR CUT |
1/2.9” CMOS(IMX323+8902H)
2.0MP,with IR CUT |
1/3” CMOS(AR0330+NVP2470H )
3.0MP,with IR CUT |
1/3” CMOS(OV4689+
NVP2475H) 4.0MP,with IR CUT |
| UTC Function | Yes | NO | Yes | Yes | Yes | Yes |
| SIGNAL | PAL / NTCS | |||||
| Video Output | TVI/CVI/AHD | AHD | TVI/CVI/AHD | TVI/CVI/AHD | AHD | AHD |
| Lens | 2.8-12mm vari-focal lens (M12) | |||||
| IR Leds | 42pcs IR leds | |||||
| IR Distance | 35m IR Distance | |||||
| Min. Illumination | 0.01Lux F1.2 | |||||
| Shutter | 4/25s~1/45,000s | |||||
| Synchronization | Internal | |||||
| BLC | optional | |||||
| OSD | optional | |||||
| AWB | Automatic / manual / day / night | |||||
| Day/Night | with IR Cut, Auto(ICR) / Color / B/W | |||||
| Transmission | Over 500m via 75-3 coaxial cable | |||||
| Power Supply | DC 12V±10% | |||||
| Waterproof | IP66 | |||||
| Working Environment | -30°C~+60°C/Less than 95%RH(no condensation) | |||||
| Warranty | 2 years | |||||
| Power Consumption | 4W MAX | |||||
Q1:Does the AHD Camera can use as analog CVBS camera?
Yes,if add an OSD menu on camera cable,you can switch the camera modes between AHD mode and CVBS mode?
Q2:For 4 in 1 camera(AHD,CVI,TVI,CVBS),how to switch the modes?
Also need switch by OSD menu as below:
Q3:Whether the AHD camera can connect to analog DVR?
Yes,when switch to CVBS mode,you can connect the camera to analog DVR.
Q4:Can I view the camera on mobile phone and computer?
After connect the camera to DVR,you can view the camera thru DVRs' network view function.
Q5:Can I test sample before place mass order?
Sure,sample order is welcomed,MOQ is 1pc.
Q6:Can I buy the cameras with my own brand?
Yes,we accept OEM order.
Q7:Can I view the camera on mobile phone and computer?
After connect the camera to DVR,you can view the camera thru DVRs' network view function.
