Quick Details
-
Brand Name:
-
Andy
-
Model Number:
-
metal bridge
-
Product name:
-
steel structure bridge
-
Application Fields:
-
metal bridge
-
Main frame:
-
H beam,Steel Truss
-
Surface treatment:
-
Hot Dip Gavalnized or Painted
-
Material:
-
Q235/Q235B/Q355/Q355B
-
Drawing design:
-
AutoCAD
-
Certificate:
-
ISO9001:2008/ISO14001:2004
-
floor:
-
steel deck
-
Installation:
-
Supervision
-
Life span:
-
50Years
Quick Details
-
Grade:
-
Q235 Q355
-
Tolerance:
-
±1%
-
Place of Origin:
-
Jiangsu,China
-
Brand Name:
-
Andy
-
Model Number:
-
metal bridge
-
Product name:
-
steel structure bridge
-
Application Fields:
-
metal bridge
-
Main frame:
-
H beam,Steel Truss
-
Surface treatment:
-
Hot Dip Gavalnized or Painted
-
Material:
-
Q235/Q235B/Q355/Q355B
-
Drawing design:
-
AutoCAD
-
Certificate:
-
ISO9001:2008/ISO14001:2004
-
floor:
-
steel deck
-
Installation:
-
Supervision
-
Life span:
-
50Years
Product Description

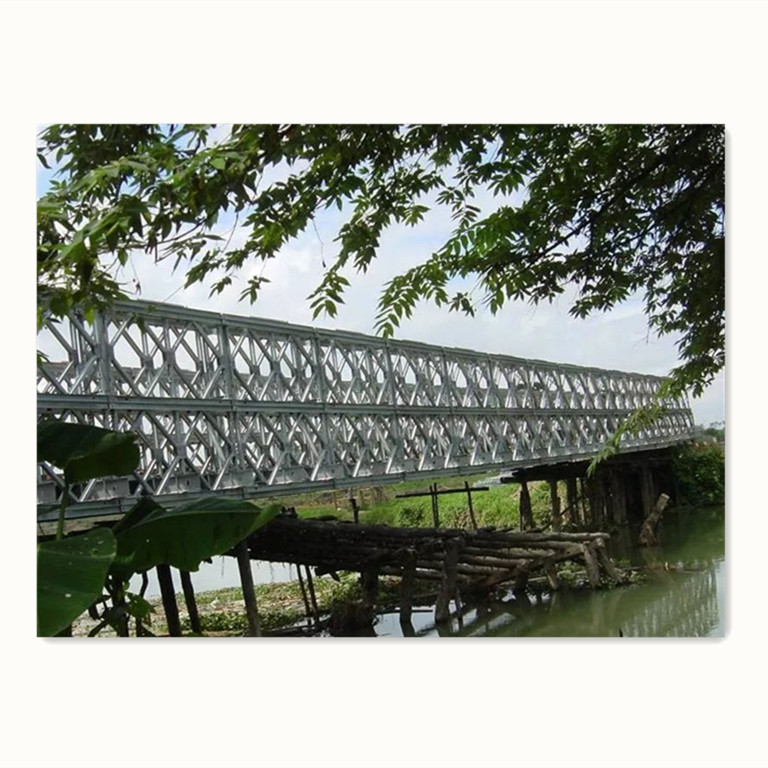

Prefabricated Galvanized Puente Bailey Steel Truss Structure Pedestrian Iron Bridge
Product Paramenters
Bailey Bridge
It
is designed for rapid construction from interchangeable latticed panels of high-tensile steel that are coupled with alloy steel pins
set into ready-made holes to form girders and laid double or triple or superposed to suit the span and load.
Main Components
|
Material
|
Mild Steel; Stainless Steel
|
|
Coating
|
Spray Painting; Galvanization;Powder Coated
|
|
Color
|
Blue; Green; Darkgray; Client's Request
|
|
Steel code
|
Q235B; Q345B; Stainless steel
|
|
Fabrication
|
Advanced Automatic Welding Machines
|
|
Quality control
|
GB/T19001-2008----ISO9001:2008
|
|
Advantages
|
1.Stable and Aesthetic
2.Structure is durable for 50years 3.Fast and easy to install 4.Extensive Applications: Storage, Warehouse, Exhibition Hall,Terminal Building, Stadium, Theater, Special-shaped Buildings, etc 5.High anti-rust performance 6.Flexible composition: Doors and Day-lighting roof could be installed at any position |
1.Carbon structural steel: Q235B.
2.High-strength structural steel :Q355B
3.Special purpose steel fabrication
ⅡQuality standard
1.Certificate: ISO9001:2008
2.Code for design of steel structure: GB 50017-2003
3.Technical code of cold-formed thin-wall steel structure: GB50018-2002
4.Load code for the design of building structures. GB 50009-2006
5.Construction quality acceptance of steel: GB50205-2001
6.Code for design, construction and acceptance of high strength for steel structure, JGJ82-2011
7.Technical specification for welding of steel structure building: JGJ 81-2002
8.Technical specification for steel Structures of tall buildings: (JGJ99-98)
Ⅲ. Structure Assembly
1.Steel Framework:
Component: H-Column, H-Beam & C/Z-Purlin
Connection of steel structure method: Welding, Bolted
2.Surface treatment: Painting, Galvanized
3.Roof &Wall: colored steel tiles or colored steel sandwich panel as per
request
4.Doors: Rolling or Pushing, as request
IV. Steel characteristics
1.Environmental protection
2.Higher reliability of steel work
3.Strong quakeproof
4.Higher degree of industrialization
5.Quick to be assembled accurately
6.Larger interior space
Steel arched bridge
Steel truss bridge
Steel Truss Bailey Bridge
Steel Tube Structure Pedestrian Bridge
