320W inventronics EUM series 320 watt led driver constant current PWM dimmable led driver

320W inventronics EUM series 320 watt led driver constant current PWM dimmable led driver

FOB Reference Price: Get Latest Price

≥2 Pieces

US $50.98

≥100 Pieces

US $48.75

≥500 Pieces

US $46.57

≥1000 Pieces

US $44.37

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Inventronics

Model Number:: EUM-320S105DG

Output Frequency:: N/A

Application:: high bay, high mast and roadway

Certification:: CE,TUV,CB,ENEC,KS,PSE

Warranty:: 75Years

Protection:: All-Around Protection: OVP, SCP, OTP

Efficiency:: 93%~94%

PF:: 120Vac:0.99 220Vac:0.96

IP rating:: IP67

Output power:: 320W

Size(mm):: 243x 80 x44.5

Diming:: 1-5V/1-10V/10V PWM/3-Timer

Quick Details

Warranty(Year):: 5-Year

Product Weight（kg）:: 3.08

Place of Origin:: China

Brand Name:: Inventronics

Model Number:: EUM-320S105DG

Output Frequency:: N/A

Application:: high bay, high mast and roadway

Certification:: CE,TUV,CB,ENEC,KS,PSE

Warranty:: 75Years

Protection:: All-Around Protection: OVP, SCP, OTP

Efficiency:: 93%~94%

PF:: 120Vac:0.99 220Vac:0.96

IP rating:: IP67

Output power:: 320W

Size(mm):: 243x 80 x44.5

Diming:: 1-5V/1-10V/10V PWM/3-Timer

More models optional

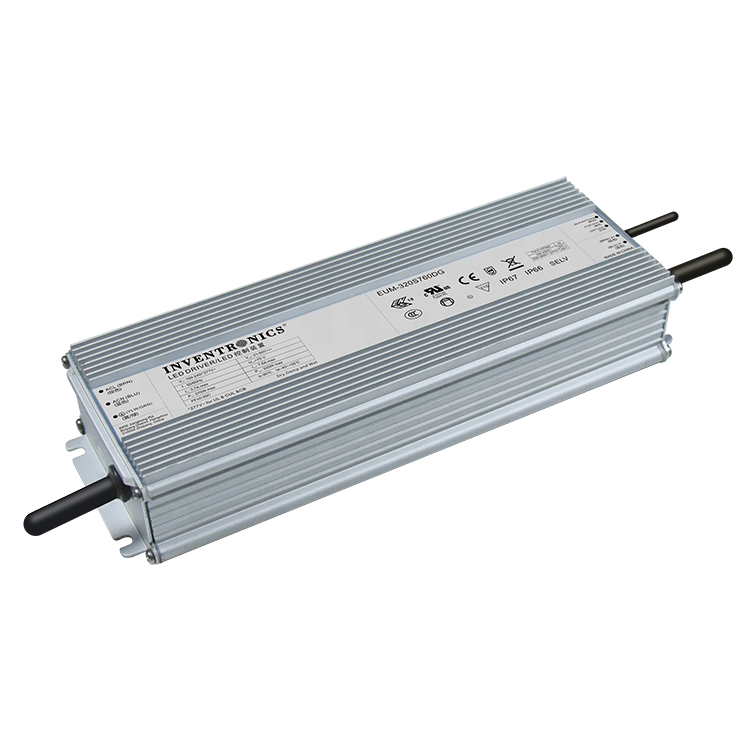

inventronics EUM series 320 watt led driver constant current PWM dimmable led driver

Features:

Compact Metal Case with Excellent Thermal Performance
Full Power at Wide Output Current Range (Constant Power)
Adjustable Output Current (AOC) with Programmability
Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
Output Lumen Compensation
Input Surge Protection: DM 6kV, CM 10kV
All-Around Protection: OVP, SCP, OTP
IP66 / IP67 and UL Dry / Damp / Wet Location
SELV Output
TYPE HL, for Use in a Class I, Division 2 Hazardous(Classified) Location
5 Years Warranty

Description:

The EUM-320SxxxDx series is a 320W, constant-current, programmable and IP66/IP67 LED rated driver that
operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including
high bay, high mast and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation,
protection is provided against input surge, output over voltage, short circuit, and over temperature.

Models:

Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency	Power Factor		Model Number
Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency	120Vac	220Vac	Model Number
70-1050mA	700-1050mA	700mA	90~305Vac 127~300Vdc	153~457 Vdc	320w	94.0%	0.99	0.96	EUM-320S105Dx
105-1500mA	1050-1500mA	1400mA	90~305Vac/ 127~300Vdc	107~305 Vdc	320w	94.0%	0.99	0.96	EUM-320S150Dx
175-2500mA	1750-2500mA	2100mA	90~305 Vac 127~300Vdc	64~183 Vdc	320w	94.0%	0.99	0.96	EUM-320S250Dx
285-5000mA	2850-5000mA	4900mA	90~305 Vac 127~300Vdc	32~112 Vdc	320w	93.0%	0.99	0.96	EUM-320S500Dx (4)
535-7600mA	5350-7600mA	6700mA	90~305 Vac 127~300Vdc	21 ~ 60 Vdc	320w	93.0%	0.99	0.96	EUM-320S760Dx(4)

Notes:

(1) Output current range with constant power at 320W.
(2) Certified input voltage range: UL, FCC 100-277Vac; otherwise 100-240Vac.
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV output.
(5) x = G are UL Recognized, ENEC and CCC, etc. models; x = T are UL Class P models.
