Quick Details
-
Brand Name:
-
YRO
-
Model Number:
-
YRQ4PC-63
-
Rated Current:
-
63A
-
Brand name:
-
YRO
-
Product name:
-

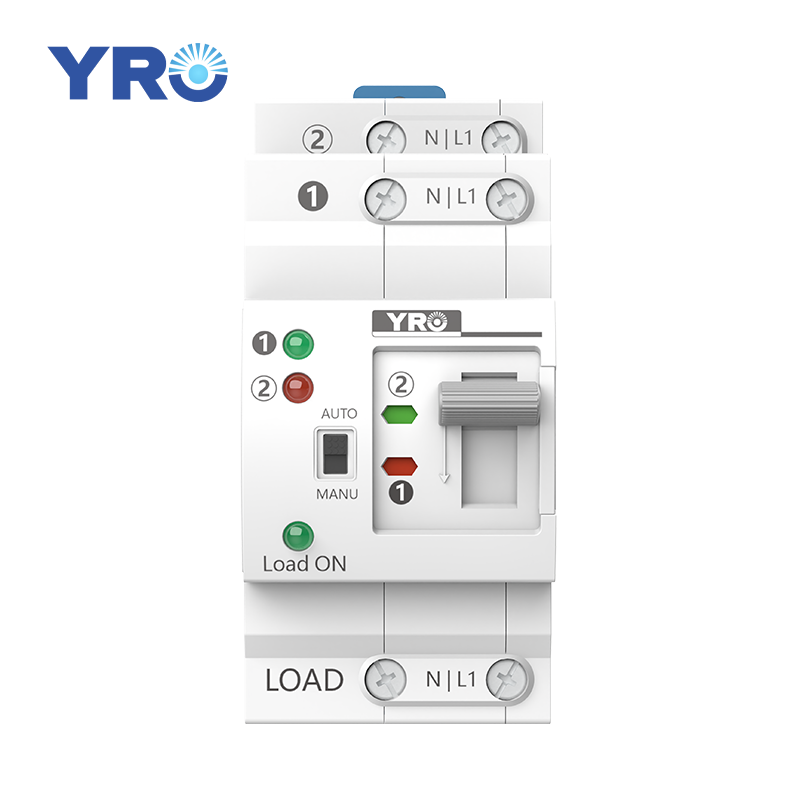

Automatic Transfer Switch
-
Pole:
-
4P
-
Rated voltage:
-
AC220V
-
Current:
-
63A
-
Frequency:
-
50-60Hz
-
Switching Time:
-
50ms
-
Certificate:
-
CE
-
Working Voltage:
-
85%
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China, china
-
Brand Name:
-
YRO
-
Model Number:
-
YRQ4PC-63
-
Rated Current:
-
63A
-
Brand name:
-
YRO
-
Product name:
-
Automatic Transfer Switch
-
Pole:
-
4P
-
Rated voltage:
-
AC220V
-
Current:
-
63A
-
Frequency:
-
50-60Hz
-
Switching Time:
-
50ms
-
Certificate:
-
CE
-
Working Voltage:
-
85%
Specification
|
Type
|
|
YRQ4PC-63
|
|
|
|||
|
Specification current Ie(A)
|
|
32/40/50/63A
|
|
|
|||
|
Rated operating voltage, Ue (V)
|
|
AC 110/230V
|
|
|
|||
|
Rated insulating voltage Ui (V)
|
|
AC 690V
|
|
|
|||
|
Working Voltage
|
|
85%＜Ie＜110%
|
|
|
|||
|
Impulse withstand Voltage
|
|
8kV
|
|
|
|||
|
Frequency
|
|
50-60Hz
|
|
|
|||
|
Pole No.
|
|
2P/4P
|
|
|
|||
|
Switching Time
|
|
50ms
|
|
|
|||
|
Usage Category
|
|
AC-31B
|
|
|
|||
|
Mechanical life
|
|
8000times
|
|
|
|||
|
Electrical life
|
|
1500times
|
|
|
|||
|
Electric equipment grade
|
|
PC Class
|
|
|
|||
|
keyword
|
|
AC ATS automatic transfer switch
|
|
|
|||
