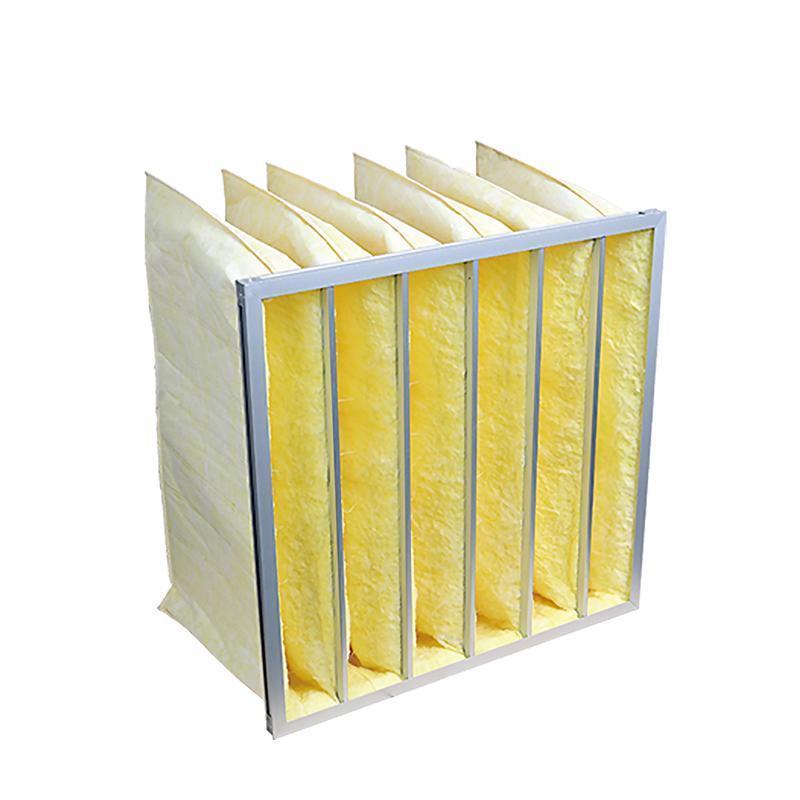

Quick Details
-
Brand Name:
-
Jieyuan
-
Dimension(L*W*H):
-
59.2*59.2*40
-
Weight:
-
1.5 KG
-
structure:
-
bag filter
-
Filter level:
-
Medium Filter
-
filter material:
-
Glass Fiber
Quick Details
-
Core Components:
-
Filter
-
Efficiency:
-
Medium Filter
-
Place of Origin:
-
China
-
Brand Name:
-
Jieyuan
-
Dimension(L*W*H):
-
59.2*59.2*40
-
Weight:
-
1.5 KG
-
structure:
-
bag filter
-
Filter level:
-
Medium Filter
-
filter material:
-
Glass Fiber
|
Class
|
F5 F6 F7 F8 F9
|
|
Filter Material
|
Glass fiber
|
|
Frame Material
|
Galvanized frame/ Aluminum Frame
|
|
Filtration Grade
|
Medium Filter
|
|
Color
|
White /Green /Orange /Yellow
|
|
Max. Temp.
|
180℃
|
|
Min. Humidity
|
80%RH
|
|
Application
|
Bag Filters for Air conditioning system, AHU, industrial filtration(semi-conductivity, photoelectron, pharmaceutical), painting
booth,operating room.
|
|
Model
|
Nominal Size
WxHxD(inch)
|
Actual Size
WxHxD(mm)
|
Rated airflow
(m³/h)
|
Initial resistance
(pa)
|
Efficiency
(Colorimetric method)
|
|||||
|
F6 F7 F8 F9
|
24 x 24 x 20
|
595x595x500- 6P
|
3000
|
≤60-120
|
40-95%
|
|||||
|
F6 F7 F8 F9
|
24 x 11-3/5 x 20
|
595x295x500-3P
|
1500
|
|
|
|||||
|
F6 F7 F8 F9
|
24 x 19-1/2 x 20
|
595x495x500-5P
|
2500
|
|
|
|||||
|
F6 F7 F8 F9
|
19-1/2 x 19-1/2 x 20
|
595x595x381-6P
|
2500
|
|
|
|||||
|
F6 F7 F8 F9
|
24 x 24 x 20
|
595x595x500-8P
|
4000
|
|
|
|||||
|
Special size can be customized according to customer's request
|
|
|
|
|
|
|||||
A:Are you really a manufacturing company or a trading company?
Q:We are indeed a filter element manufacturer with 17 years of experience. We have long-term cooperative relationships with AOC, TSMC,:Formosa Plastic Group and many large electronics industry and semiconductor industry in China.
A:Can the product be customized?
Q:Yes, both the product and the packaging can be customized.
A: How could I get a sample?
Q:Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
A: What Payment term you are running?
Q:30% deposit paid in advance,70% of the balance is paid before delivery.
