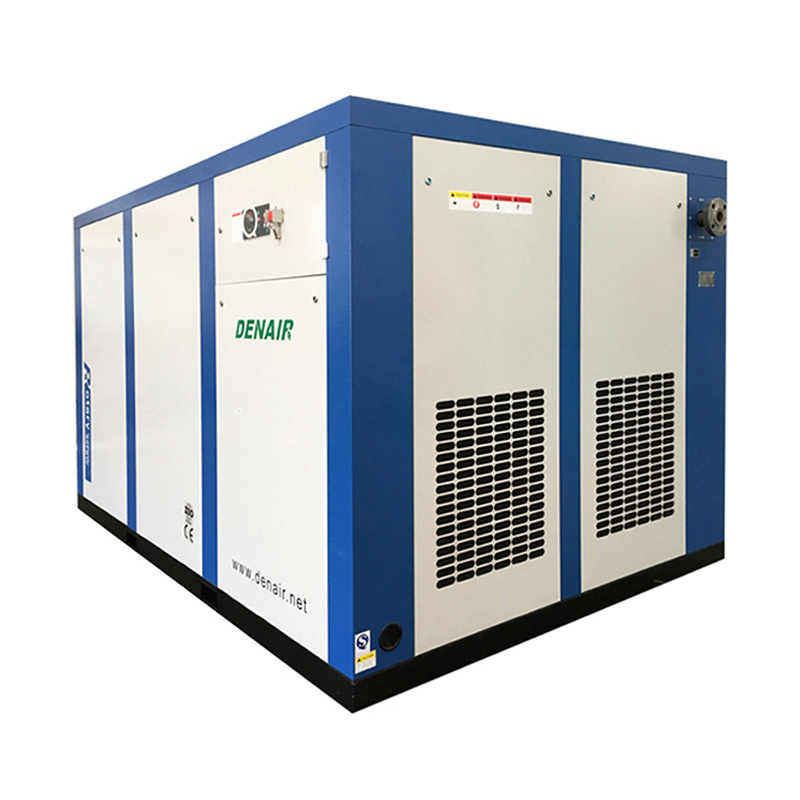

400 psi 2 Stage High Pressure Screw Air Compressor Supplier

400 psi 2 Stage High Pressure Screw Air Compressor Supplier

FOB Reference Price: Get Latest Price

≥1 Sets

US $58100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 2800*1950*2000 mm

Weight:: 2300-5500kg, 2500-5500kg

Product Name:: 400 psi 2 Stage High Pressure Screw Air Compressor

Air End:: DENAIR

Motor Power:: 150-375 hp

Compression Stage:: 2 Stage

Frequency:: 50/60 HZ

Protection Grade:: IP54/IP55

Air Free Delivery:: 10-32m3/min

After Warranty Service:: Video technical support, Online support

Local Service Location:: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan

After-sales Service Provided:: Field maintenance and repair service

Certification:: ISO, BV, GC etc

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: DENAIR

Voltage:: 220V 380V 400V 416V 440V 600V etc, Customers' Requirements

Dimension(L*W*H):: 2800*1950*2000 mm

Weight:: 2300-5500kg, 2500-5500kg

Product Name:: 400 psi 2 Stage High Pressure Screw Air Compressor

Air End:: DENAIR

Motor Power:: 150-375 hp

Compression Stage:: 2 Stage

Frequency:: 50/60 HZ

Protection Grade:: IP54/IP55

Air Free Delivery:: 10-32m3/min

After Warranty Service:: Video technical support, Online support

Local Service Location:: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan

After-sales Service Provided:: Field maintenance and repair service

Certification:: ISO, BV, GC etc

400 psi 2 Stage High Pressure Screw Air Compressor Supplierr

1.Superior design with 64 types of technology patent , two stages compression, realize maximum energy saving and lowest noise level.
2.State-of-the-art screw element, original Germany DENAIR air end, advanced SAP profile design, superior Sweden SKF element bearings .
3.Adopts world-renowned components , such as Schneider electronics from France, Mann filters from Germany, Danfoss pressure sensor from Denmark, etc. contribute to guarantee the compressor longer service life.
4. Stainless steel oil pipe , high temperature resistant (400℃=752℉) and low temperature resistant (-270℃=-518℉), high pressure resistant.Ultra-long life (80 years), completely leak free and maintenance free.

5.Conform to CE, ISO9001 and energy saving certification,etc .

Technical Parameters

Model	Maxinmum working pressure		Capacity(FAD)*								Power	Dimensions (mm)	Weight
			50 HZ				60 HZ
			Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.
	bar(g)	psig	m³/min		cfm		m³/min		cfm		kw	LWH	kg
DVAH-90-16	16	232	3.73	9.24	131	326	4.28	8.57	151	303	90	280016001700	2500
DVAH-90-18	18	261	4.29	10.73	151	379	5.39	10.78	190	381	90	280016001700	2500
DVAH-90-20	20	290	4.24	10.61	150	375	5.33	10.67	188	377	90	280016001700	2500
DVAH-110-16	16	232	5.32	13.3	188	470	5.81	11.62	205	410	110	280016001700	3200
DVAH-110-30	30	435	4.95	12.38	175	437	5.15	10.3	182	364	110	280016001700	3200
DVAH-110-40	40	580	4.21	10.53	149	372	5.6	11.2	198	395	110	280016001700	3200
DVAH-132-16	16	232	5.35	13.37	189	472	7.25	14.5	256	512	132	280016001700	3950
DVAH-132-30	30	435	4.97	12.43	176	439	5.25	10.5	185	371	132	280016001700	3950
DVAH-132-35	35	508	4.26	10.64	150	376	5.2	10.4	184	367	132	280016001700	3950
DVAH-132-40	40	580	4.22	10.56	149	373	5.15	10.3	182	364	132	280016001700	3950
DVAH-160-16	16	232	6.17	15.43	218	545	9.39	18.78	332	663	160	280016002000	5000
DVAH-160-25	25	363	5.89	14.73	208	520	7.99	15.97	282	564	160	280016002000	5000
DVAH-185-16	16	232	6.55	16.37	231	578	10.3	20.6	364	727	185	280016002000	5500
DVAH-185-20	20	290	7.2	18.01	254	636	8.81	17.62	311	622	185	280016002000	5500
DVAH-185-25	25	363	7.06	17.65	249	623	8.73	17.45	308	616	185	280016002000	5500
DVAH-200-16	16	232	8.68	21.71	307	766	11.94	23.88	422	843	200	330020002100	6000
DVAH-200-25	25	363	8.84	22.09	312	780	9.1	18.19	321	642	200	330020002100	6000
DVAH-220-16	16	232	9.75	24.37	344	860	12.17	24.34	430	859	220	330020002100	6300
DVAH-220-18	18	261	12.13	30.32	428	1070	11.84	23.67	418	836	220	330020002100	6300
DVAH-220-25	25	363	9.6	24.01	339	848	10.47	20.94	370	739	220	330020002100	6300
DVAH-250-16	16	232	10.7	26.75	378	944	14.07	28.13	497	993	250	350022002100	6500
DVAH-250-18	18	261	12.13	30.32	428	1070	14	27.99	494	988	250	350022002100	6500
DVAH-250-20	20	290	12.07	30.16	426	1065	12.95	25.89	457	914	250	350022002100	6500
DVAH-250-25	25	363	10.45	26.13	369	923	12.45	24.9	440	879	250	350022002100	6500
DVAH-280-16	16	232	12.55	31.38	443	1108	16.51	33.02	583	1166	280	350022002100	7000
DVAH-280-18	18	261	14.99	37.47	529	1323	14.84	29.68	524	1048	280	350022002100	7000
DVAH-280-20	20	290	14.84	37.09	524	1310	14.69	29.38	519	1037	280	350022002100	7000
DVAH-280-25	25	363	12.37	30.93	437	1092	12.69	25.38	448	896	280	350022002100	7000
) FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20 °C ) Noise level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; tolerance: ± 3 dB(A) The products in this table are only some models*
