Features

(1) Support H.264/AVC High Profile Level4.2

(2) Up to 1920x1080P video format

(3) Support analog CVBS/PrPbY, SDI, video inputting interfaces

(4) 10/100/1000BASE-T with Auto-negotiation bite rate Ethernet output

(5) Zero jitter on IP output

(6) Zero jitter generation on TS over IP output

(7) Setting program and supplier name through internet

(8) Both local or remote network management and online update

(9) 10/100M Base-Tx management interface

(10)Support brightness, color saturation, contrast and color adjustment

(11)Support 4 channels encode

Description

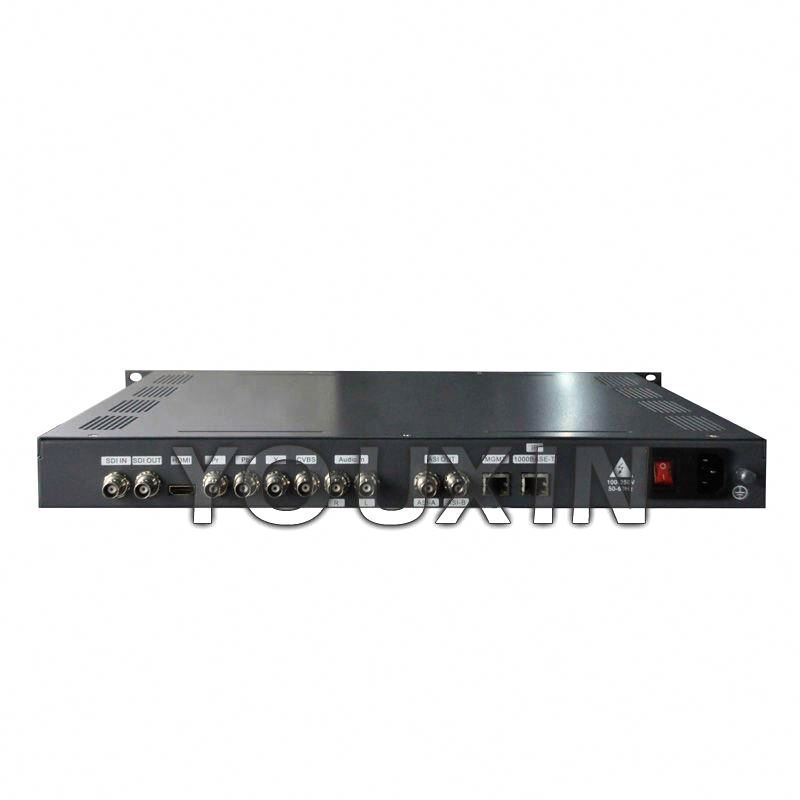

WDE-H420 H.264 HD encoder is a new generation professional digital TV encoder which supports up to 1920x1080p video format and equipped with GbE TS over IP output. WDE-H420 is designed and manufactured by Ningbo Youxin Company according to ISO/ICE 14496-10, ITU-T H.264, IEEE802.3 and related international standards. It is a high quality and cost-effective product for H.264 HD video/audio encoding application. WDE-H420 supports SDI, video input formats, has two DVB-ASI output ports and one GbE port of TS over IP. The user can manage the device easily through the 100M Ethernet port.
