Quick Details
-
Voltage:
-
380V/220V 3 phase
-
Rated Power:
-
6-21KW
-
Dimension(L*W*H):
-
4200*2280*1600mm
-
Weight (KG):
-
1200
-
Year:
-
2019
-
Name:
-

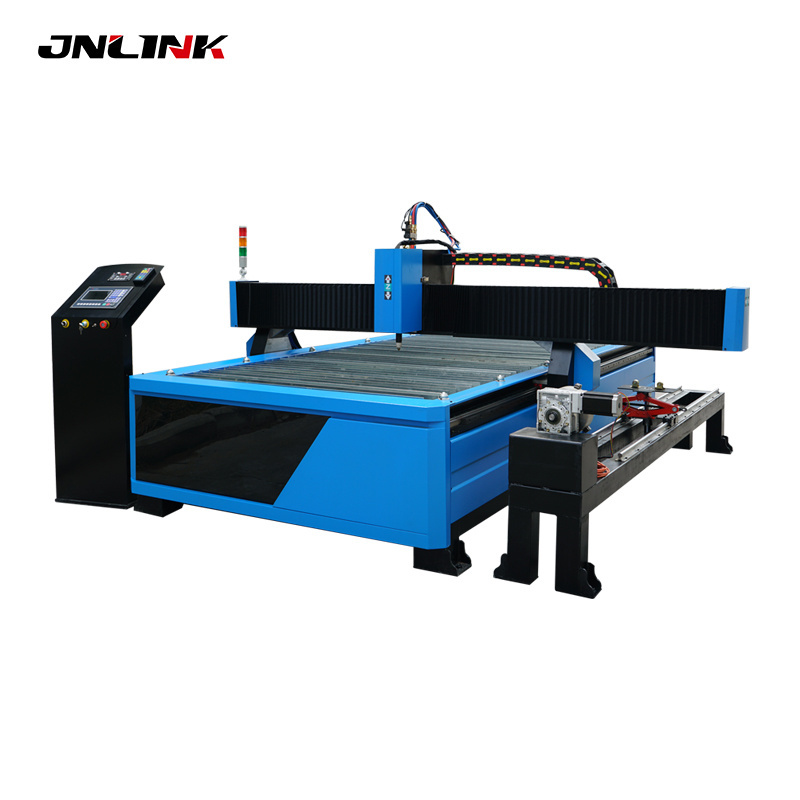

CNC Plasma Cutting Machine With THC for Steel
-
Power supplier:
-
China Top Huayuan power supply
-
Controlling system:
-
Beijing Start Torch Heigth Controller
-
Software:
-
Original FastCAM software
-
Motor:
-
Stepper motor and driver
-
Transmission:
-
Gear transmission
-
Rail:
-
Hiwin square rails
-
Net weight:
-
1200kg
-
Working area:
-
1500*3000*150mm
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JNLINK
-
Model Number:
-
LXP
-
Voltage:
-
380V/220V 3 phase
-
Rated Power:
-
6-21KW
-
Dimension(L*W*H):
-
4200*2280*1600mm
-
Weight (KG):
-
1200
-
Year:
-
2019
-
Name:
-
CNC Plasma Cutting Machine With THC for Steel
-
Power supplier:
-
China Top Huayuan power supply
-
Controlling system:
-
Beijing Start Torch Heigth Controller
-
Software:
-
Original FastCAM software
-
Motor:
-
Stepper motor and driver
-
Transmission:
-
Gear transmission
-
Rail:
-
Hiwin square rails
-
Net weight:
-
1200kg
-
Working area:
-
1500*3000*150mm
-
Certification:
-
CE ISO
table DIY cnc plasma Cutter/plasma cutting table
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.
Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.
2). The gantry structure, Y axis used dual-motor dual-driven system, X, Y, Z axis all use dual-straight rail
that make the machine driving smoothly with high-precision.
3). Aiming at cutting three dimension LED character, trough metal panels and floor cutting,the accuracy can
reach good indicators. Equipped with other advertise equipment (blister machine, engraving machine),forming the advertising word processing pipeline. Completely solve the traditional manual processing methods. Improve the efficiency of several times.
4). Cutting mouth is small, tidy,and avoid a second dressing processing.
5). It can apply to iron shee the aluminium sheet, the galvanized sheet, hundred steel plates, metal plates and so on.
6). High cutting speed, high precision, and low cost.
7). The numerical control system disposes high, the automatic striking arc, the performance is stable.
8). Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document, also can change software to read AUTOCAD softwares produce DXF form documents.
| No. | Description |
LXP1530(Optional:LXP1015/LXP1212/LXP1325/LXP1540/LXP1550/LXP1560/ LXP2030/LXP2040/LXP2050/LXP2060,other size can be customized) |
| 1 | Working Size |
1500*3000mm(Optional:1000*1500/1200*1200/1300*2500/1500*4000/ 1500*5000/1500*6000/2000*3000/2000*4000/1500*5000/1500*6000/ 2000*5000/2000*6000mm,other size can be customized) |
| 2 | Z Axis Clearance | 150mm(200 And Higher Is Optional) |
| 3 | Table Type | Knife table (Teeth table And Water table can be optional) |
| 4 | Transmission System | Rack Pinion And Hiwin Linear Rails For X/Y |
| 5 | Driving System | Stepper Motor And Drivers(Servp motor is optional) |
| 6 | Max. Cutting Speed |
12000mm/Min(different configuration and different material and thickness speed is different) |
| 7 | Max. Travelling Speed | 30000mm/Min(different configuration speed is different) |
| 8 | Working Voltage | 380V/3ph(220V/3ph is optional) |
| 9 | Plasma Generator | Huayuan China and USA power as your requirements |
| 10 | Arc Mode | Non-Contact Arc, Arc Pressure Adjuster |
| 11 | Output Current | 63/100/120A/160A/200A China(45/65/85/105/125/200A USA) |
| 12 | Max. Cutting Thickness | 6/15/18/20/30mm |
| 13 | Operating System | Starfire Controller/Start Controller/JiaoDa fangling controller |
| 14 | Working Material |
Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal |
