Quick Details
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Intel
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
ITX-H610T
-
CPU:
-
Supports Intel 12th Generation LGA1700 Processor
-
Memory:
-
2*SO-DIMM DDR4, Max.64GB
-
Storage:
-
2*SATA3.0 Slot 1*M.2 Key M
-
Audio:
-
Realtek ALC662
-
Graphics cards:
-
Intel UHD Graphics 730/770
-
Display:
-
1*HDMI, 1*VGA/DP(Optional), 1*LVDS
-
Operating System:
-
Win 10/Linux
-
Dimension:
-
170*170mm
-
Power Supply:
-
12-19V
Quick Details
-
Maximum Ram Capacity:
-
64 GB
-
Application:
-
Desktop
-
Form Factor:
-
Mini-ITX
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Intel
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
ITX-H610T
-
CPU:
-
Supports Intel 12th Generation LGA1700 Processor
-
Memory:
-
2*SO-DIMM DDR4, Max.64GB
-
Storage:
-
2*SATA3.0 Slot 1*M.2 Key M
-
Audio:
-
Realtek ALC662
-
Graphics cards:
-
Intel UHD Graphics 730/770
-
Display:
-
1*HDMI, 1*VGA/DP(Optional), 1*LVDS
-
Operating System:
-
Win 10/Linux
-
Dimension:
-
170*170mm
-
Power Supply:
-
12-19V

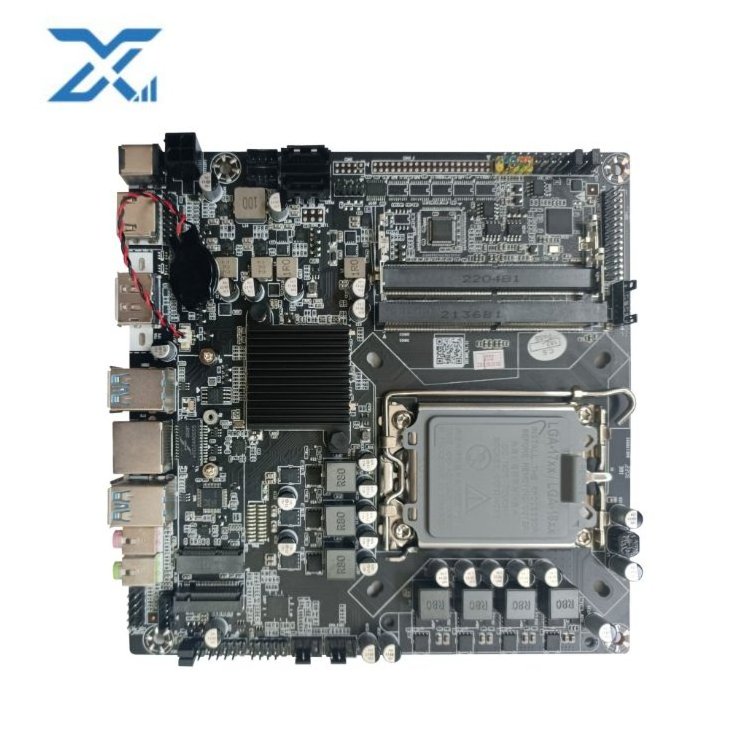

Gaming Desktop Most Popular vending machine mainboard 12th gen motherboard
Spotlight Features:
1. Supports Intel 12thGeneration LGA1700Processor,TDP 65W；
2. Intel UHD Graphics730/770；
3. With VGA/DP,HDMI,LVDS,SupportsTriple Display；
4. DualChannel DDR4Slots，Max.64G DDR4 3200MT/s；
5. With 1*M.2 Key ESlot，Supports WiFi+BTModule；
6. With 1*M.2 Key MSlot，Supports M.2 2242/2260/2280 PCIESSD；
7. Realtek ALC662 5.1 CHs HDA Codec，With Line_Out/Mic_In and Amplifier；
8. Gigabit LAN,10/100/1000 Base-Tx Gbe Compatible；
2. Intel UHD Graphics730/770；
3. With VGA/DP,HDMI,LVDS,SupportsTriple Display；
4. DualChannel DDR4Slots，Max.64G DDR4 3200MT/s；
5. With 1*M.2 Key ESlot，Supports WiFi+BTModule；
6. With 1*M.2 Key MSlot，Supports M.2 2242/2260/2280 PCIESSD；
7. Realtek ALC662 5.1 CHs HDA Codec，With Line_Out/Mic_In and Amplifier；
8. Gigabit LAN,10/100/1000 Base-Tx Gbe Compatible；
Products Description
|
MOQ
|
1piece
|
|
CPU
|
Supports Intel 12th Generation LGA1700 Processor,TDP 65W
|
|
RAM
|
2*SO-DIMM DDR4, Max.64GB
|
|
SATA
|
2*SATA3.0 Slot
1*M.2 Key M |
|
Display
|
1*HDMI
1*VGA/DP（Optional） 1*LVDS |
|
Expansion Slot
|
1*M.2 Key E Slot
|
|
Rear Panel I/O
|
1*DC_IN
1*VGA/DP 1*HDMI 4*USB 3.0 1*LAN 1*Line_Out 1*MIC_In |
|
Internal I/O
|
1*F_USB（Support 2*USB 2.0 Ports Via internal Header）
1*F_Panel 1*F_Audio 6*COM (standard is 1*com, optional 6*com) 2*SATA 3.0/2*SATA_PWR 1*CPU_FAN PWR（4Pins）/1*SYS_FAN PWR（4Pins） 1*Speaker 1*LVDS/1*INVERT/1*LVDS_PWR 2*M.2 Slots 1*Auto_on |
|
|
Pls contact us for more details
|
